HuiNuo TM3000Pro/27 Automatic Film Applicator bar drawdown blade coater

With bar and drawdown blade two coating methods, coating speed 1~ 300mm/s stepless speed regulation, film thickness control accuracy up to +/- 0.001mm, clamshell drawdown blade design for easy cleaning, servo motor drive stable operation.

Brand

SKU: NB050521

HuiNuo

Model

TM3000pro/27

Price

$ 3024.00

Promotion

Service

The delivery and service By NBchao.Com

Get Quote

HuiNuo shop

Information

Datasheet RFQ Contract Video Catalog Manual

What else did others buy

Genuinegoods

HuiNuo TM3000pro/27 Automatic Film ApplicatorOverview
Specifications
Comments
FAQs

TM3000pro/27

Automatic Film Applicator

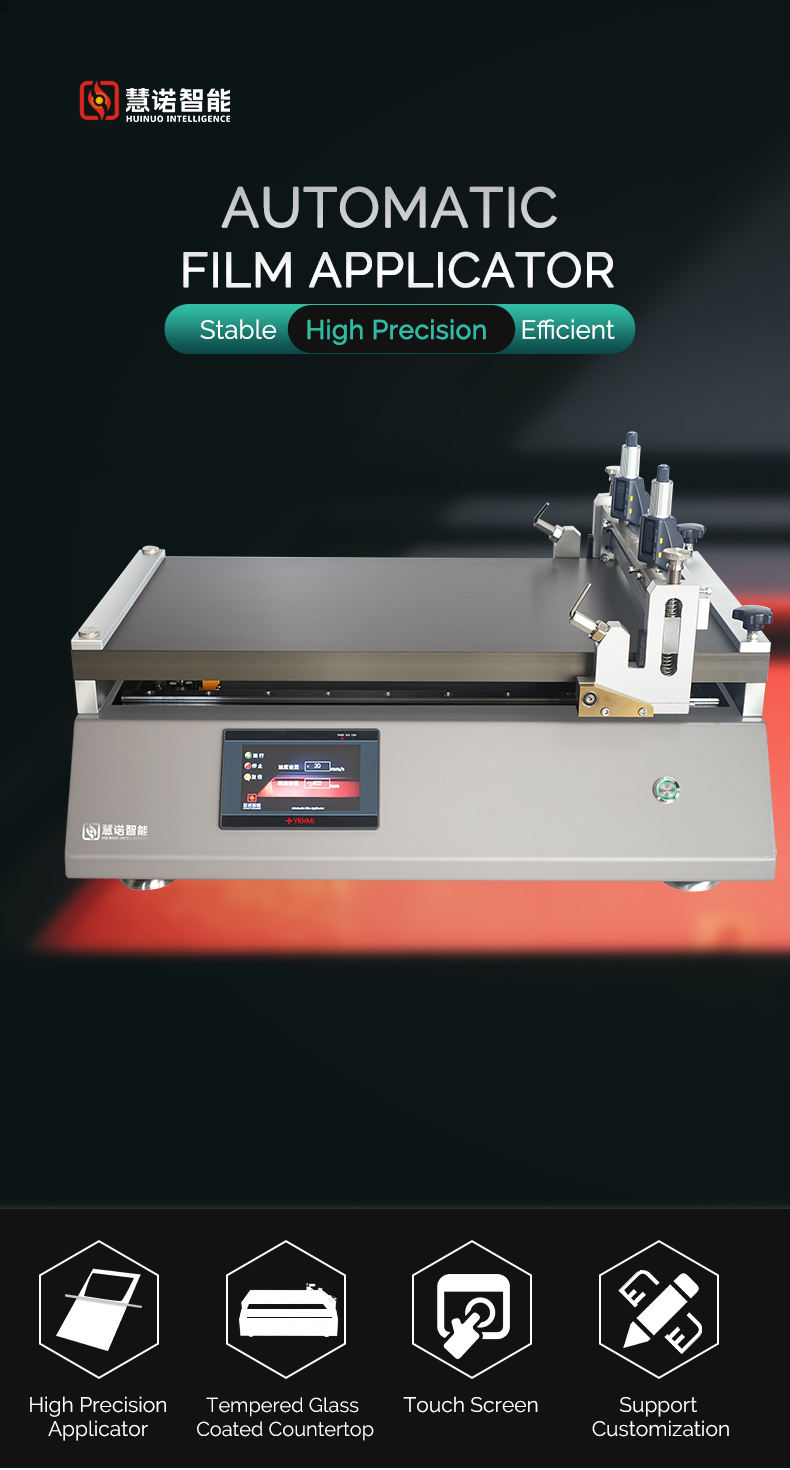

Huinuo TM3000pro automatic coating machine details Figure 1

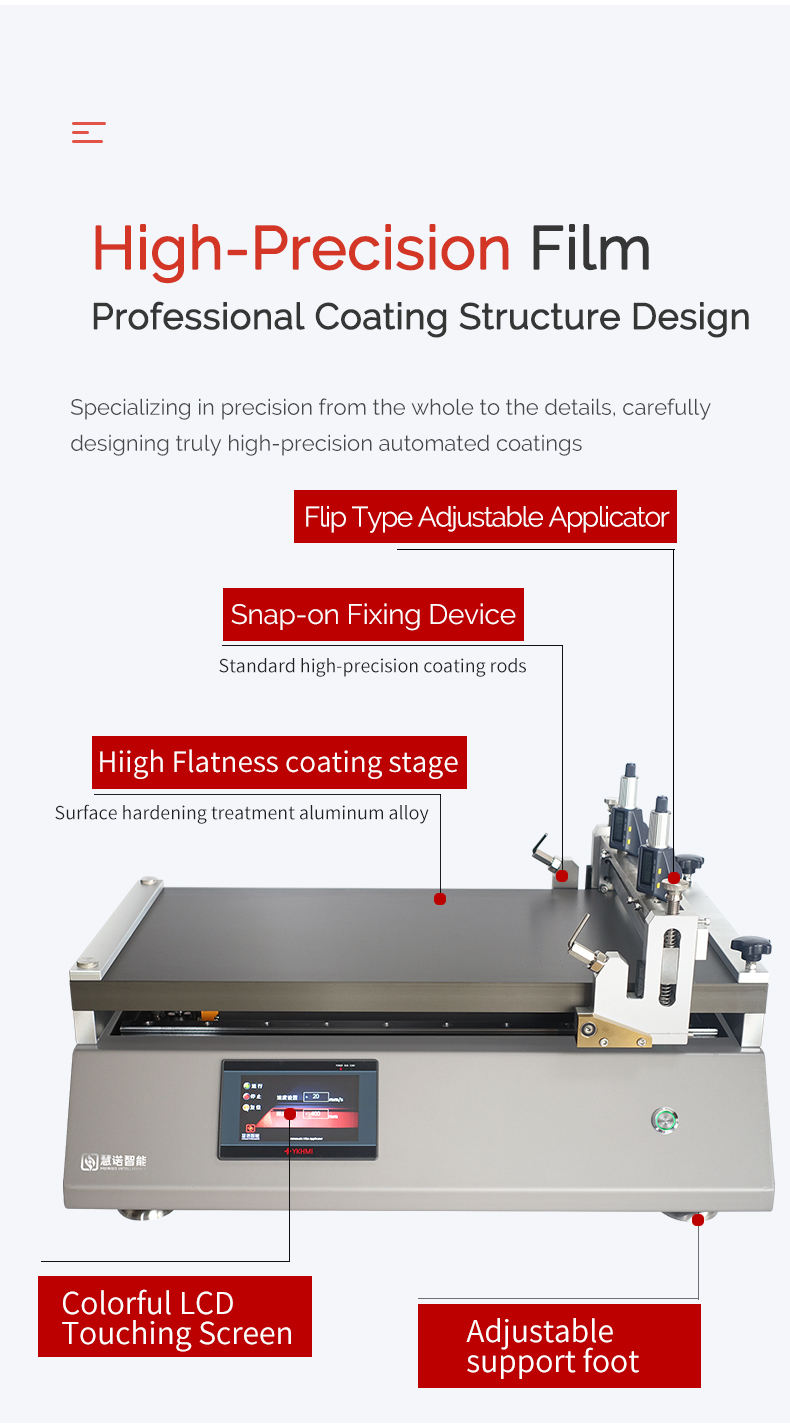

Huinuo TM3000pro automatic coating machine details Figure 2

Huinuo TM3000pro automatic coating machine details Figure 3

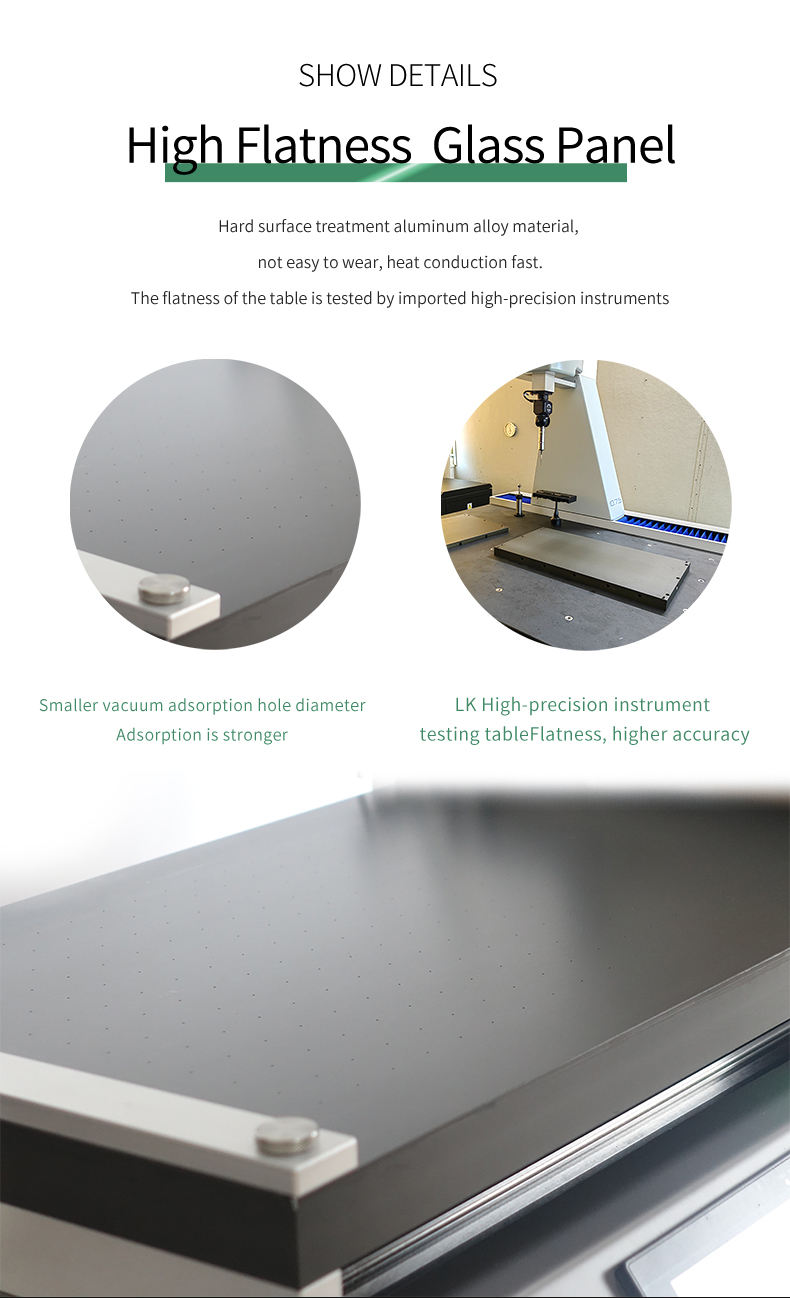

Huinuo TM3000pro automatic coating machine details Figure 4

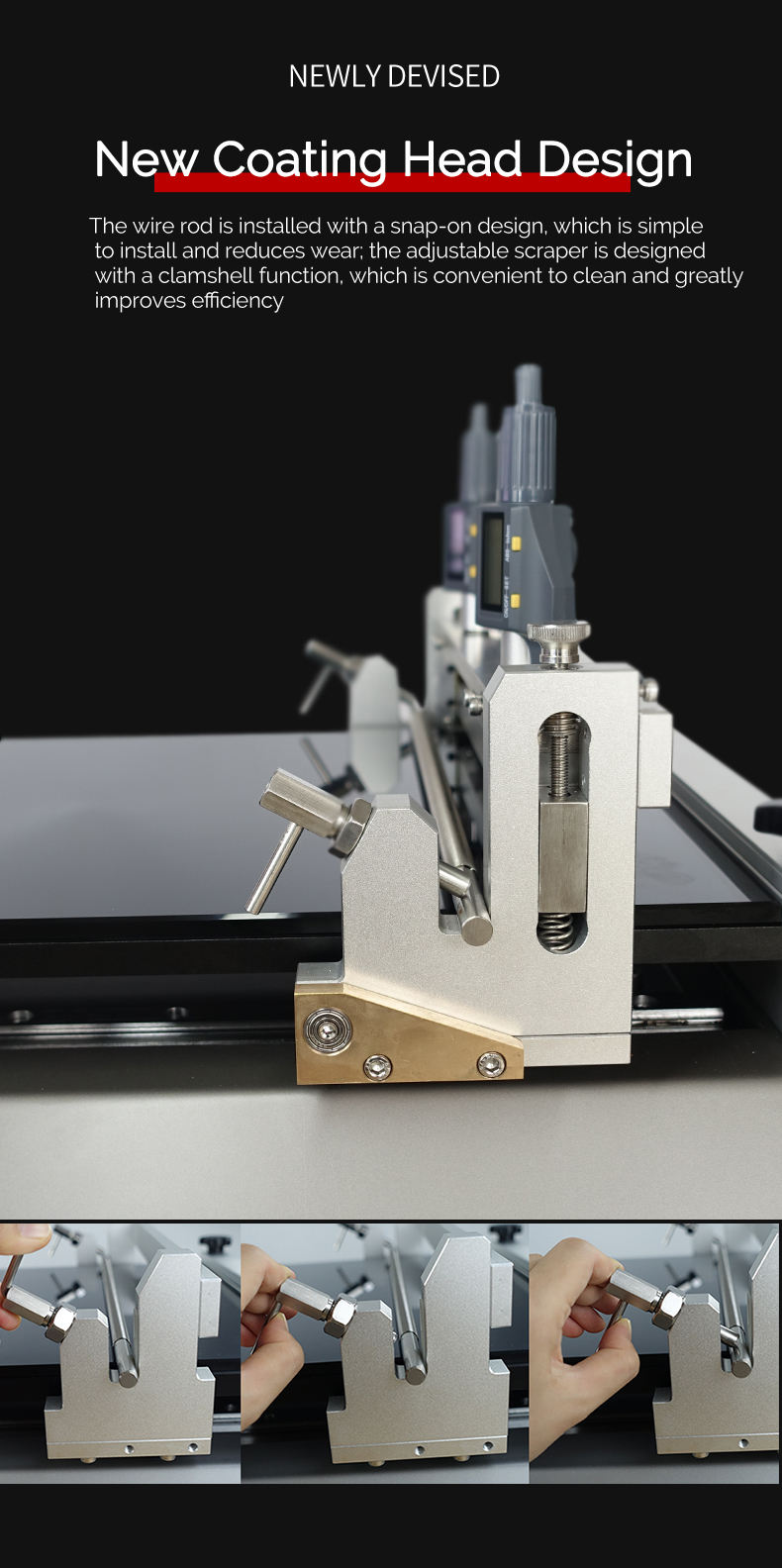

Huinuo TM3000pro automatic coating machine details Figure 5

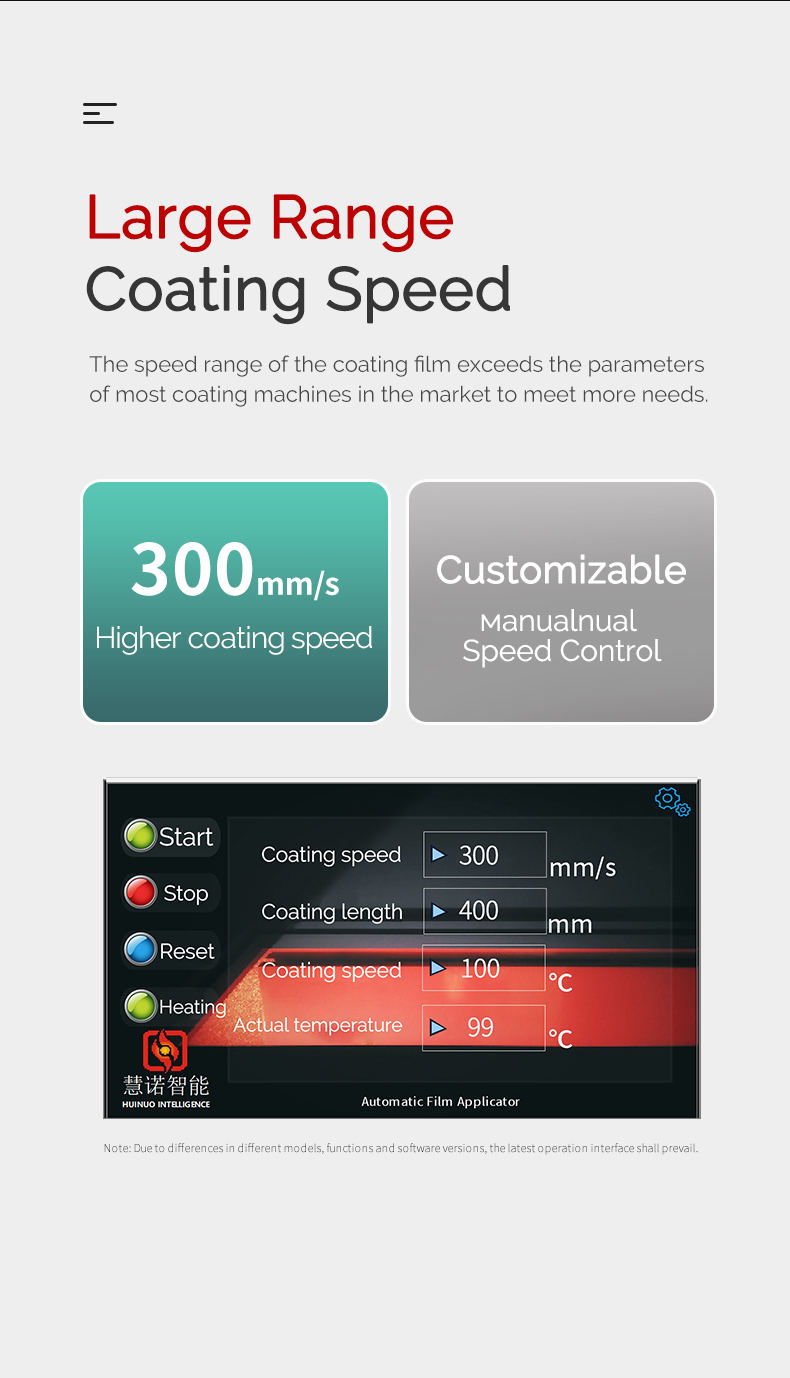

Huinuo TM3000pro automatic film coating machine details Figure 6

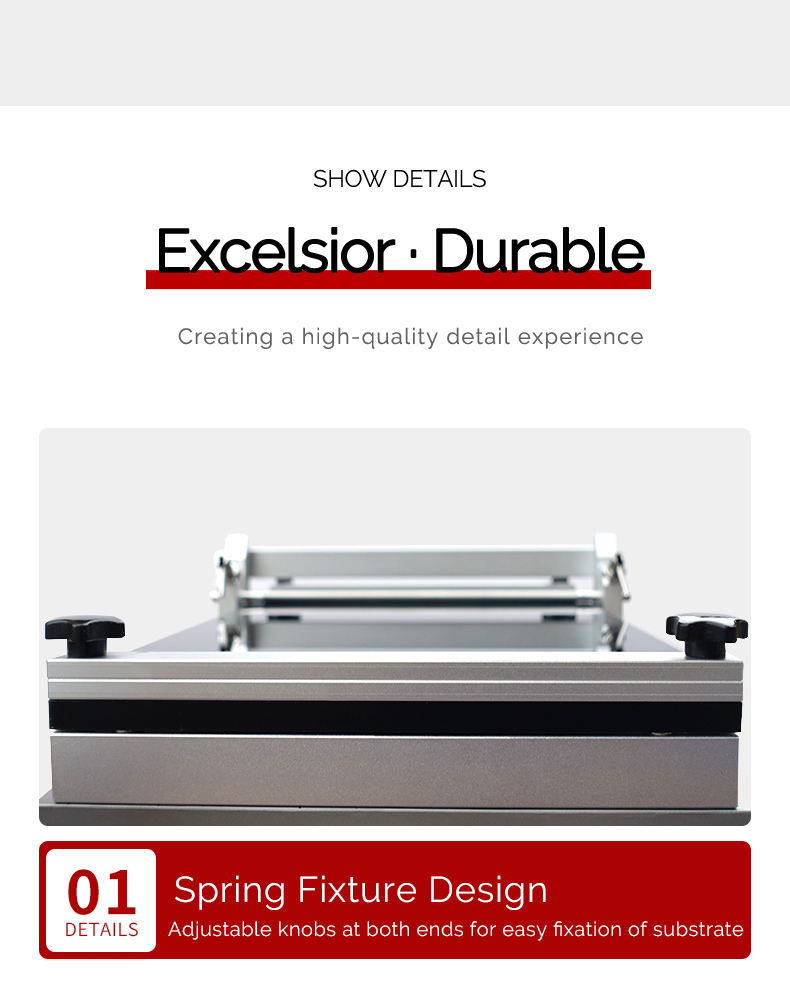

Huinuo TM3000pro automatic film coating machine details Figure 7

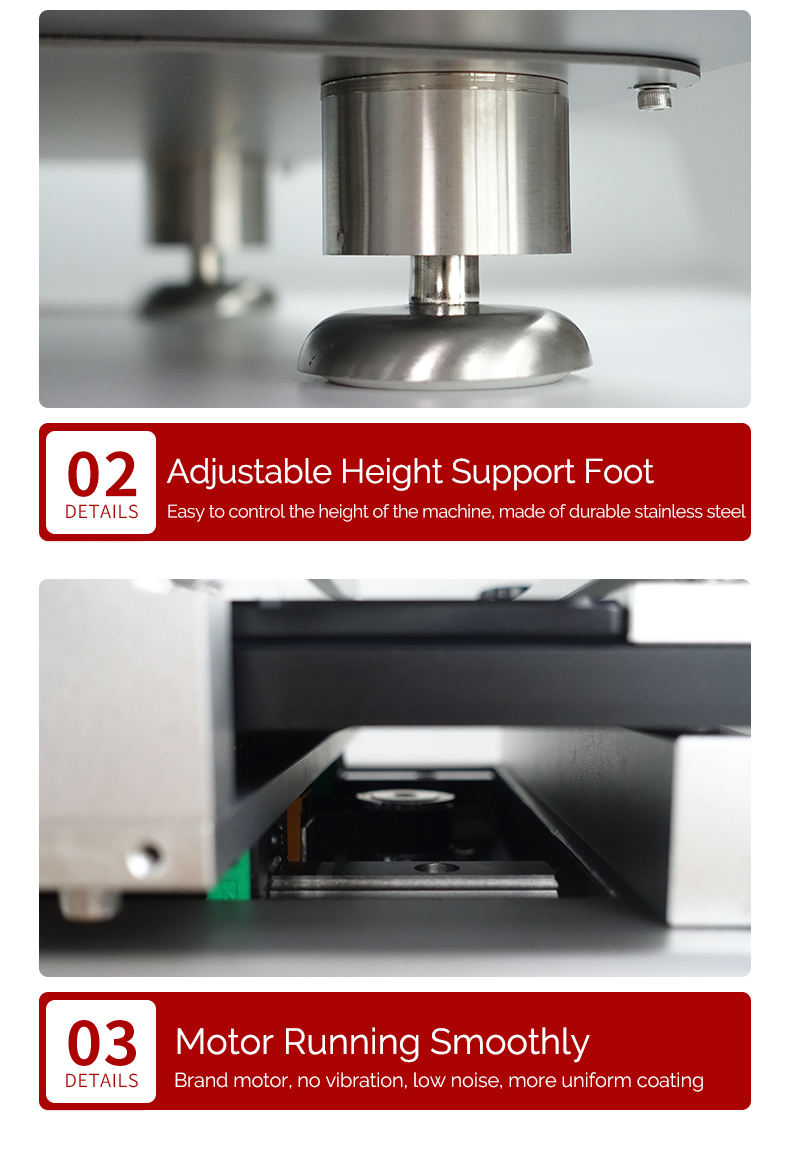

Huinuo TM3000pro automatic coating machine details Figure 8

Huinuo TM3000pro automatic coating machine details Figure 9

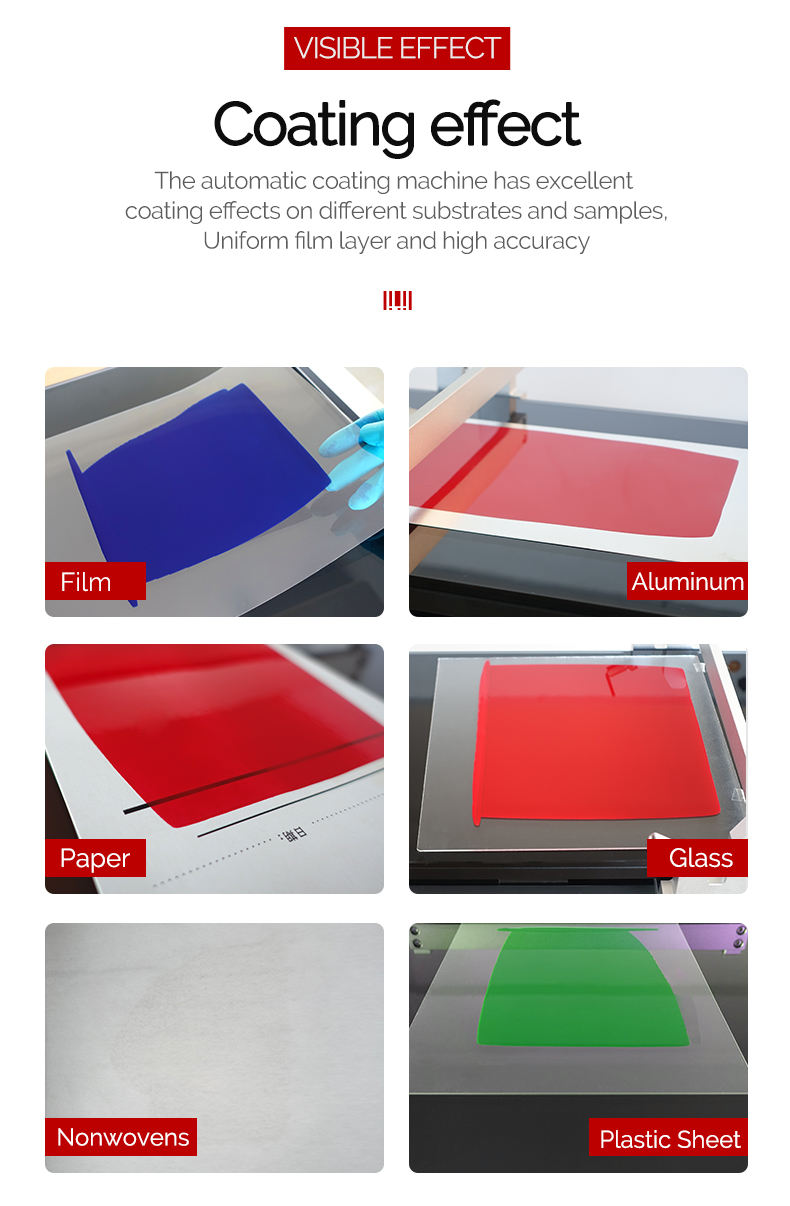

Huinuo TM3000pro automatic coating machine details Figure 10

Huinuo TM3000pro automatic coating machine details Figure 11

Huinuo TM3000pro automatic film coating machine details Figure 12

Huinuo TM3000pro automatic coating machine details Figure 13

Product Overview:

Automatic film coating machine is a device used to coat film in the laboratory, replacing manual film coating, automating the film coating, and improving the accuracy and efficiency of film coating. The working principle of the experimental automatic film coating machine is to evenly coat the sample on the substrate by controlling the coating head and coating parameters, forming the desired film.

This coating machine is a wire rod scraper coating machine, with two functions of wire rod coating and scraper coating, the new wire rod installation method and clamshell scraper head greatly improve the coating efficiency, easy to clean, with speed control and coating length adjustment function, suitable for high-precision automatic coating of film in the laboratory, in university research institutes, new materials, lithium batteries, glue, resin and other laboratories for film proofing.

Product Use:

The film coating machine is suitable for coating and sample coating of coatings, inks, paints, pastes, lithium batteries, pressure-sensitive adhesives, resins, glues, polymer materials, pharmaceuticals, etc., and can be scraped on glass, cardboard, and fabrics.

Product features:

1) Hard aluminum alloy plate

2) Big brand differential adjuster, high film thickness control accuracy

3) Clamshell scraper coating head, easy to clean

4) Equipped with high-precision Film Applicator, the original imported wire rod coating film is uniform and high accuracy

5) Touch screen control panel, easy to operate

6) The coating length and coating speed can be adjusted freely

HuiNuo TM3000pro/27 Automatic Film ApplicatorSpecifications

LIST	VALUE
Coating Method	Bar + drawdown blade
Coating Speed	1~ 300Mm/s stepless speed regulation (can be customized)
Substrate clamping method	fixture
Coating table material	Carbide aluminum alloy plate (Glass plate optional)
Coating table size	600*300mm
Effective coating Area	400 * 300Mm (can be customized)
Meyer rod coating thickness Range	Different bar numbers have different thicknesses, with high-precision imported bars
Meyer rod coating Accuracy	±0.001mm
Drawdown blade Coating thickness range	0.1~ 10Mm (clamshell design is easy to clean)
Applicable substrate thickness range	≤ 20mm (drawdown blade bracket height, non-standard customized parameters)
Drawdown blade material	Die steel
Drawdown blade application width	300mm
Drawdown blade Spreader Accuracy	±0.003mm
Drive motor	Servo motor
Power	600w
Operating language	Chinese (can be customized in English)
Display	Color LCD touch screen
Host Power Supply	220V/50HZ (110V/60HZ can be customized)
Dimension	658438205mm
optional feature	Heating Vacuum chuck

HuiNuo TM3000pro/27 Automatic Film Applicator Packing list

Host X1, manual X1, fixture X1, drawdown blade x1, import bar X1, certificate X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

Can This Film Applicator Adjust Spreader Parameters?

[A]

Yes, TM3000Pro/27 supports stepless speed regulation of 1-300mm/s, and the application length can be adjusted freely. Optional heating and Vacuum chuck functions are available to meet the Spreader needs of different materials. The drawdown blade Spreader thickness range is 0.1-10 mm, suitable for a variety of substrates, and the functional configuration is flexible and comprehensive.

[Q]

Which instrument is recommended for film preparation in the Lithium Battery Materials Laboratory?

[A]

It is recommended to use HuiNuo TM3000pro/27 Automatic Film Applicator. The instrument is specially designed for high-precision automatic film in the laboratory, supports bar and drawdown blade dual Spreader mode, the coating speed is 1~ 300mm/s stepless speed regulation, the thickness range of drawdown blade Spreader is 0.1~ 10mm (accuracy +/- 0.003mm), which can precisely control the Spreader uniformity of lithium battery electrode slurry; the clamshell drawdown blade head and cemented aluminum alloy coating table are easy to clean and can avoid material cross-contamination; the optional heating function can adapt to the special process requirements of lithium battery Spreader.

[Q]

Which Film Applicators have the dual advantages of clamshell drawdown blades and original imported bars?

[A]

HuiNuo TM3000Pro/27 Automatic Film Applicator is recommended. It adopts a clamshell drawdown blade Spreader head design, which can be quickly opened and cleaned to avoid residues; at the same time, it is equipped with the original imported high-precision bar, and the uniformity of the Spreader reaches +/- 0.001mm. The two coating methods are freely switched, and the hard aluminum alloy countertop ensures Stability, which is especially suitable for laboratory scenes such as New materials and glues that require high film cleanliness and accuracy.

[Q]

I want to make a film of lithium battery materials in the laboratory, is there any suitable instrument recommendation?

[A]

TM3000Pro/27 Automatic Film Applicator can be used, specially designed for lithium battery material film, using bar and drawdown blade double coating method, Spreader accuracy up to +/- 0.001mm, servo motor control to ensure film uniformity, especially suitable for high-precision sample preparation requirements of lithium battery slurry.

+HuiNuo TM3000pro/27 Automatic Film Applicator Big data

+HuiNuo TM3000pro/27 Automatic Film ApplicatorStandard

ActiveASTM D823-2018
