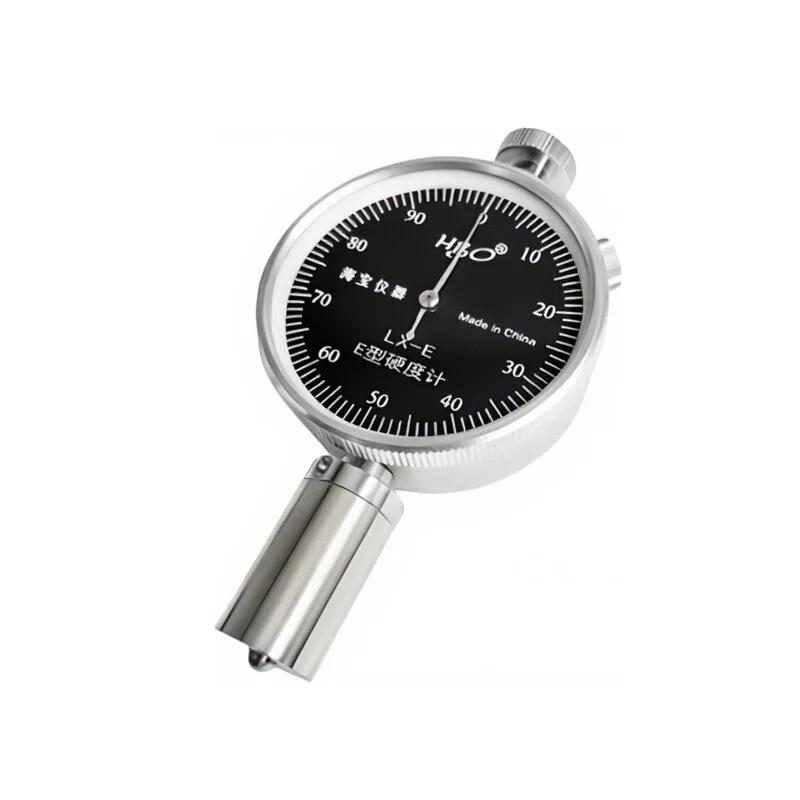

HBO LX-E type rubber Hardness Gauge is suitable for medium hard resilience rubber microporous materials
Suitable for medium hard resilience, rubber or microporous materials, Measurement range 0-100HE, error of indication ≤ +/- 1 HE, needle stroke 0-2.5 mm, can be used with handheld or matching test bench.
HBO
LX-E
-
AMITTARI AW-20B + Webster Hardness Tester sample size 0.6-8 mm
$ 710.00 -
LANDTEK FM-204G Feed grain Hardness Gauge
$ 356.00 -
LANDTEK LW-20 + Webster Hardness Tester Hardness of aluminum alloy profiles, pipes, plates, aluminum workpieces and Miscellaneous soft metals
$ 651.00 -
ShenyangTX W-20 stainless steel Webster Hardness Tester for testing aluminum alloy building profiles, pipes and sheets
$ 956.00 -
ShenyangTX W-20b Webster Hardness Tester for Small Aluminum Profiles and Aluminum Pipes with an Inner Diameter Greater than 6mm
$ 1114.00
Product Introduction
LX-E type Hardness Tester is suitable for the hardness measurement of medium hard elastomers, rubber or microporous materials, such as industrial rubber rollers, sealing strips, shoe soles, harder elastomers, etc., and is more suitable for thinner or curved specimens, and the hardness of the material is >90HA, <20HD is recommended to use this type of Hardness Tester. The Hardness Tester can be used handheld or with a fixed load test bench.
This Hardness Tester is performed in accordance with the American ASTM D2240 standard, corresponding to Type E Hardness Tester.
HBO LX-E E type rubber Hardness GaugeSpecifications
| LIST | VALUE |
|---|---|
| Measurement range | 0-100HE |
| Graduation | 1HE |
| error of indication | ≤±1HE |
| Pin stroke range | 0-2.5mm |
| Pin end pressure | 0.55-8.05N |
| Dimension | 113*60*24mm |
| Weight | 0.2kg |
| Options | LAC-J hardness gauge E type standard Hardness block |
HBO LX-E E type rubber Hardness Gauge Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
