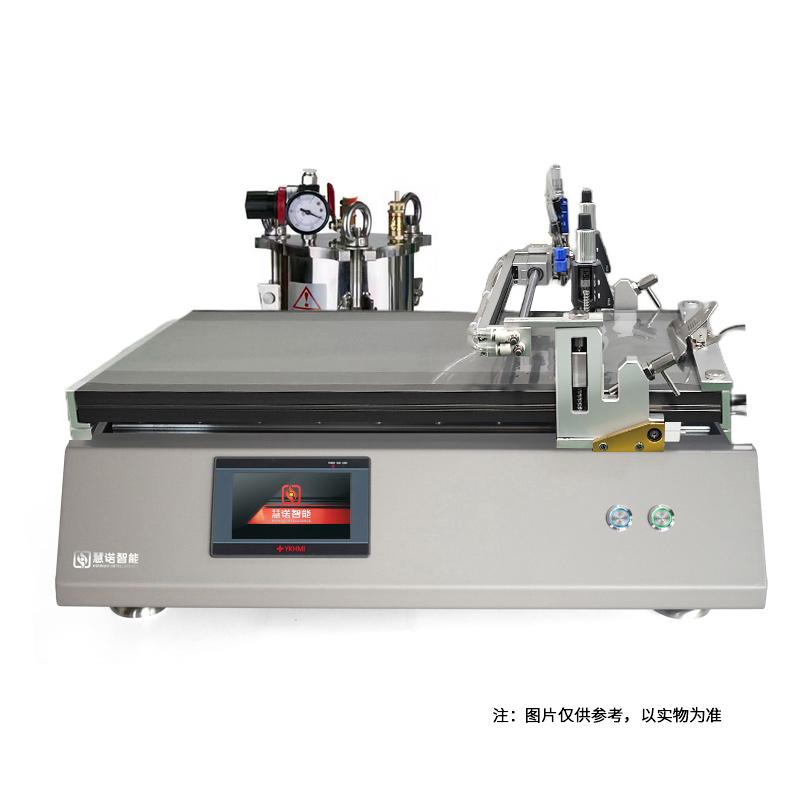

HuiNuo TM3100proAF/01 Automatic Film Applicator with automatic feeding system, servo motor effective coating area 40 * 30cm

Product Overview:

Automatic film coating machine is a device used to coat film in the laboratory, replacing manual film coating, automating the film coating, and improving the accuracy and efficiency of film coating. The working principle of the experimental automatic film coating machine is to evenly coat the sample on the substrate by controlling the coating head and coating parameters, forming the desired film.

This coating machine is a servo motor high-precision wire rod scraper coating machine, using two types of wire rod and scraperCoating methodWith heating and drying function, the new wire rod installation method and clamshell scraper head greatly improve the coating efficiency, easy to clean, with speed control and coating length adjustment function, suitable for high-precision automatic coating of film in the laboratory, in university research institutes, hot melt adhesives, new materials, lithium batteries, glue, resin and other laboratories for film proofing.

Product Use:

The coating machine is suitable for coatings, inks, paints, pastes, hot melt adhesives, lithium batteries, pressure-sensitive adhesives, resins, glues, polymer materials, pharmaceuticals, etc., and can be scraped on glass, cardboard, and fabrics.

Product features:

1) Surface hard treatment aluminum alloy countertop, high hardness and wear resistance, and the flatness of the countertop is tested by imported high-precision instruments.

2) Big brand differential adjuster, high film thickness control accuracy

3) Clamshell scraper coating head, easy to clean

4) Equipped with high-precision Film Applicator, the original imported wire rod coating film is uniform and high accuracy

5) Touch screen control panel, easy to operate

6) The coating length and coating speed can be adjusted freely

7) With heating function, suitable for coating film such as hot melt adhesive.

Host X1, manual X1, fixture X1, drawdown blade x1, import bar X1, certificate X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
