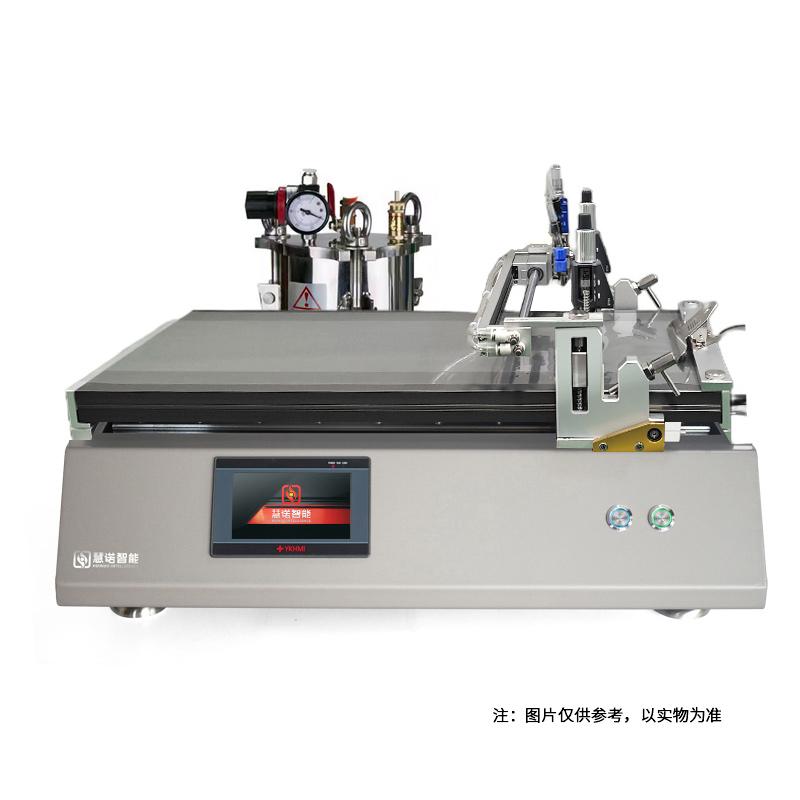

HuiNuo TM3300proAF/04 Automatic Film Applicator bar drawdown blade Coater servo motor ECA 40 * 30cm
Equipped with servo motor to ensure smooth operation, coating speed 1~ 300mm/s stepless speed regulation, heating temperature up to 180 ℃ and uniformity ± 1 ℃, clamshell drawdown blade design for easy cleaning, to meet the needs of high-precision film.
HuiNuo
TM3300proAF/04
-
HuiNuo TM3200/11 drawdown Bar & blade vacuum adsorption Coater ECA 120cm * 100cm
$ 17824.00 -
China Vacuum chuck drawdown Bar & blade Automatic Film Applicator TBJ-X3-XB with imported bar
$ 4269.00 -
CHINA TBJ-A1-DJ13 bar Film Applicator (with automatic feeding system) automatic ink filling, ECA 300 * 1000mm
$ 5237.00 -
AFA-III vacuum coating table 360 * 250mm
$ 654.00 -
CHINA TBJ-A1-DJ9 Floor type wire-rod Film Applicator Coating size 600 * 800mm
$ 6528.00
Product Overview
The automatic film coating machine is a device used to coat the film in the laboratory, replacing the manual coating film, and the coating film is carried out automatically, so as to improve the accuracy and efficiency of the coating film. The working principle of the experimental automatic film coater is to evenly coat the sample on the substrate by controlling the coating head and coating parameters to form the desired film.

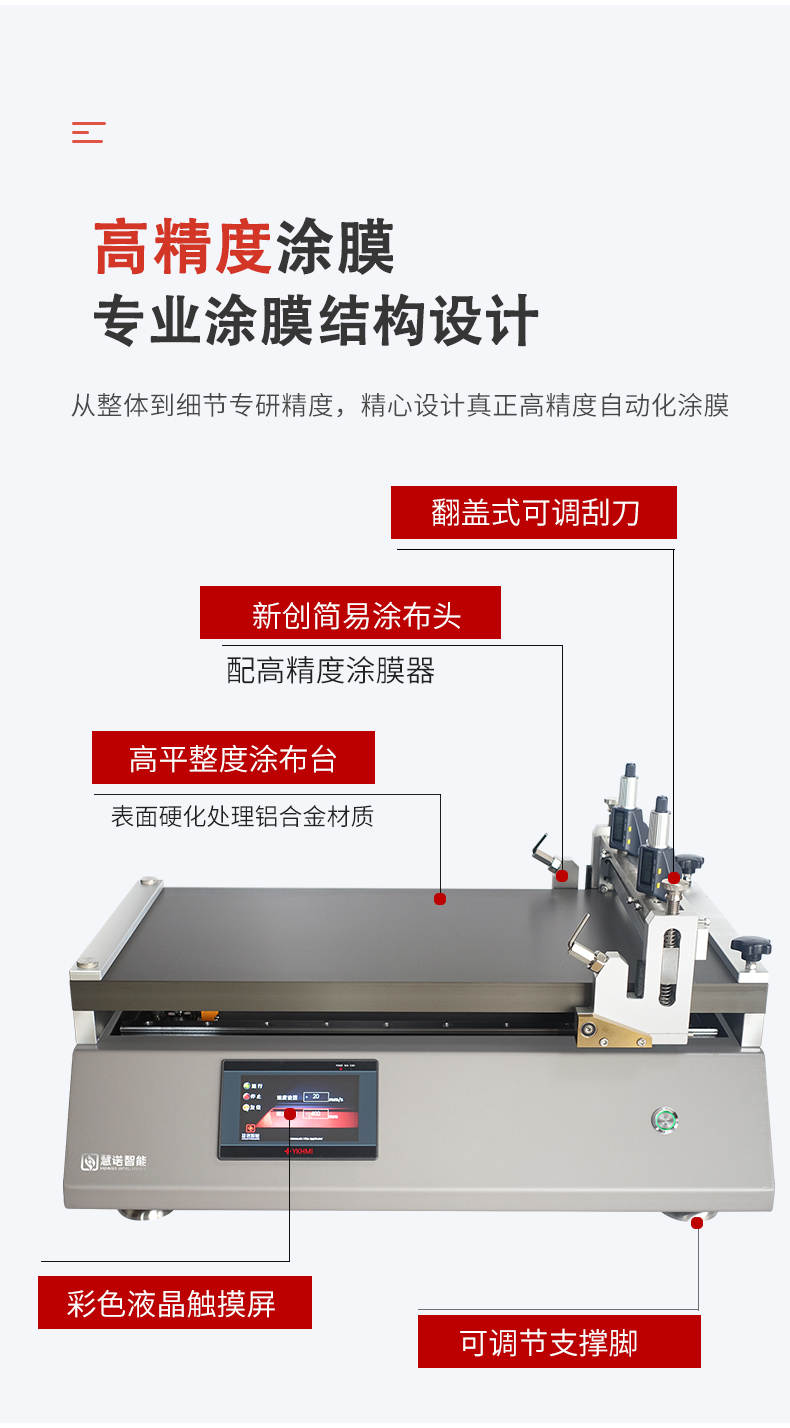

This coating machine is a wire rod scraper coating machine, with two functions of wire rod coating and scraper coating, the new type of wire rod installation method and clamshell scraper head greatly improve the coating efficiency, easy to clean, with speed control and coating length adjustment function, suitable for laboratory high-precision automatic coating, in the university research institute, new materials, lithium battery, glue, resin and other laboratories for film proofing.
Applications
The film coating machine is suitable for coating samples of coatings, inks, paints, pastes, lithium batteries, pressure-sensitive adhesives, resins, glues, polymer materials, chemicals, etc., and can be scraped on glass, cardboard and cloth.
Features

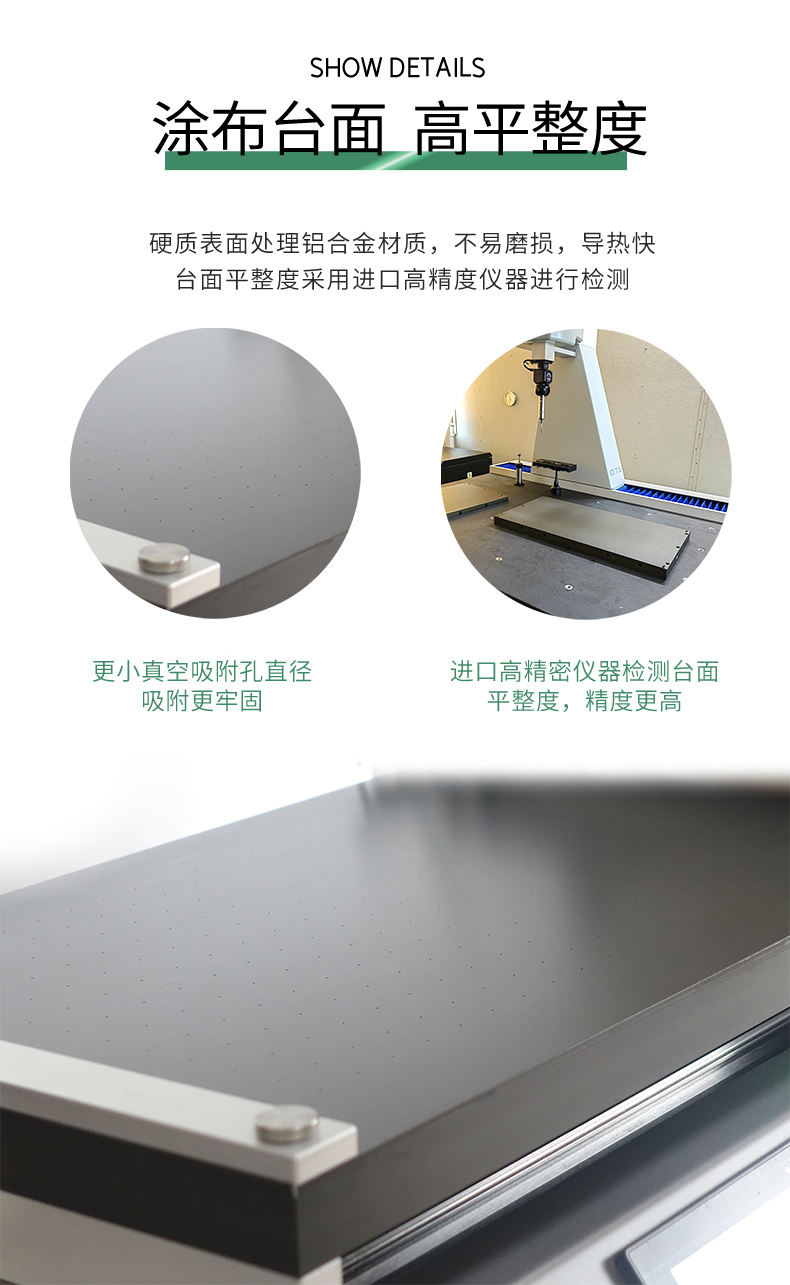

1) The surface is hard treated aluminum alloy table, with high hardness and wear-resistant, and the flatness of the table is tested by imported high-precision instruments.
2) Big brand differential regulator, high film thickness control accuracy

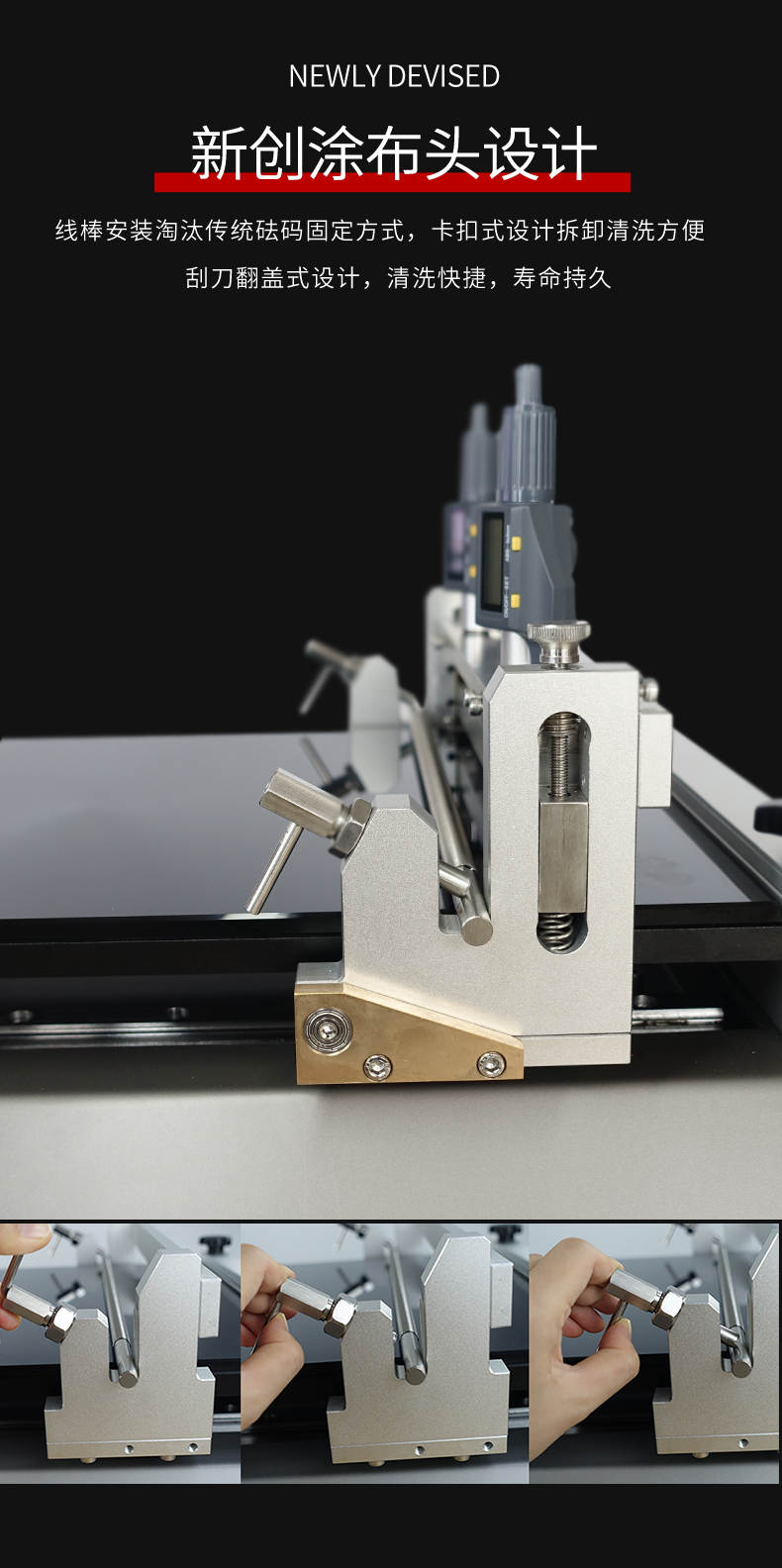

3) Clamshell scraper coating head, easy to clean
4) Equipped with high-precision Film Applicator, the original imported wire rod coating film is uniform and has high precision
5) Touch screen control panel, easy to operate
6) The coating length and coating speed can be adjusted freely
7) With heating and vacuum adsorption function.
8) Servo motor is adopted, the operation is more stable, and the coating accuracy is higher.
HuiNuo TM3300proAF/04 Automatic Film ApplicatorSpecifications
| LIST | VALUE |
|---|---|
| coating method | Bar + drawdown blade |
| coating speed | 1~ 300Mm/s stepless speed regulation (can be customized) |

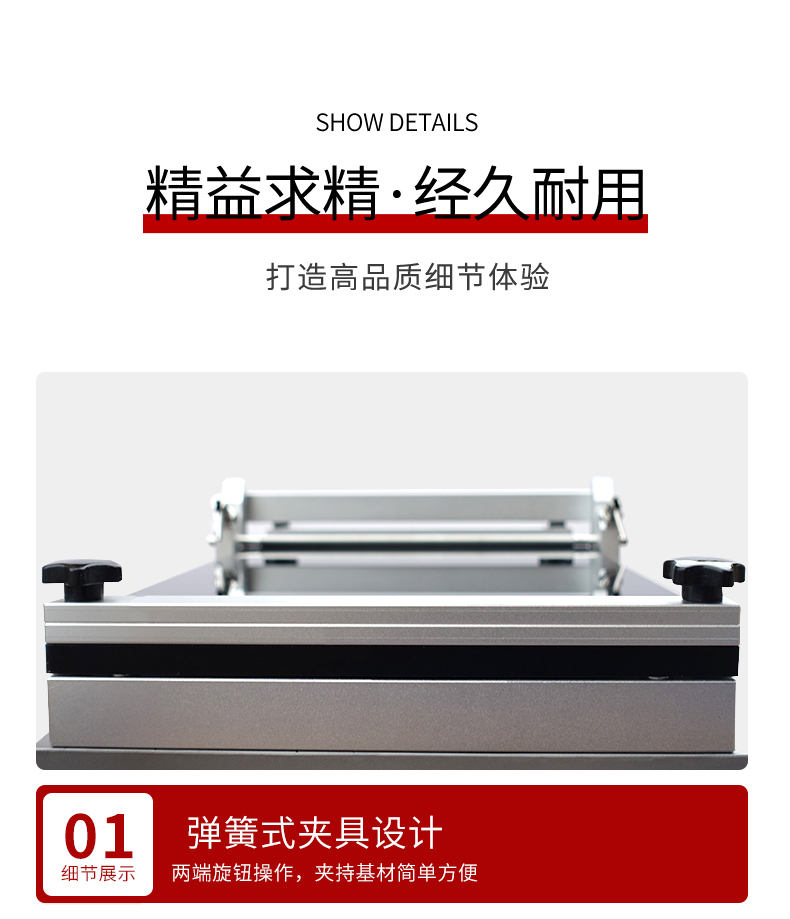

| Substrate clamping method | Vacuum chuck + fixture |
| Coating table material | Surface hard treatment aluminum alloy |
| Coating table size | 640*330mm |
| effective coating area | 400 * 300Mm (can be customized) |
| meyer rod coating thickness range | Different bar sizes have different thicknesses, with High Accuracy imported bars |
| meyer rod coating accuracy | ±0.001mm |
| Blade Coating Thickness Range | 0.1~ 10Mm (clamshell design is easy to clean) |
| Drawdown blade material | Die steel |
| Blade Coating Width | 300mm |
| Blade Coating accuracy | ±0.003mm |
| Vacuum Area | 480 * 260Mm (can be customized) |
| Vacuum aperture diameter | Φ0.8mm |
| Vacuum hole pitch | 20*20mm |
| Vacuum pump pumping rate | 5.4m3/h |
| Ultimate vacuum degree | 50KPa |
| Vacuum Pump Power | 180W |
| Vacuum pump weight | 7.1kg |
| Heating mode | Mica sheet heating (optional graphene heating, faster thermal conductivity) |
| Heating Temperature range | RT+~ 180 ℃ (can be customized) |
| Temperature Uniformity | ±1℃ |
| Drive motor | Servo motor |
| Dimension | 660*440*430mm |
| customization function | Automatic feeding system |
| Feeding principle | Pneumatic pressure feeding |
| Feed Sport Mode | Reciprocating linear motion |
| Feeding back and forth traverse speed | 2-150mm/s |
| spit volume | Adjustable (by adjusting the air pressure and the running speed of the discharge port) |
| Discharge accuracy | ±0.01% |
| Chute volume | 300ml |
| Feeding system air source | Customer-provided compressed air, 0.6Mpa |
| Temperature range of trough | Room temperature~ 200 ℃ |
| Power | 1800w |
| weight | 40kg |
| Operating language | Chinese (can be customized in English) |
| Host power supply | 100V~220V/50~60HZ |
| display screen | Color LCD Touchscreen |
HuiNuo TM3300proAF/04 Automatic Film Applicator Packing list
Host X1, manual X1, drawdown blade x1, imported bar X1, automatic feeding system x1, air compressor x1, certificate X1, vacuum pump X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
