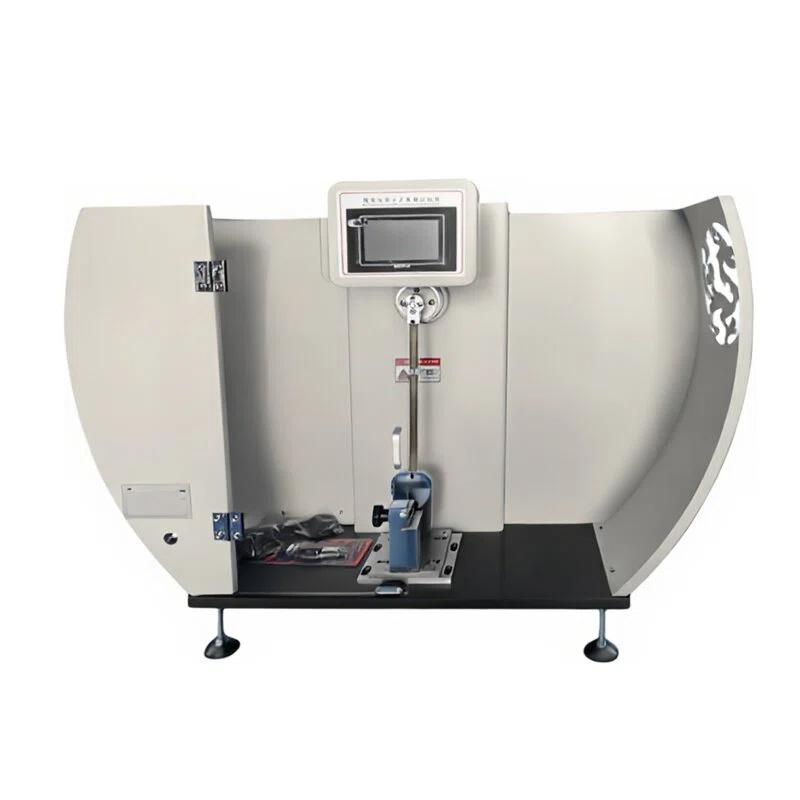

NBC-3006 Cantilever Beam Simply Supported Composite Impact Tester PLC Touch Screen Control
Measurement range, PLC touch screen control and display, micro printer print data, with energy loss automatic correction function, Impact speed 2.9m/s or 3.5m/s, easy to operate, accurate and reliable measurement results.
Factory
NBC-3006
Product Introduction
It is mainly used for the determination of impact toughness of non-metallic materials such as rigid plastics, reinforced nylon, FRP, ceramics, cast stone, electrical insulation materials and fiber-reinforced thermosetting and thermoplastic conforming materials. This testing machine is a reliable test equipment for chemical industry, scientific research units, colleges and universities, quality inspection departments, professional manufacturer laboratories and other units.
Product features:
The product has a wide measurement range, PLC touch screen control and display, micro printer prints data, and has the function of automatic correction of energy loss, which is clear and clear, easy to operate, and the measurement results are accurate and reliable.
Meet the standards
GB/T 1043-2008 "Impact test method for rigid plastic simply supported beams"
JB/T 8762-1998 "Impact Test Method for Plastic Simple Supported Beams"
GB/T 18743-2002 "Impact test method for simply supported beams of thermoplastic pipes for fluid conveyance"
GB/T 3808-2002 "Inspection of Pendulum Impact Testing Machine"
JJG145-2007 "Pendulum Impact Tester"
GB/T 1843-96 "Impact Test Method for Plastic Cantilever Beams"
ISO 180-1993 "Determination of impact strength of plastic cantilever beams"
GB/T 2611-2007 "General Technical Requirements for Testing Machines"
JB/T 8761-1998 "Plastic Cantilever Beam Impact Tester"
Specimen type size of simply supported beam (unit mm)
Specimen type | Length (L) | Width (b) | Thickness (d) |
1 | 80±2 | 10±0.5 | 4±0.2 |
2 | 50±1 | 6±0.2 | 4±0.2 |
3 | 120±2 | 15±0.5 | 10±0.5 |
4 | 125±2 | 13±0.5 | 13±0.5 |
Cantilever beam specimen type size (unit mm)
Specimen model | Length L(mm) | Width b (mm) | Thickness h(mm) |
1 | 80±2 | 10.0±0.2 | 4 |
2 | 63.5±2 | 12.7±0.2 | 12.7±0.2 |
3 | 63.5±2 | 12.7±0.2 | 6.4±0.2 |
4 | 63.5±2 | 12.7±0.2 | 3.2±0.2 |
Factory NBC-3006 Cantilever Beam Simply Supported Beam Composite Impact TesterSpecifications
| LIST | VALUE |
|---|---|
| Simply supported beam parameters | / |
| Impact energy | 2J 、4J 、5J |
| Impact velocity | 2.9m/s |
| Pendulum lift angle | 150° |
| Strike center distance | 230mm |
| Impact edge fillet radius | （2±0.5）mm |
| Cantilever beam parameters | / |
| Impact energy | 2.75J、5.5J |
| Impact velocity | 3.5m/s |
| Pendulum angle | 150° |
| Strike center distance | 335mm |
| Blade fillet radius | R=0.8mm±0.2mm |
| power supply | 100VA 220VAC 50HZ |
| Dimension | Length 420mm * Width 250mm * 650mm |
| Required space | Front and rear 0.4m, left and right 1.5m, upper 1.5m |
Factory NBC-3006 Cantilever Beam Simply Supported Beam Composite Impact Tester Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
