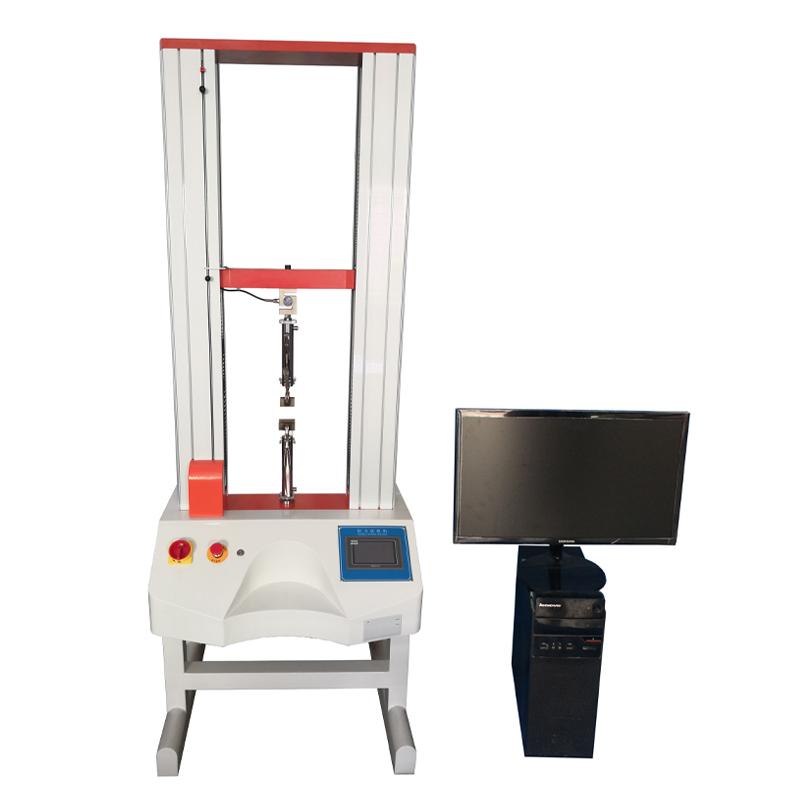

Factory direct sales NBC-1024/BJ Double column Tensile machine Full digital control high-precision measurement
Adopt full digital control AC motor, speed accuracy +/- 0.5%, effective force range 1~ 100% FS, support tensile, compressive and other test modes, strong structural rigidity and stable and reliable operation.
Factory
NBC-1024/BJ
-
HBO ZTD-2K Desktop Microcomputer Controlled Spring Testing Machine, Range 2000N
$ 3527.00 -
Haibao ZYD-1000 desktop microcomputer-controlled universal testing machine, range 1000N/100Kg
$ 2937.00 -
HBO ZT-2K Electric Spring Endurance Tester, Range 2000N
$ 2292.00 -
HBO ZT-50 Desktop Electric Spring Life Tester, Range 50N
$ 2015.00 -
HBO HDD-10K Electric Double Column Tensile Tester
$ 1235.00
Product Use:
It is suitable for aerospace, petrochemical, machinery manufacturing, metal materials and products, wires and cables, rubber and plastic, paper products and color printing and packaging, adhesive tape, bags and handbags, textile fibers, food, and other industries. It can test the physical properties of various materials and finished products and semi-finished products, and can purchase a variety of different fixtures to do tensile, compressive, tensile, pressure-bearing, bending, tearing, peeling, adhesion, shear and other tests.
peculiarity
1. The control system adopts a fully digital AC motor to control the frequency, which ensures that the transmission system has high efficiency, smooth transmission, low noise, and speed accuracy can be controlled within ±0.5%;
2. The machine structure adopts painted aluminum extrusion sealing plate with built-in high-precision, low-resistance, backlash-free double roller screw and guide column, which improves load efficiency and structural rigidity.
3. The product has stable and reliable performance, high measurement accuracy, powerful testing software, and easy to understand.
Safety device
1. Stroke protection: set as upper and lower limit protection switches to prevent exceeding the preset stroke;
2. Force protection: the system can set the maximum force value to prevent exceeding the calibrated value of the sensor;
3. Emergency stop device: There is an emergency stop switch on the right side of the base, which can handle emergencies.
Factory NBC-1024/BJ Tensile machineSpecifications
| LIST | VALUE |
|---|---|
| Capacity selection | 1T |
| Force Precision | ±0.5 % |
| Force resolution | 1/300000 |
| Effective force range | 1~100%FS |
| Precision indication | ±0.5% |
| Test speed range | 50~ 300Mm/min (can be set arbitrarily) |
| effective travel | Effective 500mm |
| Test space | Left and right 380mm, front and rear < unk > |
| Force unit | g、kg、N、LB、KN |
| shutdown mode | Upper and lower limit safety settings, emergency stop button, program power and elongation settings |
| How to take points | Manual point and preset point (20 points) during the test can be used for tensile and pressure test |
| Dimension | 850×510×2000mm(W×D×H) |
| Machine Weight | About 120kg |
Factory NBC-1024/BJ Tensile machine Packing list
Tension machine X1, operation software X1, computer X1, strong pliers stretching fixture X1, manual X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
