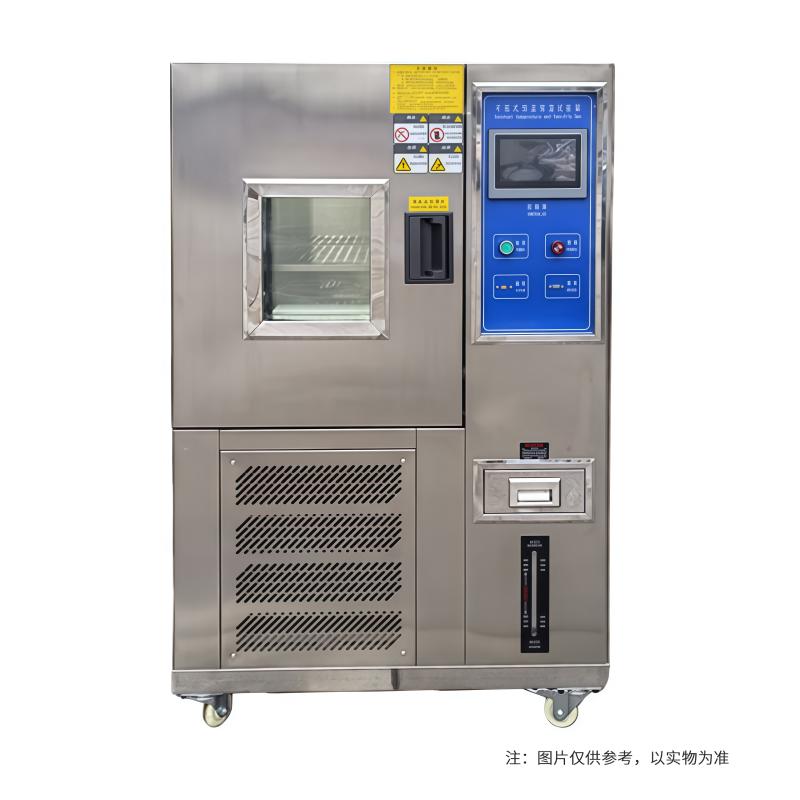

Factory direct sales NBC-80L-70 programmable constant temperature and humidity testing machine, high and low temperature heat and humidity alternating test chamber

Product Introduction

The high and low temperature humidity and heat alternating test chamber is mainly used to test the performance of materials in various environments and to test the heat resistance, cold resistance, dry resistance and moisture resistance of various materials. It is suitable for testing the quality of electronics, electrical appliances, communications, instruments, vehicles, plastic products, metals, food, chemicals, building materials, aerospace and other products.

Control mode: The balanced temperature and humidity control system (BTHC) is adopted, the induction system transmits the actual data in the test chamber to the controller, and the controller balances the output power of the temperature and humidity system by controlling SSR, multi-stage intelligent output, to ensure that the temperature and humidity in the test chamber are fully stable, and has energy-saving functions, which greatly reduces the power of the instrument and ensures the long-term accurate and stable operation of the instrument.

Product features:

1. The product has beautiful appearance, reasonable structure, precise technology, simple and convenient operation and stable and reliable performance.

2. The controller adopts a large color LCD human-machine touch dialog LCD human-machine interface controller, which is simple to operate, easy to learn, stable and reliable, and displays the complete system operation status, execution and setting program curves in Chinese and English, which can realize RS232 computer interface docking.Control the instrument remotely directly from your computer.

3. The refrigeration circulation system adopts compressor: the original imported Japanese "Sanyo" brand fully enclosed compressor (purchased by French Taikang compressor), each component is imported parts, from Japan, France, the United States, Italy and other production areas, and the refrigerant is made of American environmentally friendly refrigerant (R23A, R404A).

4. There is a test hole with a diameter of 50mm on the left side of the test box.

5. It has a fully automatic, high-precision system loop, any machine operation, with P.L.C locking processing, all of which adopt P.I.D automaticCalculation control, the temperature of the whole area has high precision and high stability.

6. Specially designed air circulation and air circulation system and sensing system, the air outlet is detected and controlled by the return air outlet sensor to ensure the temperature uniformity in the test chamber and avoid any dead ends.

7. The use of enlarged observation window and 4 layers of hollow tempered glass for a wider field of view.

8. The instrument has a multi-position protection system, power overload protection, leakage protection, control loop overload, short circuit protection, compressor protection, grounding protection, over-temperature protection, alarm sound prompt, etc., when any abnormal situation occurs, the screen will automatically display the fault point and cause and automatically stop the machine.

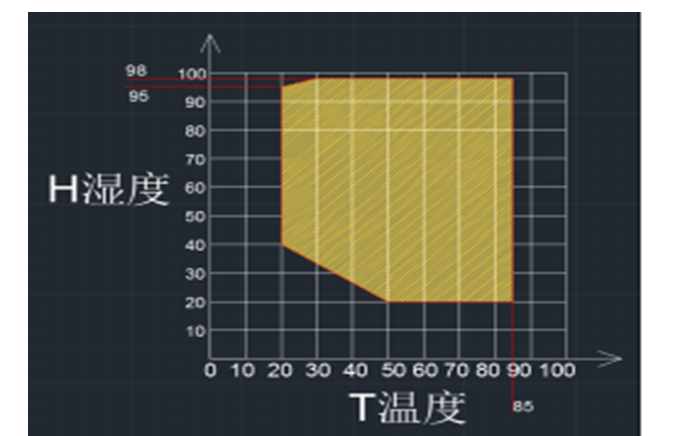

Temperature and humidity control range curve diagram

Frame structure

It uses high-strength C-beam as the main frame, and the top load can bear static load up to 5000kg

Built-in hidden, the whole machine surrounds the frame structure, beautiful appearance, stable and reliable.

Top opening

Laser cutting and opening according to the test sample drawings provided by the customer

Insulation material

Made of German Bayer polyurethane rigid foam + high-density glass fiber

It has excellent temperature resistance and heat preservation effect

Heating system

Multi-stage heating tube is adopted, with PID module, to ensure stable temperature;  Segmented heating to fully save energy.

The heating tube is made of high-temperature and corrosion-resistant alloy tube to extend the service life

Humidification system

The circular split humidifier avoids the freezing phenomenon during the low temperature test that occurs in the sink humidifier.

The humidification tube is made of special alloy, which can be dry burned for more than 1 hour when the instrument fails and lacks water, and with the high temperature alarm module, it effectively extends the service life of the humidification system. Built-in water tank, drawer type water box, convenient and beautiful.

It has a water circulation system that saves 40% of water.

It has a water filtration system to avoid blockage of the humidification system as much as possible and reduce the frequency of cleaning.

Refrigeration system

Compressor: Imported Japanese "Sanyo" brand fully enclosed compressor (purchased by Taikang compressor in France)

Condenser: fin type multi-stage condenser with integral forced heat dissipation fan

Evaporator: Fin type multi-stage automatic load capacity adjustment evaporator, with energy-saving control valve, real

Now compulsory refrigeration and constant temperature refrigeration are controlled in sections

Refrigerant: The United States imports new environmentally friendly refrigerants R404A and R23A to achieve zero pollution to the environment.

Freezing Oil: American Ice Bear Freezing Oil

Drying filter: Italian castor dryer filter,

Solenoid valve: Japanese Lugong solenoid valve

Copper pipes: The pipelines used in the refrigeration system are all imported copper materials, which have the advantage of good flexibility and are not easy to break

Cracking, which has a good shock absorption effect on the long-term vibration characteristics of the refrigeration system.

Luck air circulation system

1. High resistance air circulation motor

2. Multi-wing fan blades

3. Specially designed fan forced air supply circulation system

Put things on the shelf

Standard configuration: 1 layer (high-strength SUS304# stainless steel plate punching treatment, single layer load 20KG)

Racks can be added according to customer requirements, and can be placed on up to 4 floors

The shelf has adjustable spacing and can be removed directly, making it easy to operate

Test chamber door

Single door, double door, left opening

Handle: High-strength deep buckle handle

Hinge: made of high-strength stainless steel

Sealing strip: High and low temperature resistant silicone sealing strip

Defrost: Built-in hidden defrost line

Test holes

A 50mm diameter test hole is opened on the left side of the test chamber, and the durability, wrapping and protection of the wire harness far exceed that of ordinary domestic materials

Data export

The instrument is equipped with a USB export data port, insert the USB flash drive into the instrument, and the test data can be directly imported into the USB flash drive and output to the computer.

The caster instrument is equipped with 4 high-loading universal wheels at the bottom

It adopts a double wave disc design, and is molded by high-quality aluminum alloy integral die-casting

High weighing, wear-resistant, shock-absorbing, smooth movement

controller

• Imported 7-inch color touch screen display

• Touch screen direct button type (touch screen operation control)

• The temperature and humidity can be programmed at the same time

• Displayed in Chinese and English

• High-contrast large LCD controller with adjustable backlight.

• Accuracy: Temperature ±0.1°C, Humidity ± 1% R.H

• Resolution: Temperature ±0.1, Humidity ±0.1%R.H.

• It has upper and lower limit standby and alarm functions

• Temperature and humidity input signal selection PT 100Ω×2 (dry bulb and wet bulb)

• 9 sets of P.I.D control parameter setting, P.I.D automatic calculation

• Automatic correction of wet and dry balls

• The temperature and humidity setting (SV) and actual (PV) values are displayed directly

• It can display the current execution program number, segment, remaining time and cycle count

• Run the cumulative time function

• The temperature and humidity program setting value is displayed in a graphical curve, with real-time display program curve execution function

• It has a separate program editing screen, and each page can enter at least 5 segments of temperature, humidity and time

• Chinese and English can be switched freely.

• The fault prompt screen is displayed.

• The screen can be backlit and adjusted

• The screen display protection function can be set to a time or manually turned off.

• Programs that can be used: Up to 120 groups

• Usable memory capacity: 1200 parts in total

• Repeatable commands: Each command can be executed up to 999 times

• The program is produced in a dialogue format, with functions such as editing, clearing, and inserting

• SEGMENTS Time Set 0 ~ 99Hour59Min

• It has a power-off program memory, and automatically starts and continues to execute the program function after the power is restored

protector

Zero point thyristor power controller

Heating air incineration protection switch

Compressor overpressure protection switch

Compressor overload overcurrent protection switch Phase loss protection switch

No fuse overload protector

Heating fast insurance

Water shortage alarm protection
