HuiNuo TM3300Pro/41D Automatic Film Applicator (Floor-Standing) bar drawdown blade coater Automatic Film Applicator 110 * 40cm
With bar and drawdown blade dual Spreader function, coating speed 1-300mm/s stepless speed regulation, Blade Coating Film thickness 0.1-10 mm, equipped with heating system Temperature Uniformity +/- 1 ℃, using clamshell design for easy cleaning and maintenance.
HuiNuo
TM3300pro/41D
-
HuiNuo TM3300Pro/19 drawdown Bar & Blade heating vacuum adsorption coater Effective area 45 * 35cm
$ 5667.00 -
AFA-III vacuum coating table 360 * 250mm
$ 630.00 -
TQC AB3676 Vacuum Pump
$ 1159.00 -
China TBJ-X5-DJ5 Vacuum chuck Drawdown blade coater
$ 4268.00 -
HuiNuo TM3000Pro/20 Automatic Film Applicator drawdown Bar & blade coater effective coating area 150 * 30cm servo motor
$ 7066.00
Product Overview:
Automatic film coating machine is a device used to coat film in the laboratory, replacing manual film coating, automating the film coating, and improving the accuracy and efficiency of film coating. The working principle of the experimental automatic film coating machine is to evenly coat the sample on the substrate by controlling the coating head and coating parameters, forming the desired film.
This coating machine is a wire rod scraper coating machine, with two functions of wire rod coating and scraper coating, the new wire rod installation method and clamshell scraper head greatly improve the coating efficiency, easy to clean, with speed control and coating length adjustment function, suitable for high-precision automatic coating of film in the laboratory, in university research institutes, new materials, lithium batteries, glue, resin and other laboratories for film proofing.
Product Use:
The film coating machine is suitable for coating and sample coating of coatings, inks, paints, pastes, lithium batteries, pressure-sensitive adhesives, resins, glues, polymer materials, pharmaceuticals, etc., and can be scraped on glass, cardboard, and fabrics.

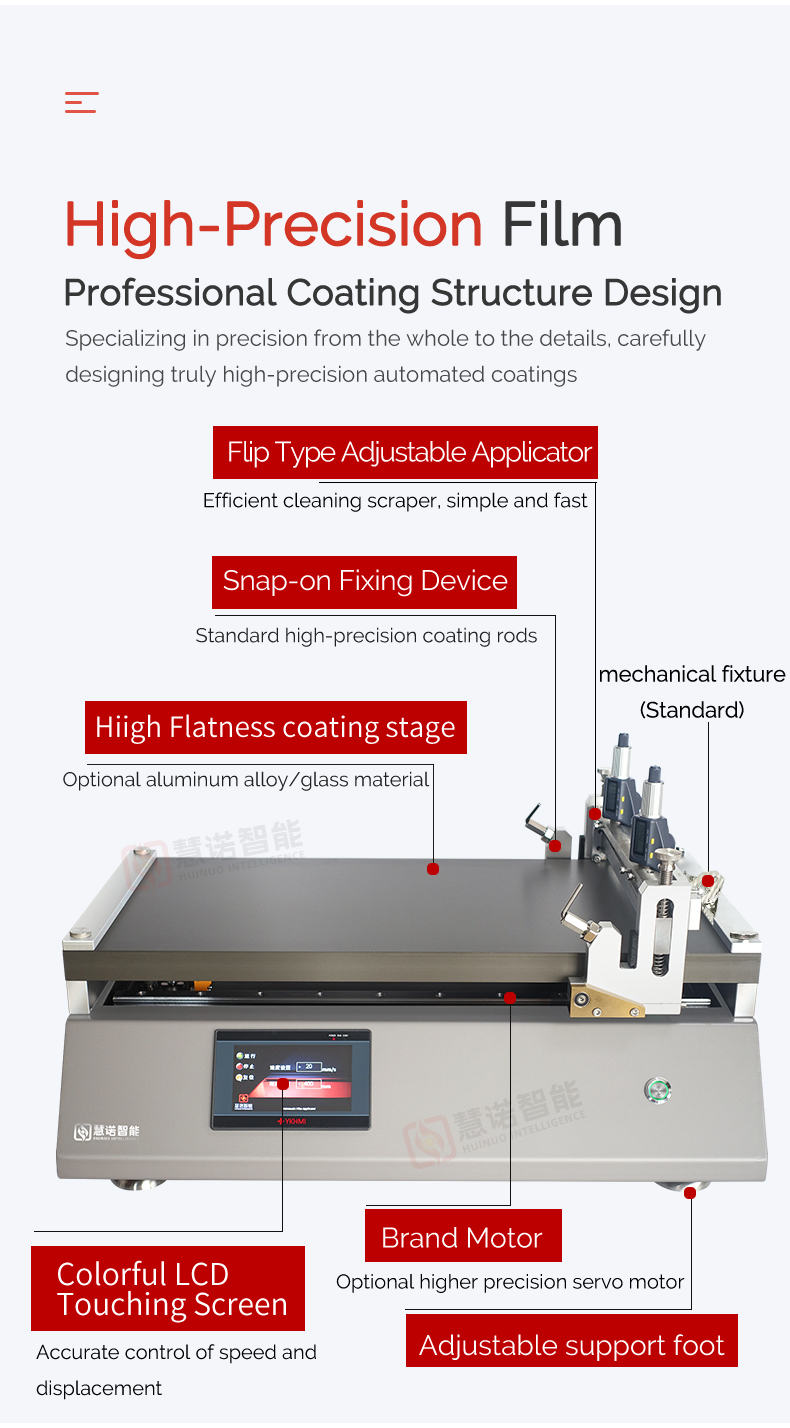

Product features:
1) Surface hard treatment aluminum alloy countertop, high hardness and wear resistance, and the flatness of the countertop is tested by imported high-precision instruments.
2) Big brand differential adjuster, high film thickness control accuracy

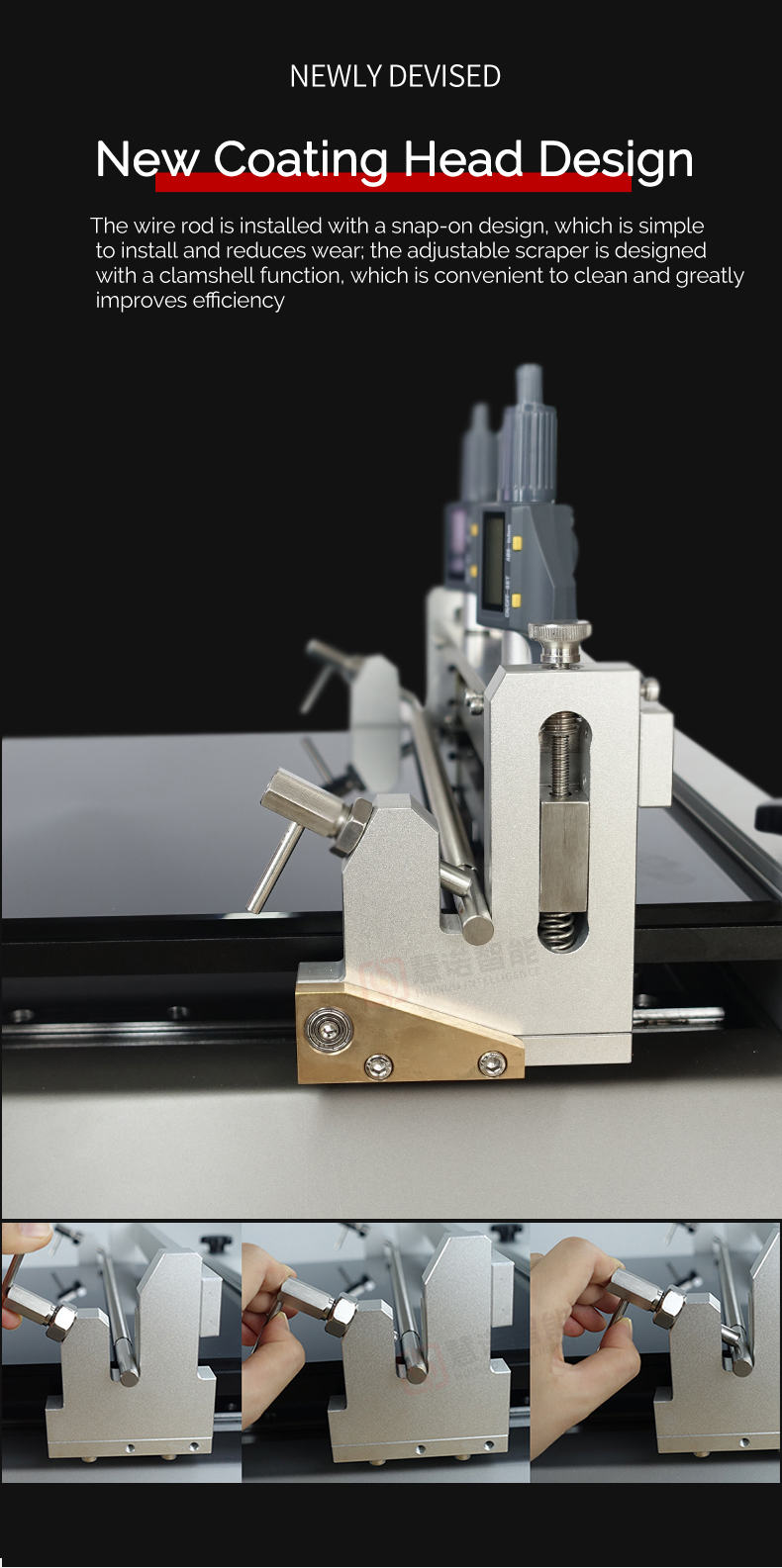

3) Clamshell scraper coating head, easy to clean
4) Equipped with high-precision film applicator, the original imported wire rod coating film is uniform and high accuracy
5) Touch screen control panel, easy to operate
6) The coating length and coating speed can be adjusted freely
7) With heating and vacuum adsorption function.

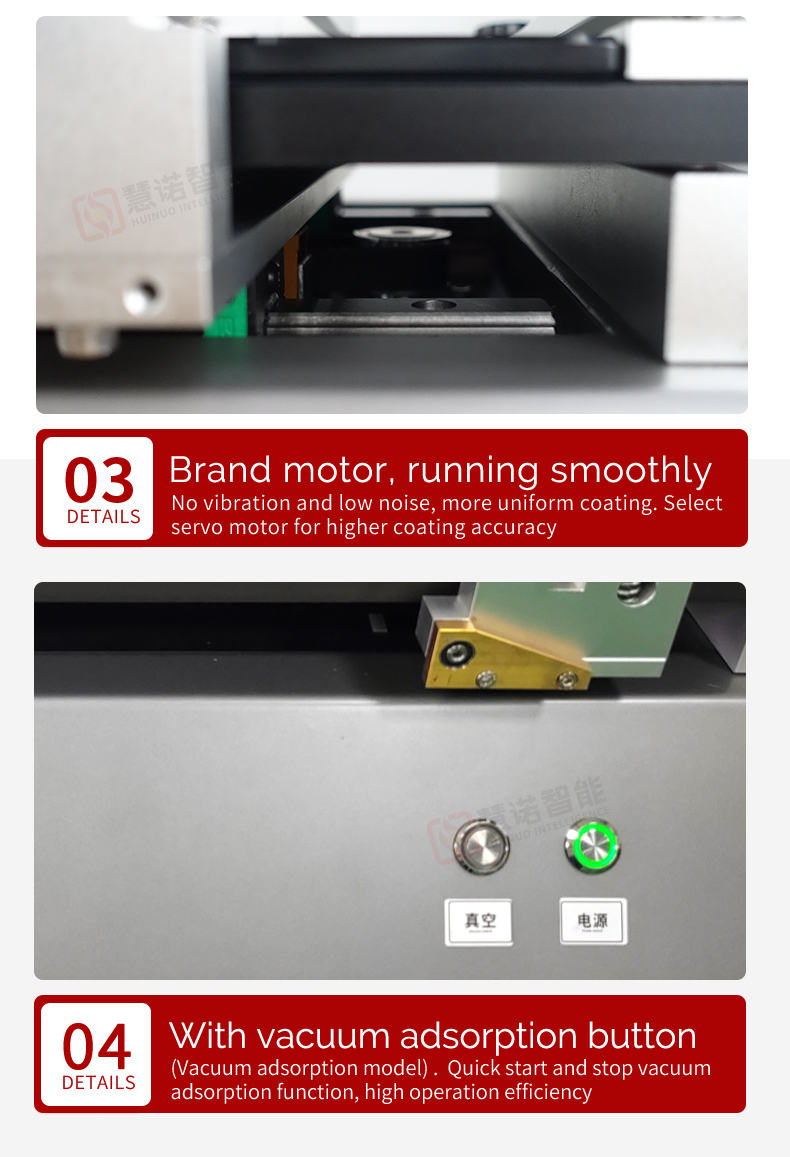

8) Servo motor is adopted, which is more stable in operation and higher in coating accuracy.
HuiNuo TM3300pro/41D Automatic Film ApplicatorSpecifications
| LIST | VALUE |
|---|---|
| coating method | Bar + drawdown blade |

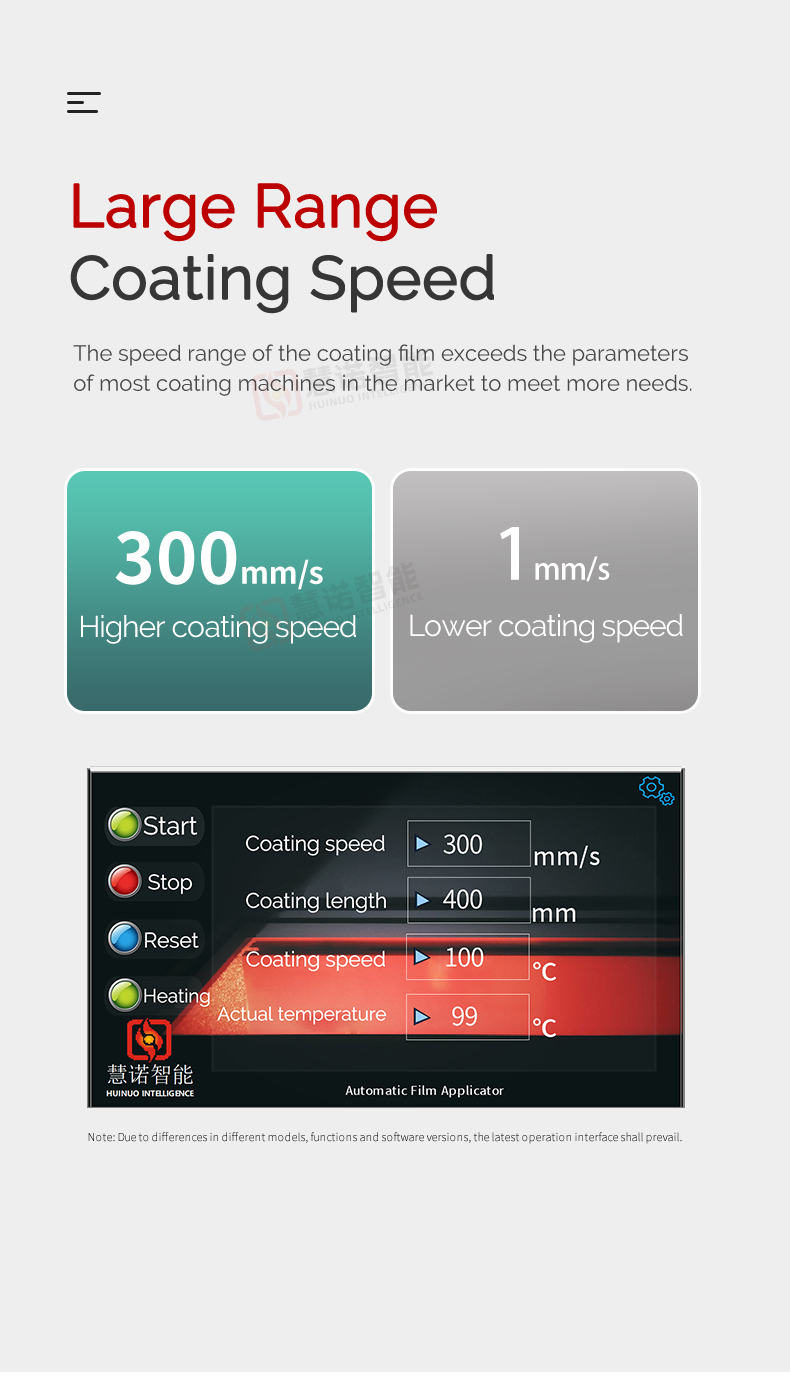

| coating speed | 1~ 300Mm/s stepless speed regulation (can be customized) |

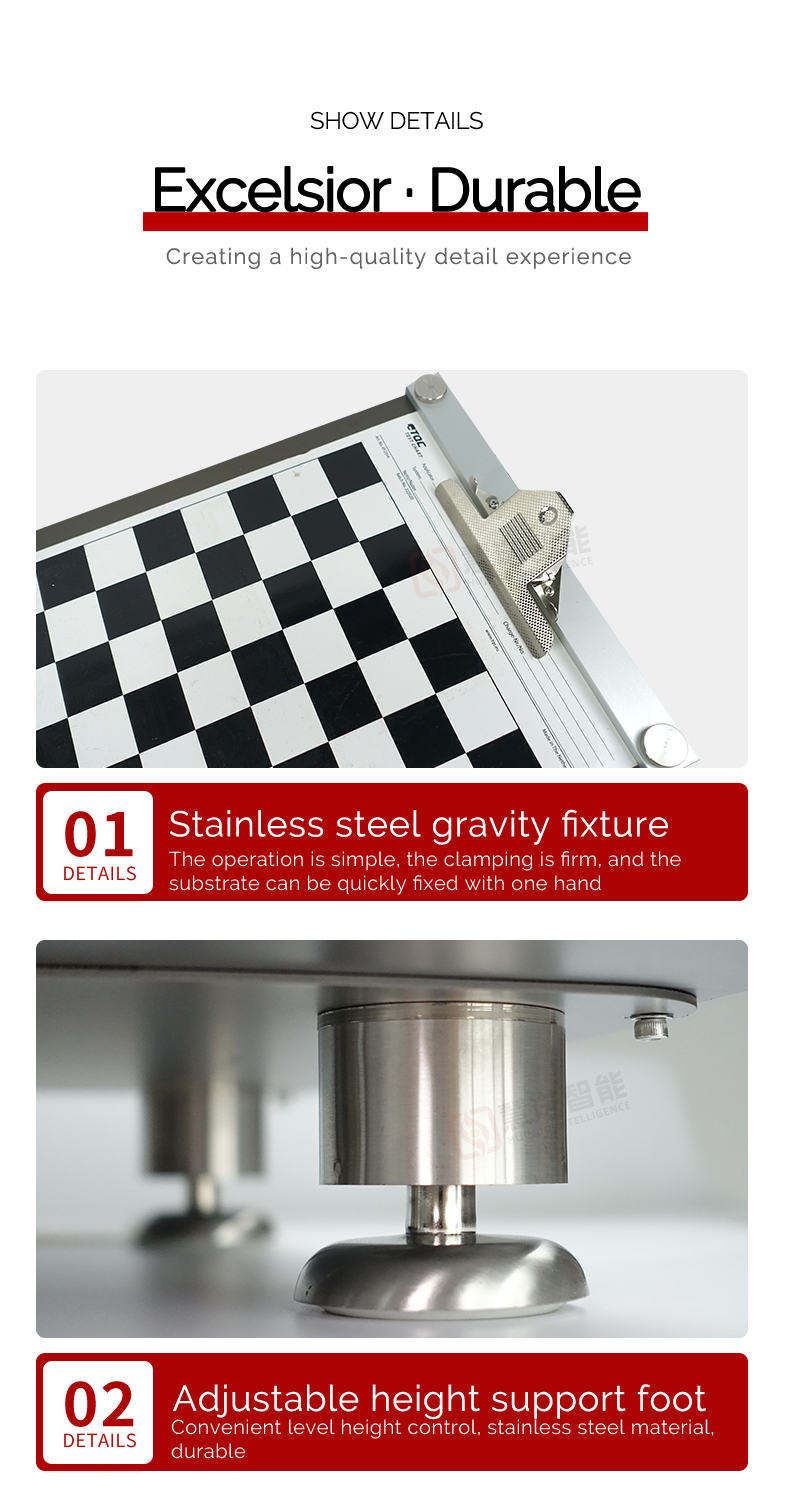

| Substrate clamping method | Vacuum chuck + fixture |
| Coating table material | Surface hard treatment aluminum alloy |
| Coating table size | 1340*430mm |
| effective coating area | 1100 * 400Mm (can be customized) |
| meyer rod coating thickness range | Film thickness is different, with High Accuracy bar |
| meyer rod coating accuracy | ±0.001mm |
| Blade Coating Film thickness range | 0.1~ 10Mm (clamshell design is easy to clean) |
| Drawdown blade material | Die steel |
| Blade Coating Width | 400mm |
| Blade Coating accuracy | ±0.003mm |
| Vacuum Area | 1180 * 360Mm (can be customized) |
| Vacuum aperture diameter | Φ0.8mm |
| Vacuum hole pitch | 20*20mm |
| Vacuumpump pumping rate | 5.4m3/h |
| Ultimate vacuum degree | 50KPa |
| Vacuumpump power | 180W |
| Vacuumpump weight | 7.1kg |
| Heating method | Mica sheet heating (optional graphene heating, faster thermal conductivity) |
| Heating temperature range | RT +~ 180 ℃ (can be customized) |
| Temperature Uniformity | ±1℃ |
| Drive motor | Servo motor |
| operating language | Chinese (can be customized in English) |
| display screen | Color LCD Touchscreen |
| Host power supply | 100V~220V/50~60HZ |
| power | 1800w |
| dimensions | 1360*540*940mm |
| weight | 40kg |
HuiNuo TM3300pro/41D Automatic Film Applicator Packing list
Host X1, manual X1, drawdown blade x1, import bar X1, certificate X1, Vacuumpump X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
