Factory direct sales Rgdjy-02/350dcpro immersion coil Automatic Film Applicator wet film thickness 0.005-3mm Continuous experimental Automatic Film Applicator

Product Introduction

RGDJY-02/350DCPRO coil scraper coating machine is a continuous experimental film coating machine with unwinding, scraping, soaking, drying, and winding functions, with a wet film thickness of 0.005-3mm, suitable for hot melt adhesives, self-adhesives, plasters, etc.

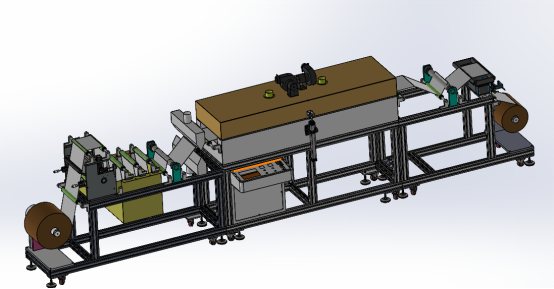

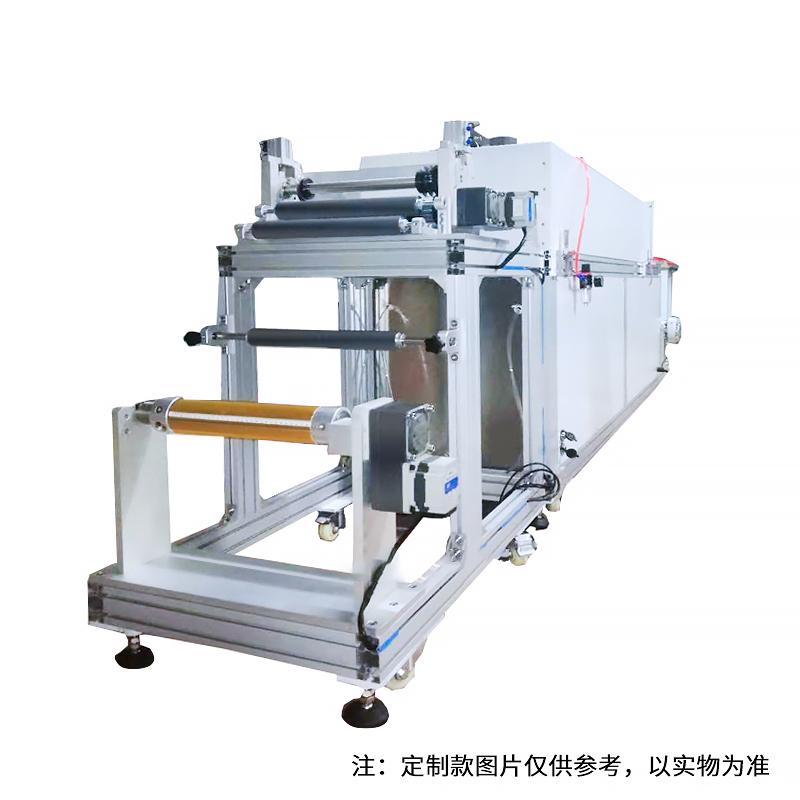

Product structure

The machine is composed of a body, a gluing width adjustment device, a discharge frame, a gluing roller set, a thickness adjustment dial indicator, a transmission platform, a traction roller set, and a transmission mechanism.

1. Body: The body of the equipment is all composed of aluminum alloy + high electrostatic spraying plate.

2. Gluing width adjustment device: The width adjustment device is composed of food-grade plastic and movable braces.

3. Discharge rack: The machine is equipped with two discharge racks, when the two materials are misaligned in the process of lamination, the correction device automatically adjusts to make the rack move left and right to achieve the effect of aligning the two materials.

4. Gluing roller group: The gluing roller group is made of double drum precision machined parts, and the transmission is smooth.

6. Thickness adjustment percentage table: the adjustment of the coating thickness required when gluing. The thickness of the glue coating can be adjusted by rotating the left and right handwheels on the gluing roller frame clockwise or counterclockwise, and the specific thickness is determined according to the dial indicator.

7. Transmission platform: The transmission platform is made of stainless steel, and its main function is to smoothly transmit the substrate to the next process after connecting the gluing.

8. Traction roller group: the substrate is pulled by hand between the upper and lower rollers of the traction roller, the handwheel on the frame is tightened to make the traction roller, the rubber ring of the upper roller is in contact with the lower roller, and the traction roller group pulls the substrate over through the power transmission to complete the coating work.

Main parameters of equipment work

1. Sequence of requirements: double unwinding 350mm →scraping→ soaking into a film→ into the oven, drying 2 meters → tension controller→ edge correction → winding

2. Equipment production: unwinding → tension controller→ overlay coating (rubber rollers are installed on the large overlay rollers to squeeze water), →enter the sink (sink with circulating filtered water source), blow dry → air knife (air knife can adjust the angle), enter the oven→ tension control→ correct edges→ winding→ winding

Functional features:

Substrate tension control, belt stability;

main drive servo drive, speed can be set;

Hot air oven;

PLC control, HMI operation, convenient and easy to use;

Process introduction

1. The equipment adjusts the unwinding tension by controlling the torque of the unwinding shaft, and adjusts the unwinding tension by controlling the torque of the rewinding shaft, and the rotation line speed of the main drive steel roller is

The main drive speed realizes belt control.

The drying oven uses electrically heated air, and the hot air heats and dries the substrate.

machine x1, manual x1, certificate x1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
