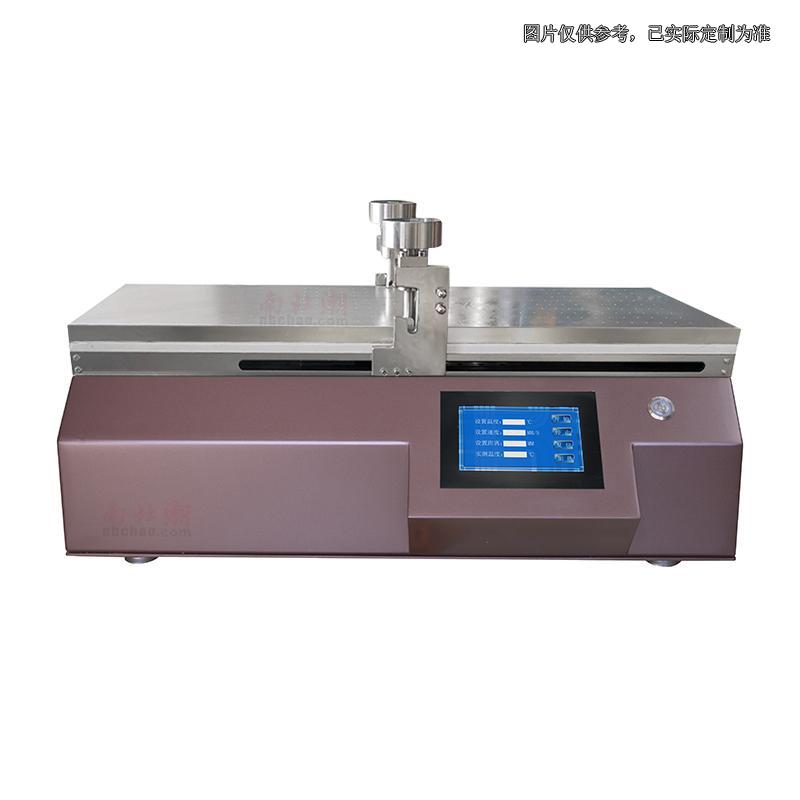

zy TBJ-A1-XB500g Automatic Film Applicator

Domestic (CN) TBJ-A1-XB500g Automatic Film Applicator bar type Automatic Film Applicator

Meyer rod coating accuracy of +/- 0.001mm, Film thickness range of 1~ 571.5μm, coating speed 5~ 200mm/s adjustable, Touchscreen control, support a variety of custom functions such as automatic lame plating and UV curing, to ensure film conformity and easy operation.

Brand

SKU: NB050660

Model

TBJ-A1-XB500g

Price

$ 1905.00

Promotion

Service

The delivery and service By NBchao.Com

Get Quote

zy shop

Information

Datasheet RFQ Contract Video

What else did others buy

Genuinegoods

zy TBJ-A1-XB500g Automatic Film ApplicatorOverview
Specifications
Comments
FAQs

TBJ-A1-XB500g

Automatic Film Applicator

Touch laboratory TBJ-G wire stick coating testing machine is a new product developed and produced according to the requirements of the national standard GB/T 9756-2018, which is carefully designed to coat accurate wet film on different substrates, and can be repeatedly and continuously prepared to produce smooth and flat test samples.

Since the main factors affecting the coating film are the coating speed and the pressure applied to the film applicator, the coating applied by hand often has inconsistencies, especially the difference between different people, which brings difficulties to compare the test results between samples. Our automatic applicator allows operators to easily apply precise wet films on different substrates, greatly improving the reproducibility of coating films.

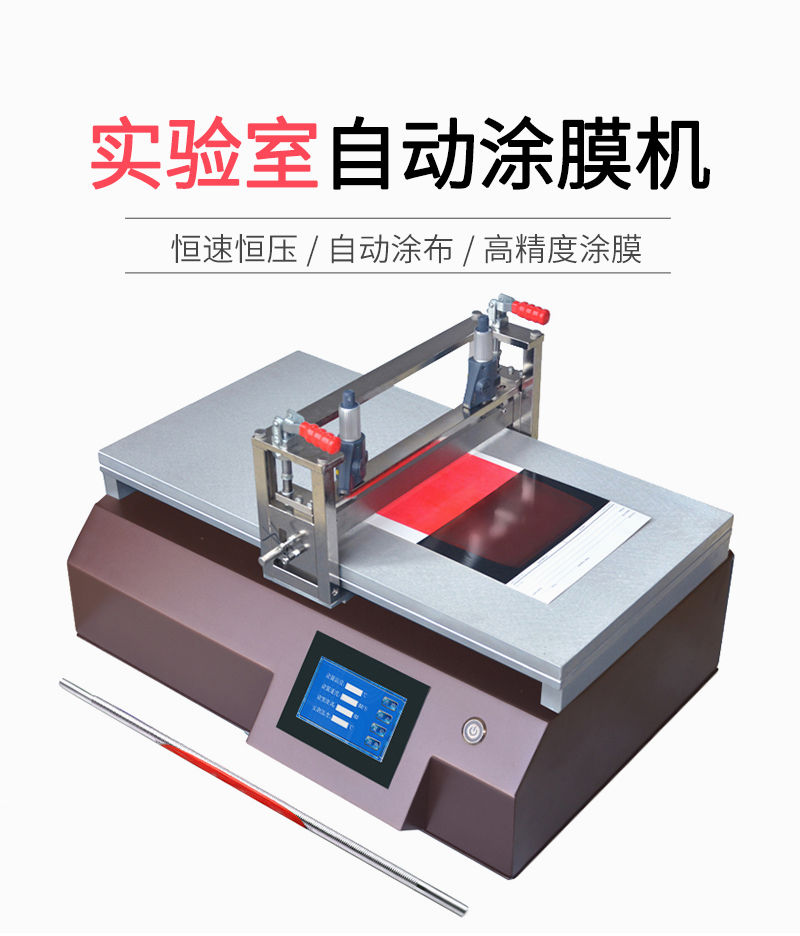

Details of the domestic TBJ-G wire rod coating testing machine Figure 1

Details of the domestic TBJ-G wire rod coating testing machine Figure 2

Details of the domestic TBJ-G wire rod coating testing machine Figure 3

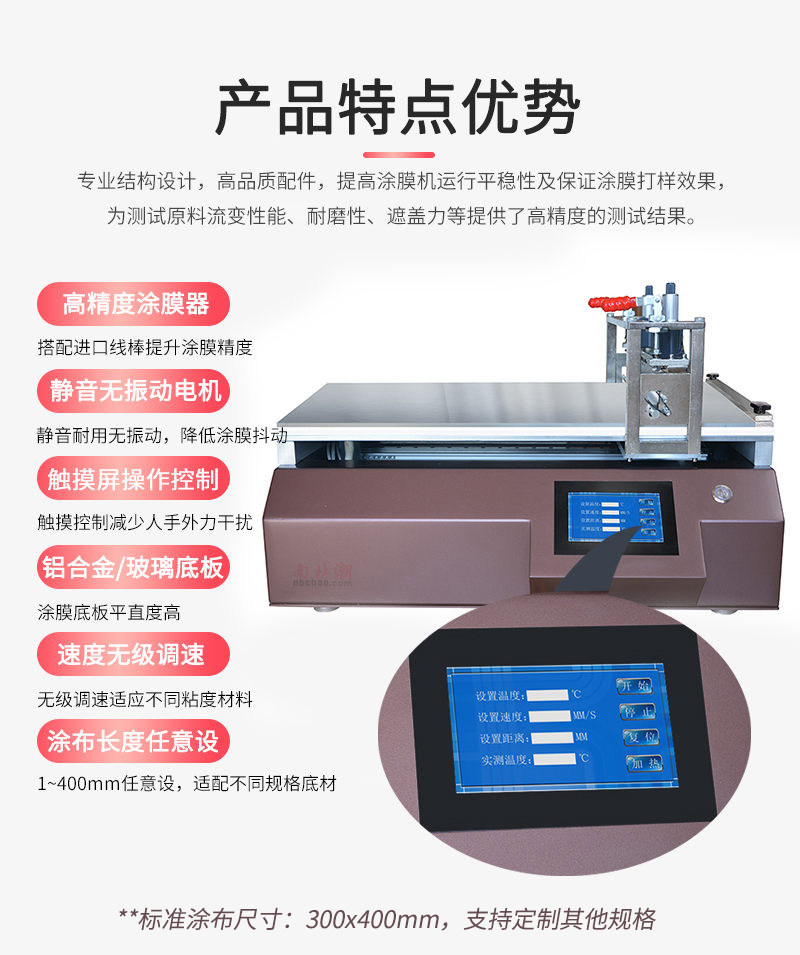

Features and advantages of TBJ-G wire rod coating testing machine

Application fields of automatic film coating machine

TBJ-G wire rod coating testing machine is suitable for coating substrates

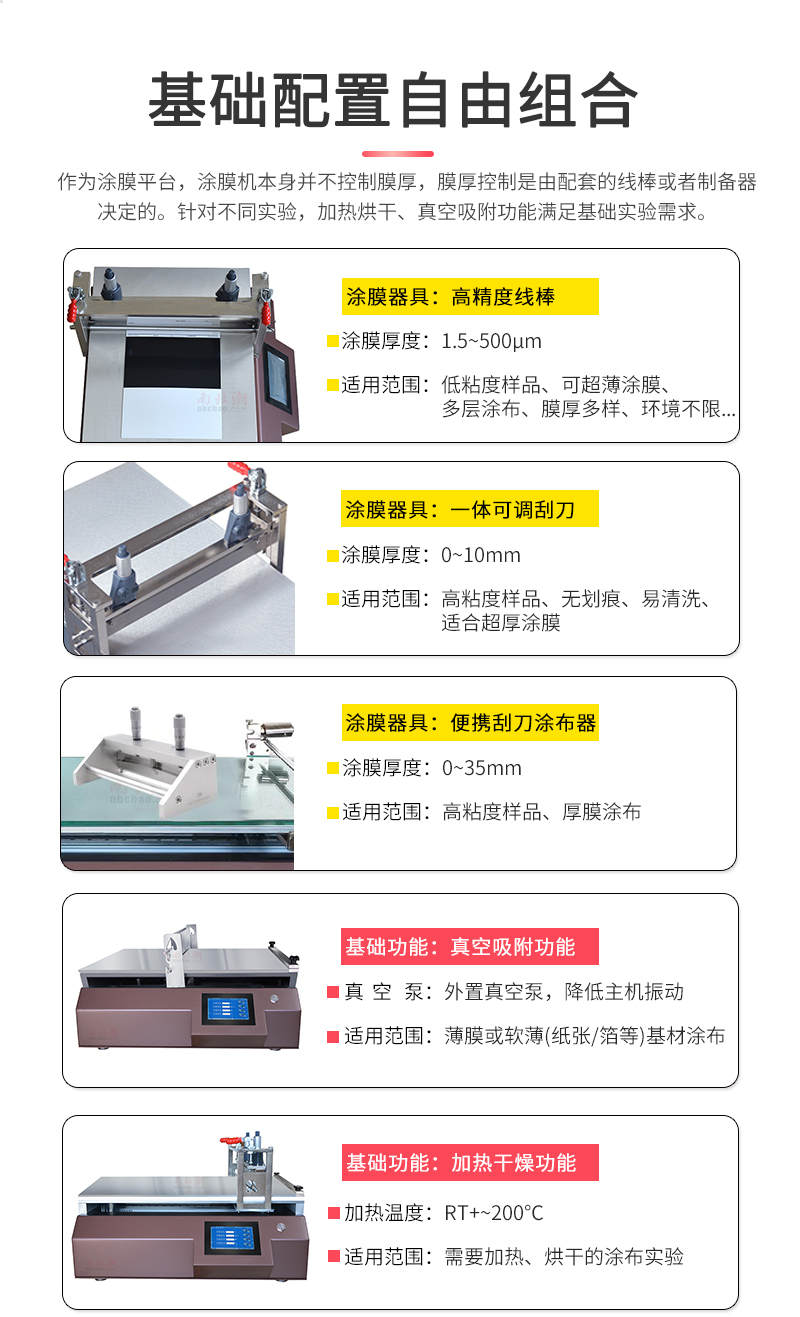

Basic function configuration of the North and South Tide automatic coating machine

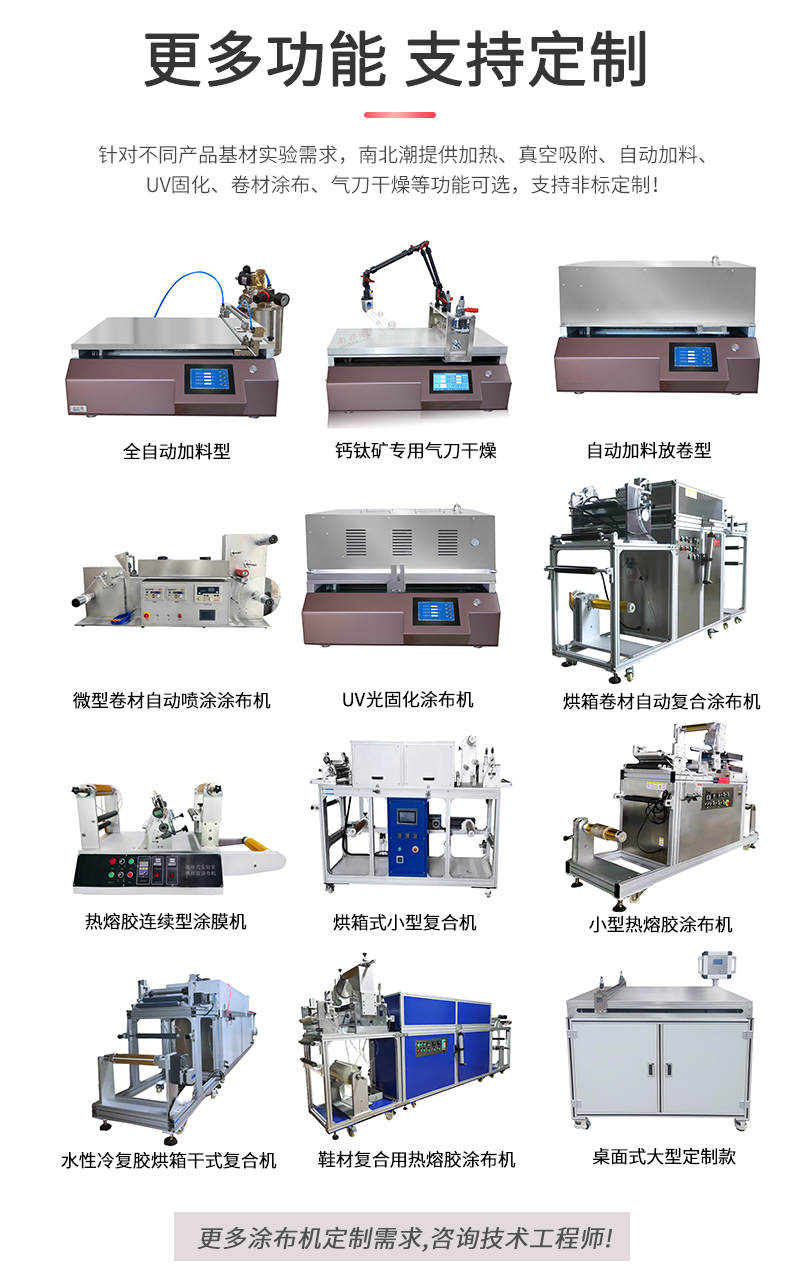

The North and South Tide Automatic Coating Machine supports customization

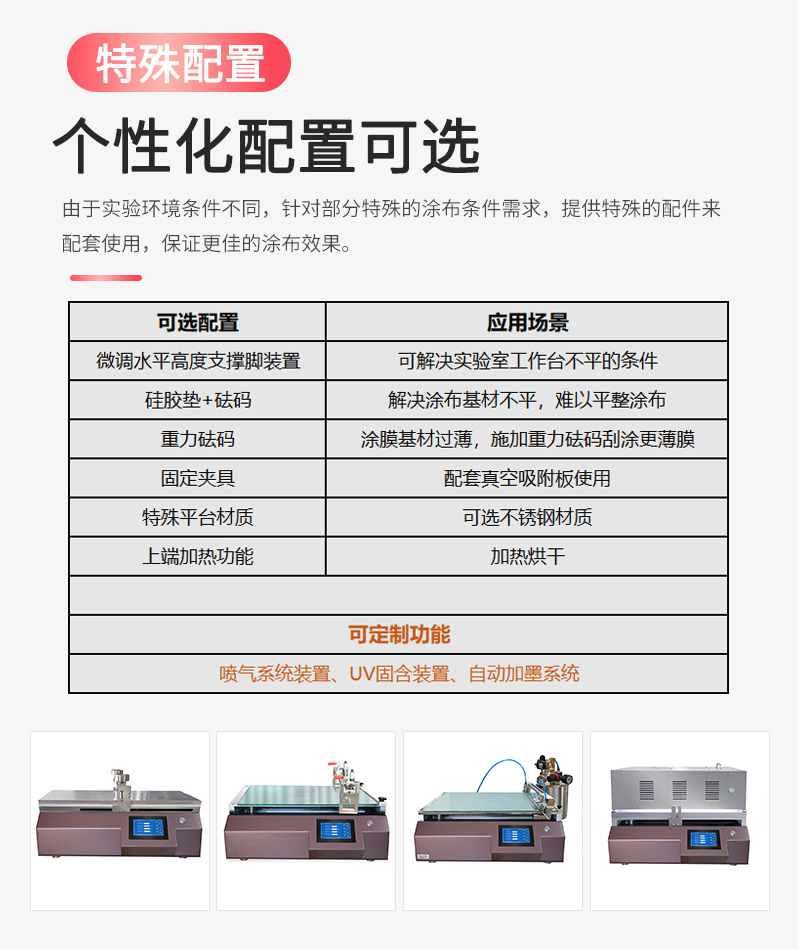

Details of domestic TBJ-G wire rod coating testing machine Figure 8

Details of domestic TBJ-G wire rod coating testing machine Figure 9

Details of the domestic TBJ-G wire rod coating testing machine Figure 10

Optional accessories

zy TBJ-A1-XB500g Automatic Film ApplicatorSpecifications

LIST	VALUE
coating method	Bar Spreader
meyer rod coating accuracy	±0.001mm
meyer rod coating thickness range	1~ 571.5 μm (Spreader Film thickness according to bar type)
coating speed	5~ 200Mm/s (< 5mm/s can be customized)
effective coating area	400 * 190Mm (can be customized)
Spreader Travel	Digital arbitrary setting within the range of 1~ 400mm
Load at both ends of the bar	Each 500g weight
control mode	Touchscreen control
Host power supply	220V 50HZ
dimensions	690350420mm
net weight	72KG
speed control	Infinitely variable speed
Bottom plate material	Tempered Glass
Optional accessories	Leakage tank, substrate fixture, trimming horizontal height support foot device, Glass plate, Silicone pad and weight (for applications with uneven film thickness of Spreader substrate), film width control baffle
customizable function	Automatic lame plating device, UV curing device, automatic inking system, air knife drying, remote control, upper infrared heating, double extrusion Spreader

zy TBJ-A1-XB500g Automatic Film Applicator Packing list

Automatic Film Applicator X1, bar X1, product manual X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
