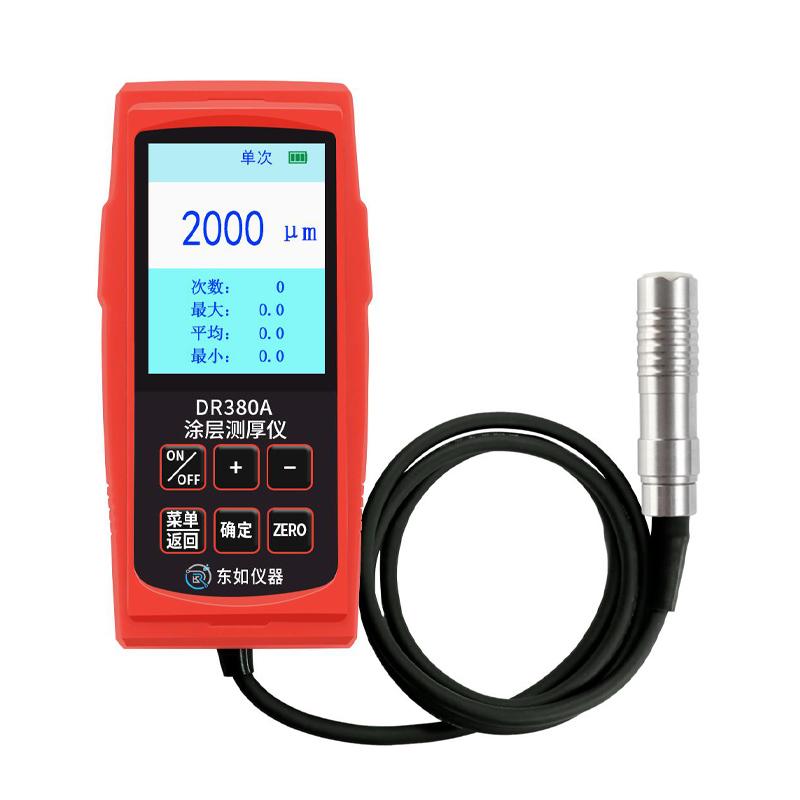

DONGRU DR380A Coating thickness gauge dual-use type, portable rechargeable nondestructive testing

Product Introduction

DR380A coating thickness gauge is a portable and rechargeable dual-purpose coating thickness gauge, according to the national industry: GB/T 4956-2003, GB 4957-2003 standard professional measurement of the thickness of metal material surface coating cover cover object professional non-destructive testing instrument, simple to use, easy to carry, large LCD screen, large font size, backlight direct reading is clearer, using imported high-quality metal probe, the structure is precise and firm, the repeatability is better, and the performance is still good. Different measurement methods can be used depending on the metal matrix.

A: Magnetic thickness measurement method

The thickness of non-magnetic cladding on magnetic metal substrates (e.g., steel, iron) can be measured non-destructively (e.g., galvanized, chrome, enamel, rubber, powder, paint, electrophoresis, enamel, sprayed, paint coating, etc.).

B: Eddy current thickness measurement method

Non-destructive measurement of the thickness of non-conductive cladding (e.g., paint, powder, plastic, rubber, enamel, enamel, electrophoresis, etc.) on non-magnetic metal substrates (e.g., aluminum, copper, stainless steel) can be measured.

Applications:

It is widely used in the coating industry, manufacturing industry, metal processing industry, chemical industry, commodity inspection and other testing fields.

Instrument features:

• It is simple to operate, fast to test, good sensitivity, and high measurement accuracy

• The alloy probe is made of hard, durable and precise

• There are two types of measurement: continuous and single

• There are four statistical functions: maximum, minimum, average, and number of measurements

• Large-capacity storage, which can be divided into 10 groups of 200 storage, and can store a total of 2,000 data

• Storage data view and deletion function

• Three calibration methods: zero-point calibration, two-point calibration, and multi-point calibration

• Upper and lower limit alarm function (can be set in single measurement mode)

• Operation is indicated by a beep (in single measurement mode)

• Automatically identify ferrous and non-ferrous substrates

• The unit system converts μm, mil, mm

• Single and double-sided galvanized gram measurement function

• Bilingual version in Chinese and English

• 2.8-inch large color screen large-size display

• Type-C charging, large-capacity lithium battery (3000mAH) ultra-long battery life

• Manual/automatic shutdown function

• USB or Bluetooth synchronous data transfer function (customized)

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
