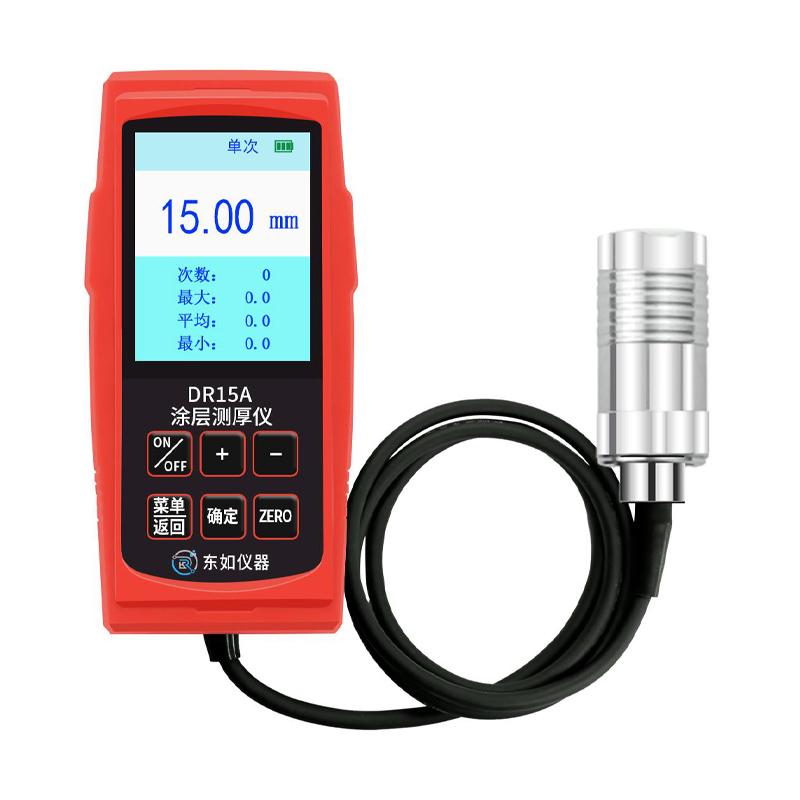

DONGRU DR15A Large Range Anticorrosive Layer Thickness Gauge, Iron Based Single Use Type 0.1-15 mm Coating Inspection

Product Introduction

DDR15A coating thickness gauge is a portable and rechargeable high-range coating thickness gauge, a non-destructive thickness gauge that specializes in detecting the thickness of anti-corrosion and fireproof coatings. It adopts the principle of electromagnetic induction, according to the national industry: GB/T4956-2003 standard, is a professional non-destructive testing instrument for measuring the thickness of the coating coating of magnetic metal materials. It can non-destructively measure the thickness of non-magnetic cladding on magnetic metal substrates (such as: steel, iron) (such as: paint, electrophoresis, powder, spraying, asphalt, polyethylene, galvanized, chrome, copper, inlay, enamel, rubber, enamel, 3PE, anti-corrosion and fireproof coating, etc.), simple to use, easy to carry, large LCD screen, large font size, backlight direct reading clearer, using imported high-quality metal probe, precise and firm structure, high sensitivity, fast testing speed, good repeatability, excellent performance.

Instrument features:

• A large number of processes, the thickest can be measured to 0.1-15mm coating

• It is simple to operate, fast to test, good sensitivity, and high measurement accuracy

• The alloy probe is made of hard, durable and precise

• There are two types of measurement: continuous and single

• There are four statistical functions: maximum, minimum, average, and number of measurements

• Large-capacity storage, which can be divided into 10 groups of 200 storage, and can store a total of 2,000 data

• Storage data view and deletion function

• Three calibration methods: zero-point calibration, two-point calibration, and multi-point calibration

• Upper and lower limit alarm function (can be set in single measurement mode)

• Operation is indicated by a beep (in single measurement mode)

• Automatically identify ferrous and non-ferrous substrates

• The unit system converts μm, mil, mm

• Single and double-sided galvanized gram measurement function

• Bilingual version in Chinese and English

• 2.8-inch large color screen large-size display

• Type-C charging, large capacity lithium battery (2000mAH)

• Manual/automatic shutdown function

• USB communication or Bluetooth synchronous data transfer function (customized)

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
