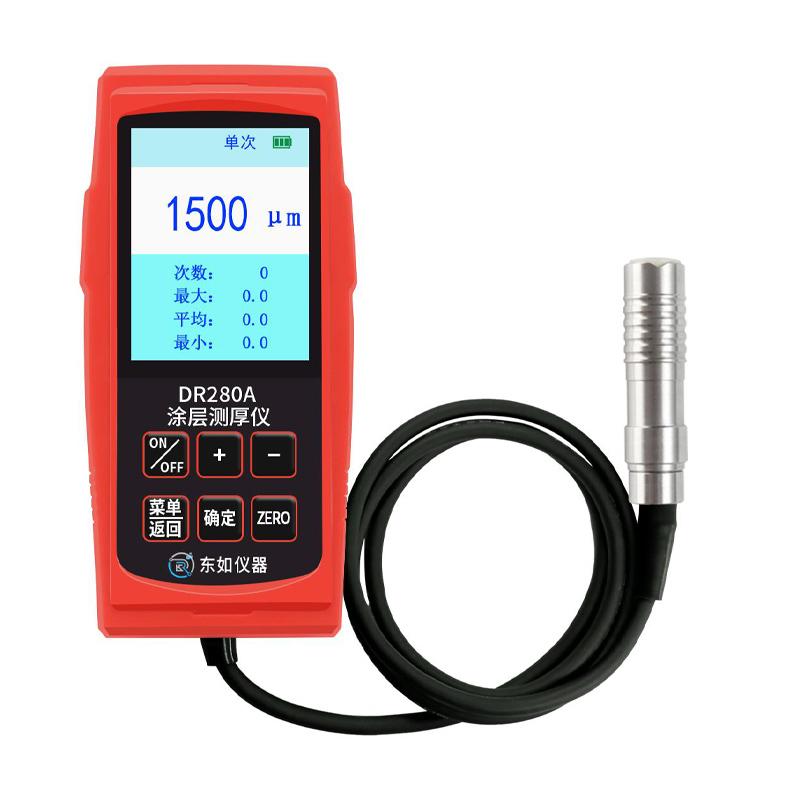

DONGRU DR280A Coating thickness gauge dual-use type, portable rechargeable nondestructive testing

Product Introduction

DR280A coating thickness gauge is a portable and rechargeable dual-purpose coating thickness gauge, according to the national industry: GB/T 4956-2003, GB 4957-2003 standards professional measurement of the thickness of metal material surface coating coating cover object professional non-destructive testing instrument, simple to use, easy to carry, large LCD screen, large font size, backlight direct reading clearer, using imported high-quality metal probe, precise and firm structure, better repeatability, good performance. Different measurement methods can be used depending on the metal matrix.

A: The magnetic thickness measurement method can non-destructively measure the thickness of non-magnetic cladding on magnetic metal substrates (such as: steel, iron) (such as: galvanizing, chrome, inlay, enamel, rubber, powder, paint, electrophoresis, enamel, spraying, coating, etc.).

B: Eddy current thickness measurement method, which can non-destructively measure the thickness of non-conductive cladding (such as: paint, powder, plastic, rubber, enamel, enamel, electrophoresis, etc.) on non-magnetic metal matrix (such as: aluminum, copper, stainless steel).

Applications:

It is widely used in the coating industry, manufacturing industry, metal processing industry, chemical industry, commodity inspection and other testing fields.

Instrument features:

• It is simple to operate, fast to test, good sensitivity, and high measurement accuracy

• The alloy probe is made of hard, durable and precise

• There are two types of measurement: continuous and single

• There are four statistical functions: maximum, minimum, average, and number of measurements

• Large-capacity storage, which can be divided into 10 groups of 200 storage, and can store a total of 2,000 data

• Storage data view and deletion function

• Three calibration methods: zero-point calibration, two-point calibration, and multi-point calibration

• Upper and lower limit alarm function (can be set in single measurement mode)

• Operation is indicated by a beep (in single measurement mode)

• Automatically identify ferrous and non-ferrous substrates

• The unit system converts μm, mil, mm

• Single and double-sided galvanized gram measurement function

• Bilingual version in Chinese and English

• 2.8-inch large color screen large-size display

• Type-C charging, large capacity lithium battery (2000mAH)

• Manual/automatic shutdown function

• USB communication or Bluetooth synchronous data transfer function (customized)

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
