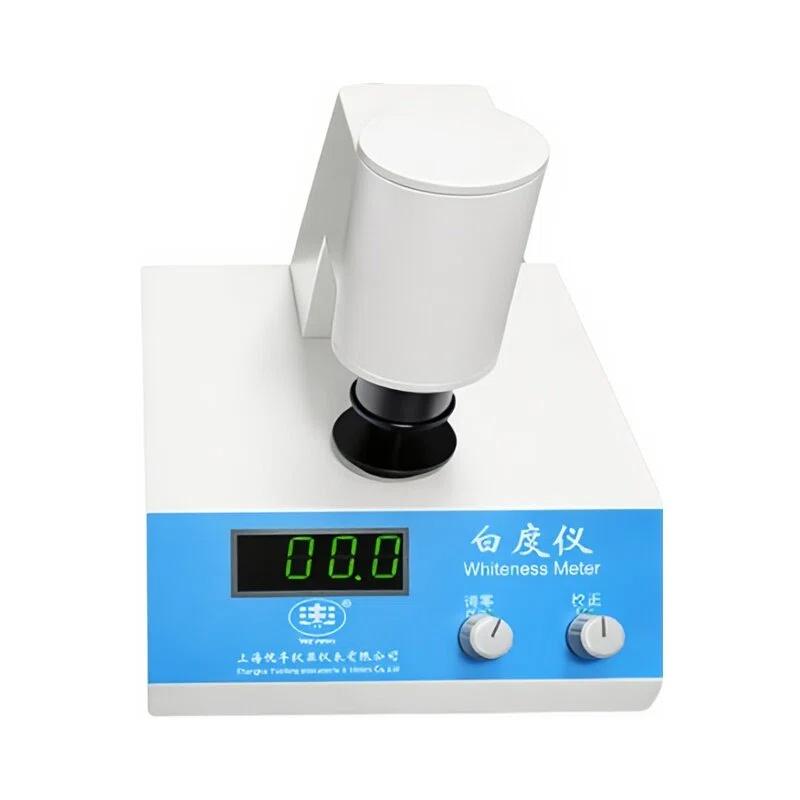

YUE FENG SBDY-1N digital whiteness meter, blue light whiteness R457 measurement
Blue light whiteness R457 measurement, Measurement range 0-100, resolution 0.1, simple optical path design to avoid light leakage, the use of imported components to ensure long-term stable work.
YUEFENG
SBDY-1N
-
JINGKELIAN WSB-2Y digital Whiteness Instrument, desktop digital fluorescent Whiteness Instrument
$ 419.00 -
YUE FENG SBDY-3P digital Whiteness Meter, blue light whiteness R457
$ 522.00 -
CHINA NBC-5635 whiteness Tester, digital whiteness Tester paper, Spinning & weaving product whiteness Tester
$ 1139.00 -
CHENCHI BD-48 paper Whiteness meter measurement aperture Φ30mm
$ 1309.00 -
TRUIT TR 1361 Benchtop Whiteness Meter
$ 666.00
Product features:
SBDY-1P and SBDY-3P have RS232 communication interface, which can be used to connect to printers.
It adopts high-efficiency, low-loss switching power supplies for higher reliability.
Adopt high-quality imported elements to make the work more stable and the service life longer.
It adopts a simple optical path design, which is easier to use and maintain.
Adopting a reasonable specimen holder and movable platform design, it can effectively avoid the light leakage phenomenon of the measurement orifice.
The national calibration whiteboard is used to transmit the correction value to make the measured value more accurate.
YUEFENG SBDY-1N Digital whiteness MeterSpecifications
| LIST | VALUE |
|---|---|
| Specifications | key |
| Illuminant | LED Approximation D65 Illuminant |
| display screen | LCD liquid crystal |
| Whiteness formula | Blue light whiteness WB = R457 |
| Measurement aperture | φ30mm |
| display value | 0~499 |
| Measurement range | 0~100 |
| resolution | 0.1 |
| Indication drift | ≤+0.2/10min;0.3/60min |
| Zero drift | ≤+0.2/10min;0.3/60min |
| Stability | ≤+0.2/10min;0.3/60min |
| Repeatability | ≤+0.2 |
| Ambient Temperature | 0℃~+40℃ |
| Environmental humidity | <85%RH |
| AC power supply | 220V+10% 50Hz±1Hz |
| power consumption | Less than 20VA |
| Weight/Volume | Net weight 3.6kg; gross weight 5.0kg/Encasement 395x330x330 (mm) |
YUEFENG SBDY-1N Digital whiteness Meter Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
