YUE FENG SBDY-3N digital whiteness meter, blue light whiteness R457 measurement
Using LED approximation D65 Illuminant, measurement of blue light whiteness WB = R457, resolution of 0.01, indication drift ≤ 0.1/10 min, simple optical path design effectively avoids light leakage.
YUEFENG
SBDY-3N
-
JINGKELIAN WSB-2Y digital Whiteness Instrument, desktop digital fluorescent Whiteness Instrument
$ 422.00 -
YONGLIDA SBDY-I digital display Whiteness Meter 0-100%
$ 479.00 -
JINGWEN JW122-1 Whiteness Analyzer desktop Whiteness Meter
$ 1272.00 -
CHNSPEC WSB-2 Whiteness Meter, with screen enhancement, over-Measurement
$ 260.00 -
Qiwei WSB-1 Portable Whiteness meter Blue light whiteness WB = R457
$ 228.00
Product features:
SBDY-1P and SBDY-3P have RS232 communication interface, which can be used to connect to printers.
It adopts high-efficiency, low-loss switching power supplies for higher reliability.
Adopt high-quality imported elements to make the work more stable and the service life longer.
It adopts a simple optical path design, which is easier to use and maintain.
Adopting a reasonable specimen holder and movable platform design, it can effectively avoid the light leakage phenomenon of the measurement orifice.
The national calibration whiteboard is used to transmit the correction value to make the measured value more accurate.

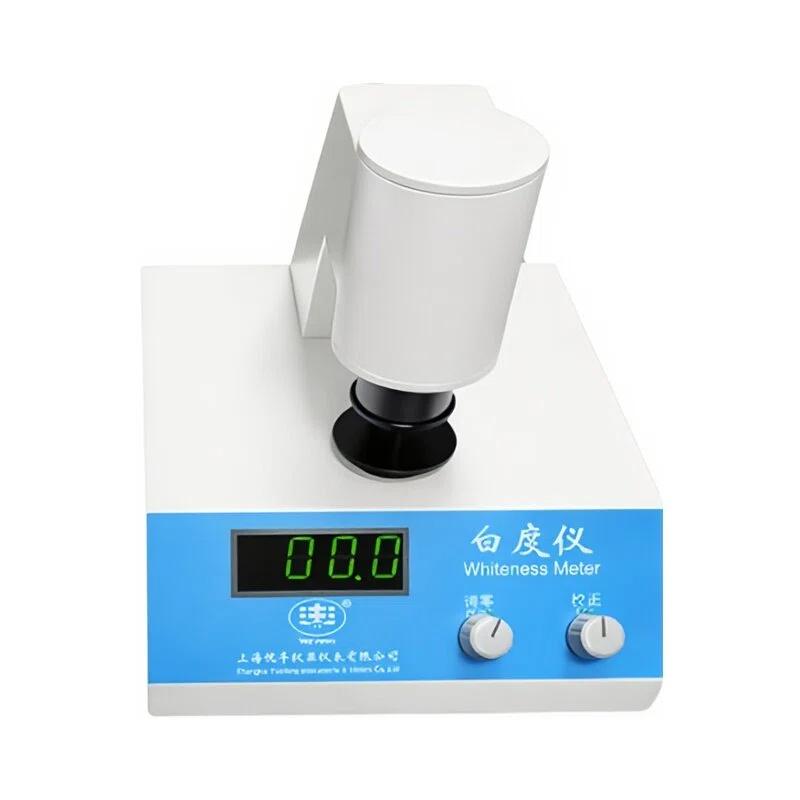

YUEFENG SBDY-3N Digital whiteness MeterSpecifications
| LIST | VALUE |
|---|---|
| Specifications | key |
| Illuminant | LED Approximation D65 Illuminant |
| display screen | LCD liquid crystal |
| Whiteness formula | Blue light whiteness WB = R457 |
| Measurement aperture | φ30mm |
| display value | 0~499 |
| Measurement range | 0~100 |
| resolution | 0.01 |
| Indication drift | ≤+0.1/10min;0.2/60min |
| Zero drift | ≤+0.1/10min;0.2/60min |
| Stability | ≤+0.1/10min;0.2/60min |
| Repeatability | ≤+0.1 |
| Ambient Temperature | 0℃~+40℃ |
| Environmental humidity | <85%RH |
| AC power supply | 220V+10% 50Hz±1Hz |
| power consumption | Less than 20VA |
| Weight/Volume | Net weight 3.6kg; gross weight 5.0kg/Encasement 395x330x330 (mm) |
YUEFENG SBDY-3N Digital whiteness Meter Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
