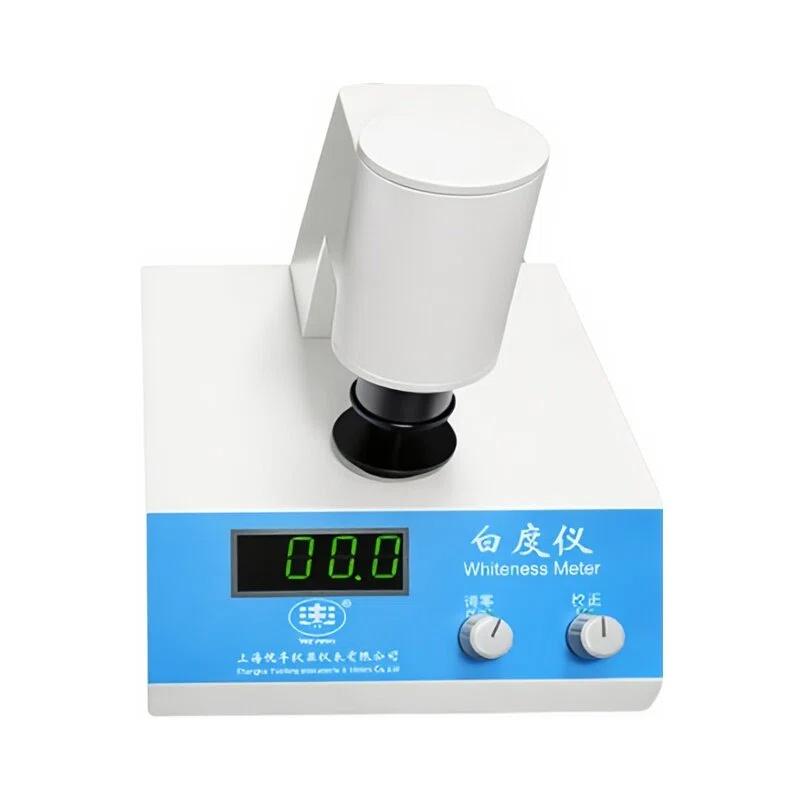

YUE FENG SBDY-3PN digital whiteness meter, blue light whiteness R457 measurement aperture 30mm
Using blue light whiteness R457 formula and φ 30mm measurement aperture, equipped with LED approximation D65 Illuminant, measurement Repeatability ≤ 0.1, Stability is high and easy to operate.
YUEFENG
SBDY-3PN
-
YANTE XT-48B Whiteness Analyzer fluorescence whiteness powder Whiteness Meter
$ 918.00 -
QILI MN-BII Wet and dry dual-use Blackness instrument
$ 739.00 -
Qiwei WSB-3 Desktop Microcomputer Whiteness meter
$ 347.00 -
3NH NR4520 whiteness Tester
$ 770.00 -
YONGLIDA SBDY-II digital display portable Whiteness Meter 0-199.9%
$ 319.00
Product features:
SBDY-1P and SBDY-3P have RS232 communication interface, which can be used to connect to printers.
It adopts high-efficiency, low-loss switching power supplies for higher reliability.
Adopt high-quality imported elements to make the work more stable and the service life longer.
It adopts a simple optical path design, which is easier to use and maintain.
Adopting a reasonable specimen holder and movable platform design, it can effectively avoid the light leakage phenomenon of the measurement orifice.
The national calibration whiteboard is used to transmit the correction value to make the measured value more accurate.
YUEFENG SBDY-3PN Digital whiteness MeterSpecifications
| LIST | VALUE |
|---|---|
| Specifications | Button with print port |
| Illuminant | LED Approximation D65 Illuminant |
| display screen | LCD liquid crystal |
| Whiteness formula | Blue light whiteness WB = R457 |
| Measurement aperture | φ30mm |
| display value | 0~499 |
| Measurement range | 0~100 |
| resolution | 0.01 |
| Indication drift | ≤+0.1/10min;0.2/60min |
| Zero drift | ≤+0.1/10min;0.2/60min |
| Stability | ≤+0.1/10min;0.2/60min |
| Repeatability | ≤+0.1 |
| Ambient Temperature | 0℃~+40℃ |
| Environmental humidity | <85%RH |
| AC power supply | 220V+10% 50Hz±1Hz |
| power consumption | Less than 20VA |
| Weight/Volume | Net weight 3.6kg; gross weight 5.0kg/Encasement 395x330x330 (mm) |
YUEFENG SBDY-3PN Digital whiteness Meter Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
