YKFS-600 Disperser DC series, frequency conversion speed regulation, hand lift 0-2800r/min
Adopting 600W motor, it provides a wide range of frequency conversion speed regulation from 0 to 2800r/min, and cooperates with a hand-cranked lifting mechanism for stable operation and flexible adjustment, making it suitable for fine dispersion processes.
YaKu
YKFS-600
-
QIWEI JFS-750S Coating Variable Frequency Disperser Electric Lift 550w
$ 701.00 -
Qiwei GFJ-0.7 (GFJ-750) Coating Disperser high-speed frequency conversion, with 2.5L single-layer barrel
$ 666.00 -
MUXUAN XD-F550 Experimental Stirring Grinding Disperser Brushless DC Variable Frequency Motor
$ 790.00 -
Qiwei FS400D Lab High Speed Disperser 400W
$ 323.00 -
Huxi HR-1100JFS Disperser
$ 906.00
Product Introduction
The disperser belongs to the DC series, which is a professional equipment with convenient hand-cranked lifting as its core feature, taking into account strong power and flexible operation. The equipment is adapted to AC220V/50HZ standard voltage and is equipped with a maximum power of 600W motor, which is abundant and can meet the efficient dispersion needs of a variety of materials. The speed range covers 0-2800r/min, and with the frequency conversion speed regulation method, it can accurately adapt to the dispersion process of different materials to ensure that the dispersion effect is stable and controllable.
Parameters
| model | YKFS-600 | Hand-cranked lifting model |
| Operating voltage | AC220V/50HZ | |
| Motor maximum power | 600W | |
| Speed range | 0-2800r/min | |
| speed regulation method | Frequency conversion speed regulation | |
| Height of the whole machine | 720mm | |
| Lifting stroke | 0-360mm | |
| Dispersion axis | 300mm | |
| Dispersion disk | Diameter Φ80mm | |
| Lifting mode | Hand crank lifting | |
| The weight of the whole machine | 18Kg | |
| Overall machine size | 350*350*720mm | |

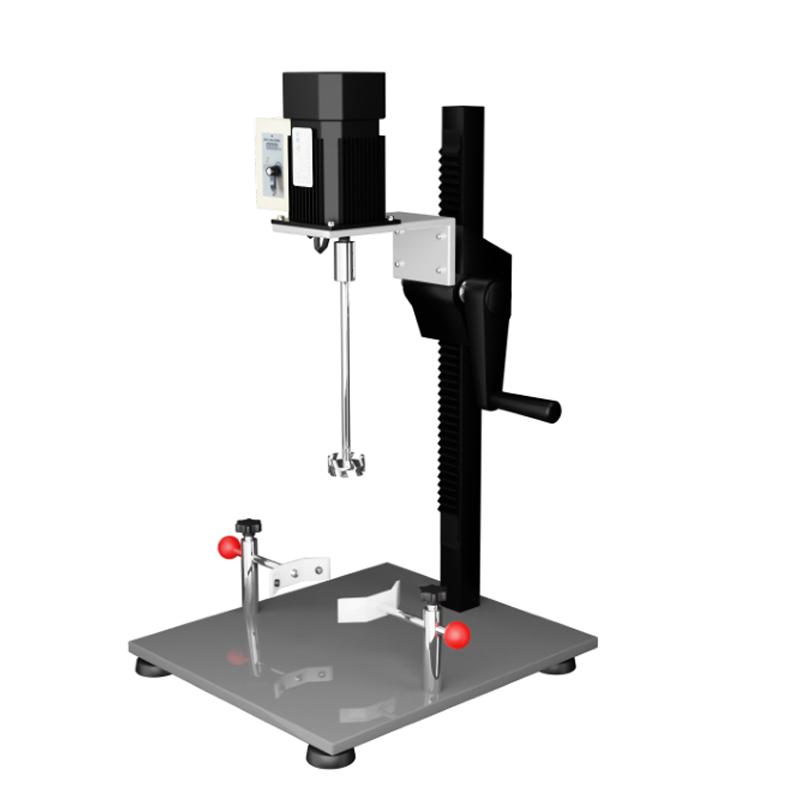

YaKu YKFS-600 Disperser (DC series)Specifications
| LIST | VALUE |
|---|---|
| operating voltage | AC220V/50HZ |
| Motor maximum power | 600W |
| Speed range | 0-2800r/min |
| Speed regulation mode | Frequency conversion speed regulation |
| Overall height | 720mm |
| Lifting stroke | 0-360mm |
| dispersion axis | 300mm |
| dispersion disk | Diameter φ 80mm |
| Lifting method | Hand lift |
| Machine weight | 18Kg |
| Machine size | 350*350*720mm |
YaKu YKFS-600 Disperser (DC series) Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
