Product Introduction

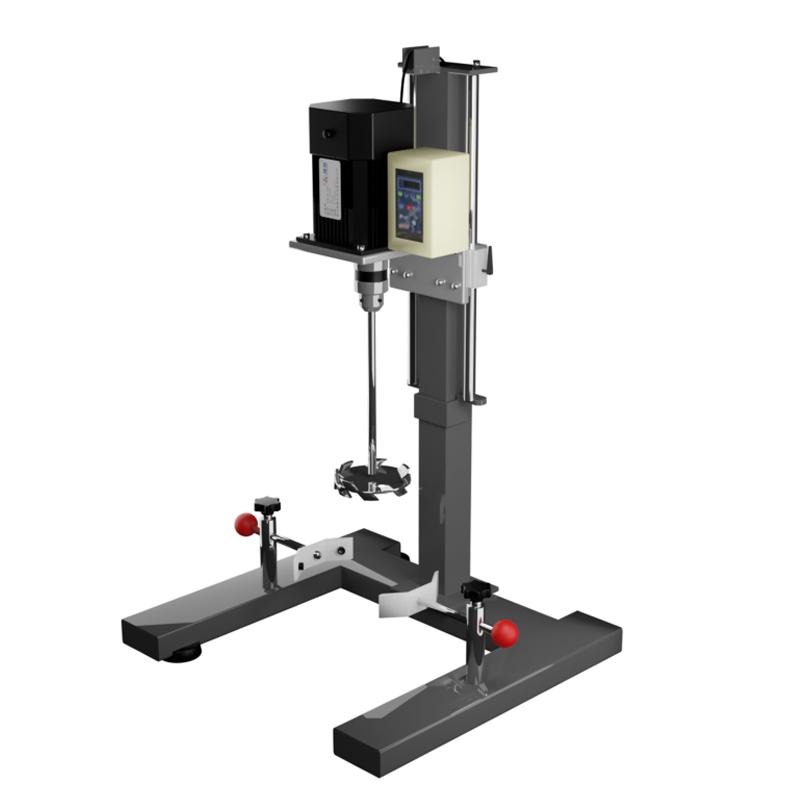

YKFS-800 chuck DC series disperser, suitable for AC220V/50HZ voltage, the maximum power of the motor is 800W, and the speed can be adjusted in the range of 0-1300r/min; It adopts manual lifting mode, lifting stroke 0-420mm, equipped with 350mm long 304 stainless steel dispersion shaft and diameter ø100mm dispersion disc, the size of the whole machine is 490430930mm, and the weight is 25Kg, which is suitable for all kinds of material dispersion operations.
Parameters
| model | YKFS-800 | Chuck model |
| Operating voltage | AC220V/50HZ | |
| Motor maximum power | 800W | |
| Speed range | 0-1300r/min | |
| Lifting mode | Manual lifting | |
| Overall machine size | 490*430*930mm | |
| Lifting stroke | 0-420mm | |
| Dispersion axis | 350mm (304 stainless steel) | |
| Dispersion disk | Diameter ø100mm | |
| The weight of the whole machine | 25Kg | |
YaKu YKFS-800 Disperser (DC series)Specifications
| LIST | VALUE |
|---|---|
| operating voltage | AC220V/50HZ |
| Motor maximum power | 800W |
| Speed range | 0-1300r/min |
| Lifting method | Manual lift |
| Machine size | 490*430*930mm |
| Lifting stroke | 0-420mm |
| dispersion axis | 350Mm (304 stainless steel) |
| dispersion disk | Diameter ø100mm |
| Machine weight | 25Kg |
YaKu YKFS-800 Disperser (DC series) Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
