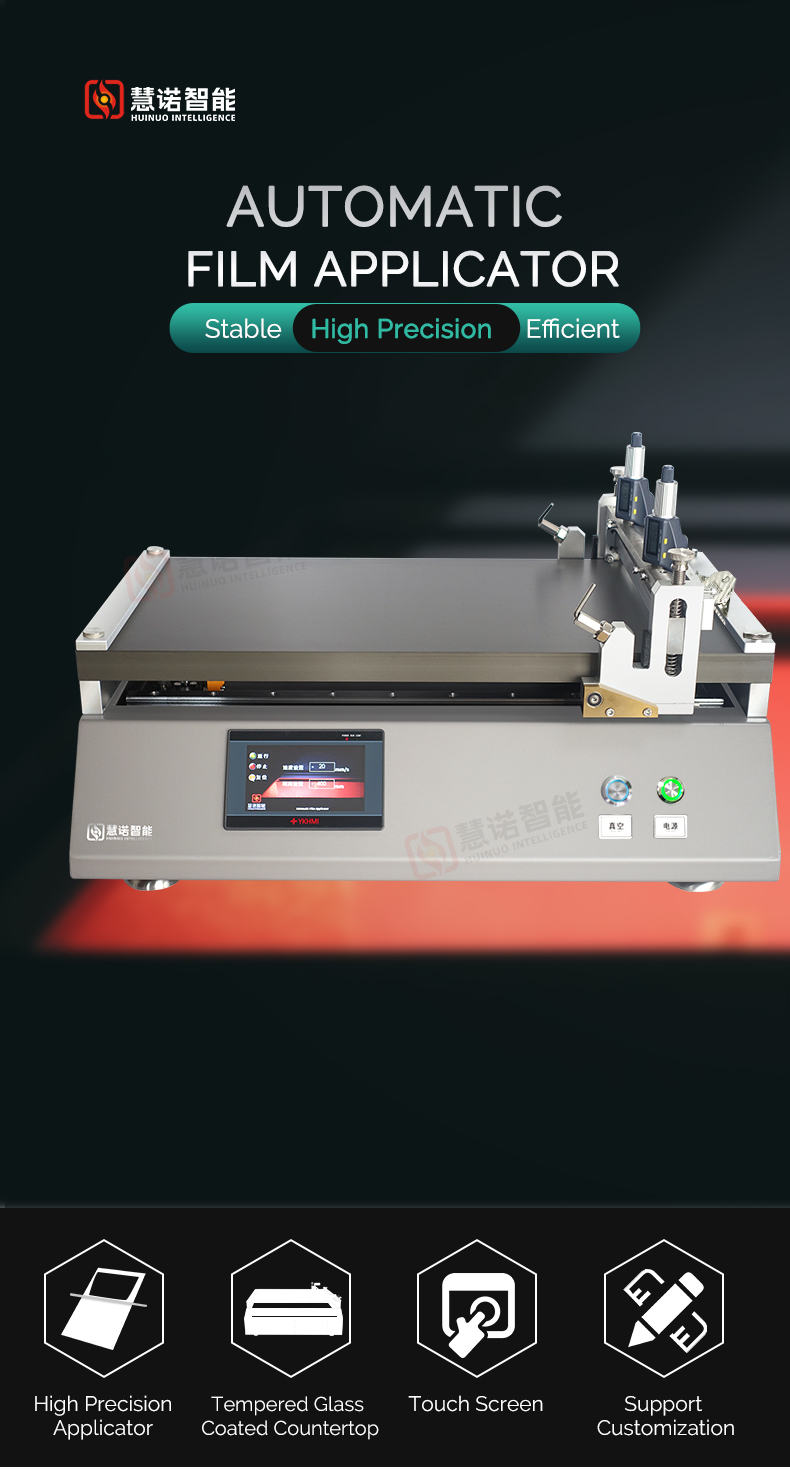

HuiNuo TM3200Pro/15D Automatic Film Applicator bar drawdown blade coater effective coating area 100 * 70cm
Using bar and drawdown blade coating methods, the coating speed is 1~ 300mm/s stepless speed regulation, and the Spreader accuracy is +/- 0.003mm. The clamshell drawdown blade design is easy to clean, and the Vacuum chuck function is stable to fix the soft substrate.
HuiNuo
TM3200pro/15D
-
China Vacuum chuck coater TBJ-X2-XB bar + Drawdown blade with imported bar
$ 3102.00 -
HuiNuo TM3200AF/09D Floor Type Multifunctional Film Applicator drawdown Bar & Blade Spreader Vacuum adsorption Automatic feeding 80 * 70cm
Login -
China Vacuum chuck drawdown Bar & blade heating integrated Lab Film Applicator TBJ-X3-DJ1 with imported bar
Login -
China Perovskite Film Applicator TBJ-X4-ABO4 drawdown Bar & blade heating coater with air knife
$ 4268.00 -
HuiNuo TM1000/05 Bar Coater Automatic Film Applicator effective coating area 800 * 500mm
$ 3646.00
Product Overview:
Automatic film coating machine is a device used to coat film in the laboratory, replacing manual film coating, automating the film coating, and improving the accuracy and efficiency of film coating. The working principle of the experimental automatic film coating machine is to evenly coat the sample on the substrate by controlling the coating head and coating parameters, forming the desired film.
This coating machine is a wire rod scraper coating machine, using two coating methods of wire rod and scraper, with vacuum adsorption function, the new line rod installation method and clamshell scraper head greatly improve the coating efficiency, easy to clean, support speed control and coating length adjustment, suitable for high-precision automatic coating in the laboratory, in university research institutes, new materials, lithium batteries, glue, hot melt glue and other laboratories for film proofing.
Product Use:
The coating machine is suitable for coatings, inks, paints, pastes, hot melt adhesives, lithium batteries, pressure-sensitive adhesives, resins, glues, polymer materials, etc., and can be scraped on films, cardboard, aluminum foil and copper foil.

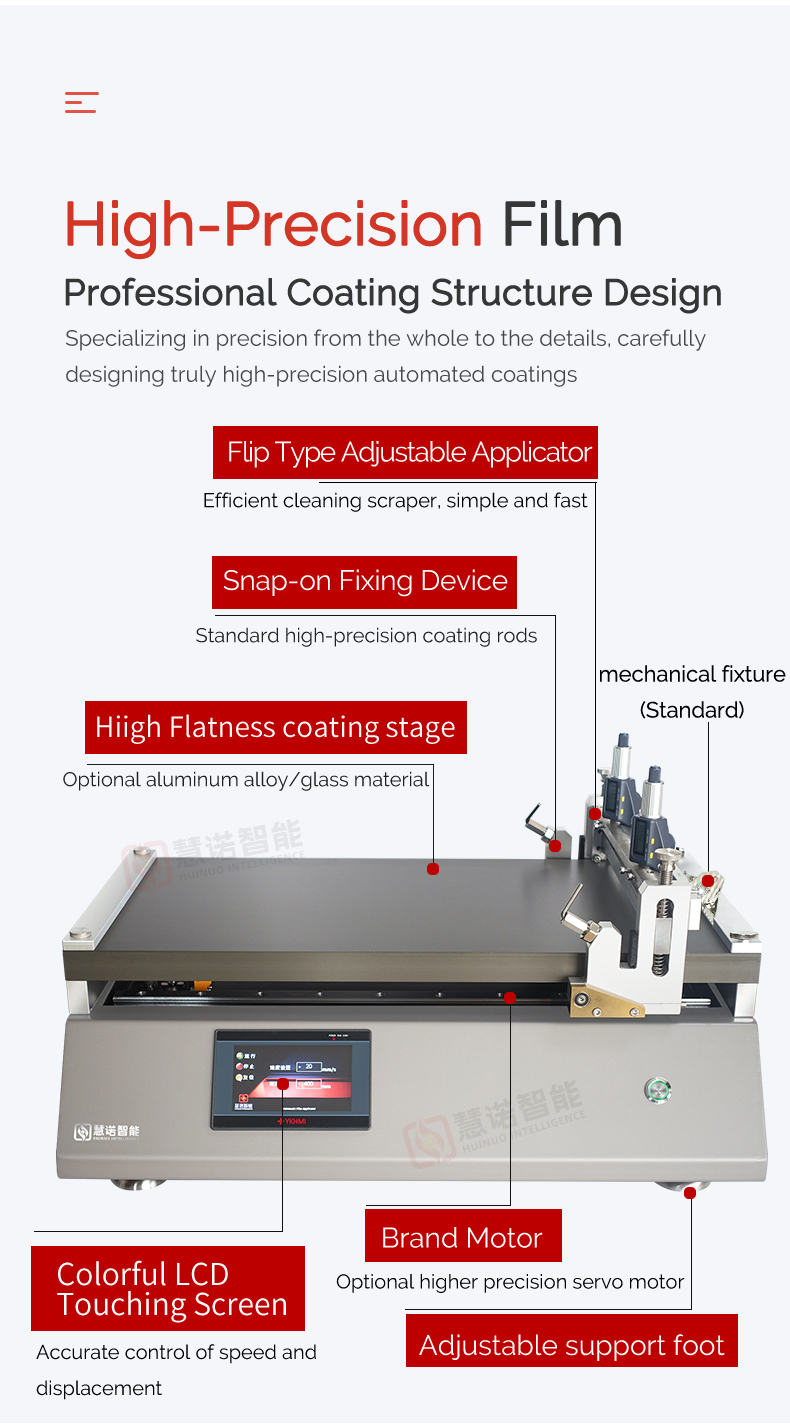

Product features:

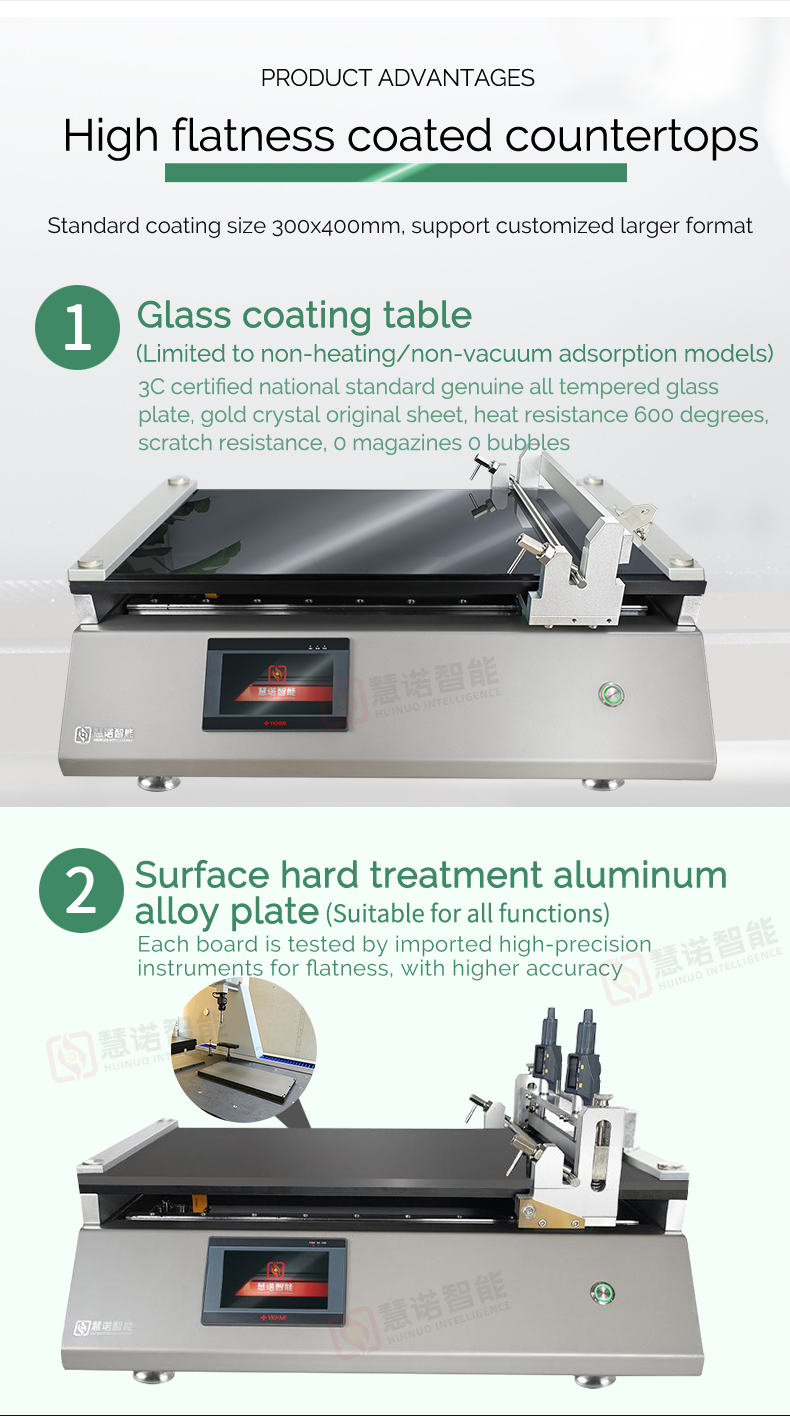

1) Surface hard treatment aluminum alloy countertop, high hardness and wear resistance, and the flatness of the countertop is tested by imported high-precision instruments
2) Big brand differential adjuster, high film thickness control accuracy

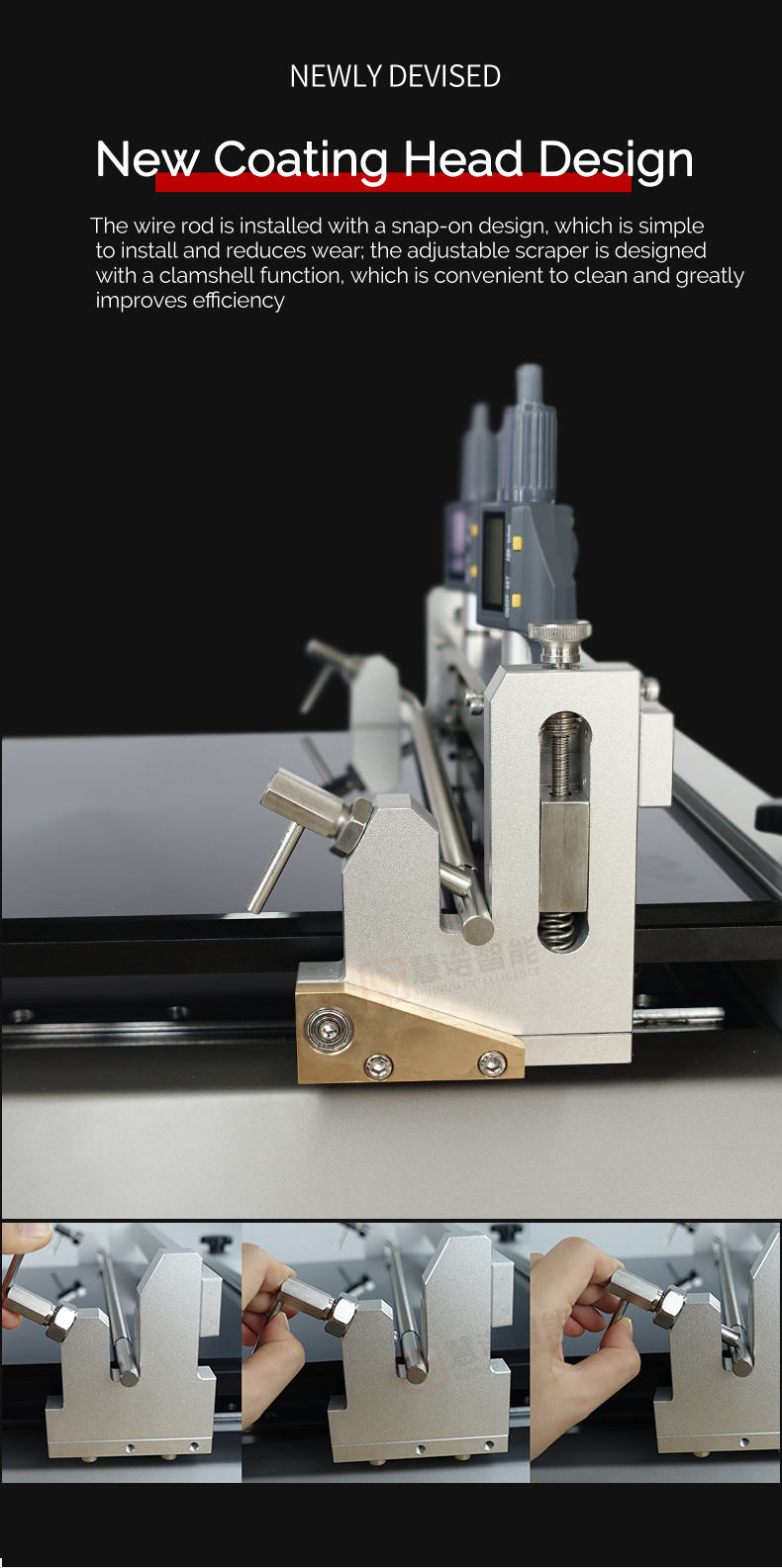

3) Clamshell scraper coating head, easy to clean
4) Equipped with high-precision film applicator, the original imported wire rod coating film is uniform and high accuracy
5) Touch screen control panel, easy to operate
6) The coating length and coating speed can be adjusted freely

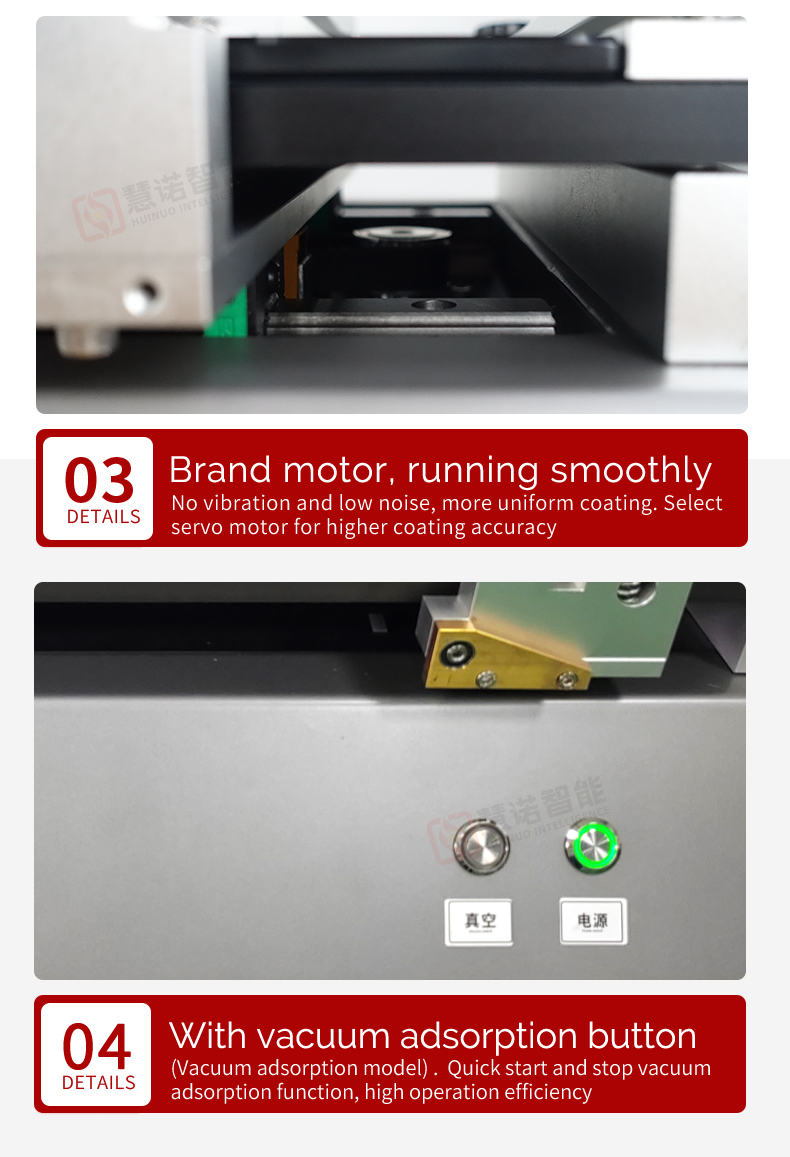

7) With vacuum adsorption function, it is suitable for coating soft substrates such as films
HuiNuo TM3200pro/15D Automatic Film ApplicatorSpecifications
| LIST | VALUE |
|---|---|
| coating method | Bar + drawdown blade |

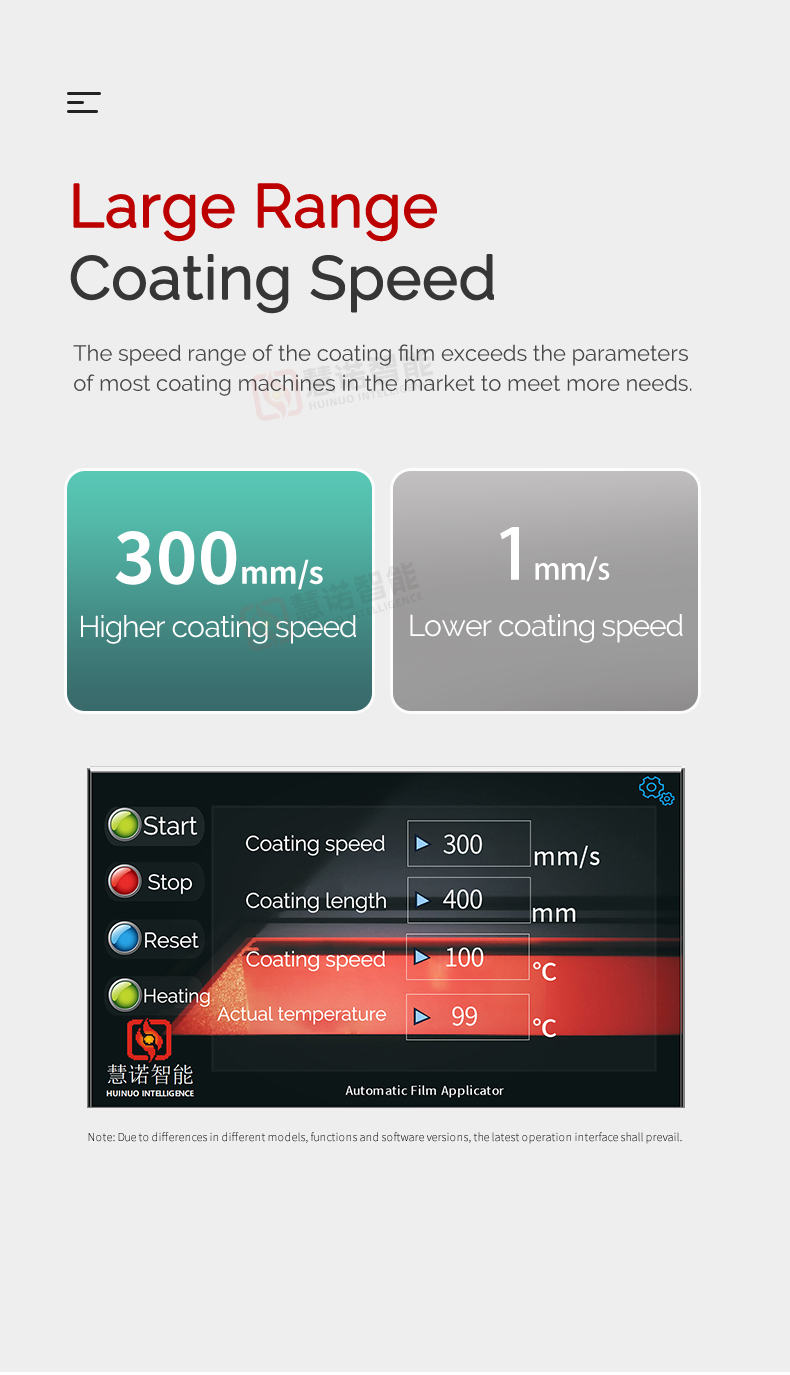

| coating speed | 1~ 300Mm/s stepless speed regulation (can be customized) |
| Substrate clamping method | Vacuum chuck + fixture |
| Coating table material | Surface hard treatment aluminum alloy |
| Coating table size | 1240*730mm |
| effective coating area | 1000 * 700Mm (can be customized) |
| meyer rod coating thickness range | Different bar sizes have different thicknesses, with High Accuracy imported bars |
| meyer rod coating accuracy | ±0.003mm |
| Blade Coating Thickness Range | 0.1~ 10Mm (clamshell design is easy to clean) |
| Drawdown blade material | Die steel |
| Blade Coating Width | 700Mm (width adjustment accessories can be added) |
| Blade Coating accuracy | ±0.003mm |
| Vacuum Area | 1080 * 660Mm (can be customized) |
| Vacuum aperture diameter | Φ0.8mm |
| Vacuum hole pitch | 20*20mm |
| Vacuum pump pumping rate | 5.4m3/h |
| Ultimate vacuum degree | 50KPa |
| Vacuum Pump Power | 180W |
| Vacuum pump weight | 7.1kg |
| Drive motor | Servo motor |
| Power | 600w |
| Operating language | Chinese (can be customized in English) |
| display screen | Color LCD Touchscreen |
| Host power supply | 220V/50HZ (can be customized 110V/60HZ) |
| Dimension | 1260*840*940mm |
HuiNuo TM3200pro/15D Automatic Film Applicator Packing list
Film Applicator x1, bar x1, drawdown blade x1, vacuum pump x1, manual x1, certificate x1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
