Factory direct sales Rvaxb-02/300 micro-concave bar coil coater 300mm wide, precision Spreader drying
Effective application width 300mm, Spreader uniformity CV value ≤ 3%, with bar and micro gravure plate roller two switchable coating method, oven temperature adjustable to 150 ℃, support full closed loop tension control, suitable for flexible substrate precision wet-film Spreader and drying.
Factory
Rvaxb-02/300
-
CHINA Rjy-01/200dc Immersion Crystallization coater Continuous Film Applicator
$ 46708.00 -
Taigang TG-RR300 laboratory roll-to-roll small coater small hot-melt adhesive coater
$ 5978.00 -
Taigang Rgd-300TS Double-sided Coil Film Applicator Guide Roller Width 300mm oven length 1m
$ 38935.00 -
CHINA Small hot-melt adhesive Continuous Film Applicator NBC-6025H Continuous coater, baseplate heating + drawdown blade heating
$ 5201.00 -
NBC-SNJ500 touch screen hydrogel coater with slitting
Login
Product Introduction

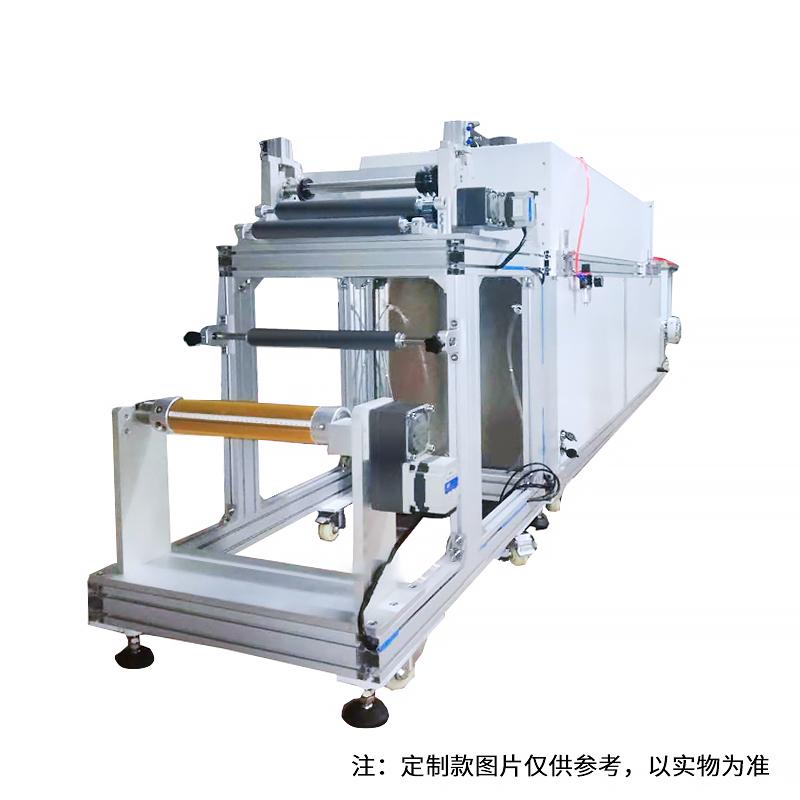

Rvaxb-02/300 Micro Concave Wire Rod Coil Coating Machine is a precision coating machine with an effective coating width of 300mm, which integrates automatic unwinding, feeding, wire rod/micro-concave scraping, drying, correction and winding functions in one of the technical requirements, performance parameters, structure and configuration. The equipment is designed for laboratory research and development or small-batch production, suitable for the preparation of high-precision coating materials such as slurries, adhesives, optical films, etc., requiring stable operation, uniform coating, and precise control.
Overall technical requirements
Equipment Use: Used for precise and uniform wet film coating and drying on flexible substrates such as film, paper, and metal foil.
Operating mode: Continuous roll-to-roll production.
Design concept: modular design, ergonomic operation, perfect safety protection, easy maintenance and cleaning.
Control core: Integrated control with industrial PLC and high-precision servo system, equipped with color touch screen (HMI) human-machine interface.
Key indicators: high uniformity of coating thickness, good drying effect, stable tension control, neat unwinding and unwinding.
Assistive systems
Pneumatic system: Provide air source for correction, scraper lifting, belt splicing and other actions, working pressure 0.5-0.7 MPa.
Exhaust system: Exhaust duct interface (Φ150mm) is equipped at the top or tail of the oven.
E-stop: Install an E-stop button.
Performance and accuracy metrics
Coating uniformity (CV value): ≤ 3% (dependent on slurry properties and process optimization).
Drying effect: After the substrate leaves the oven, the coating should be surface dry or solid, without residual solvent (according to the process requirements).
Rewinding neatness: End face staggered ≤ ±1 mm.
Repeatable positioning accuracy: Each servo axis is accurately positioned.
Noise: The device operates normally with noise ≤ 75 dB(A).
Safety and environmental protection requirements
Electrical safety: grounding protection, short circuit protection, overload protection, insulation protection.
Exhaust gases: The oven exhaust vent can be connected to the external ventilation duct.
Material: Corrosion-resistant materials (e.g., SUS304 stainless steel) for the part in contact with the slurry.
Factory Rvaxb-02/300 Micro-concave bar coaterSpecifications
| LIST | VALUE |
|---|---|
| Process flow | Unwinding → automatic feeding → bar + micro-concave scratch coating → drying for 2 meters → deviation correction → winding |
| substrate specification | / |
| Maximum substrate width | 320 mm |
| Effective application width | 300 mm (adjustable) |
| Substrate core inner diameter | 76 mm (3 inches) or 152 mm (6 inches) |
| Maximum unwinding/rewinding diameter | ≤ Φ600 mm |
| substrate thickness | 0.01~ 0.5 mm (adjustable according to material characteristics) |
| Spreader header module | / |
| coating method | Bar scraping, with micro gravure plate roller painting cloth, switchable design. |
| Bar Specifications | Equipped with different winding wire diameter bar (such as #XX, #XX series), to meet the needs of different wet film thickness, quick replacement. |
| Micro gravure plate roller | / |
| Roll surface width | ≥320mm |
| Type of hole and number of lines | According to the common process configuration (such as 180 mesh, 200 mesh, etc.), order confirmation specifications. |
| material | High strength steel or ceramic platings, wear and corrosion resistance. |
| Back roller (Spreader roller) | Diameter: φ 150 - 200 mm (hard rubber or metal coated, Shore Hardness can be specified). Drive: The main drive servo motor is driven by a precision gear reducer. Runout accuracy: ≤ 0.005 mm. |
| Oven module | / |
| Drying method | Hot air circulation drying (or customized infrared, vacuum drying according to needs). |
| Drying channel length | 2 meters (effective drying length). |
| Temperature range | Room temperature~ 150 ° C (expandable to 200 ° C). |
| Temperature control accuracy | ±3°C。 |
| heat source | Electric heating. |
| Exhaust system | Independent exhaust fan, exhaust gas can be externally piped. |
| Unwind and wind module | / |
| unwinding method | Passive unwinding + magnetic particle brake tension control |
| winding method | Active servo winding, with constant tension or taper tension control function. |
| accuracy | ±0.2 mm |
| Sensor | Photoelectric or CCD edge detection/alignment detection |
| Tying platform (optional) | Manual or pneumatic adapter table for continuous production. |
| Tension Control system | Control mode: Full closed-loop tension control (using tension Sensor or pendulum roll detection). Tension range: 2~ 50 kg (adjustable, according to process settings). Segment control: unwinding area, Spreader area, oven traction area, winding area independent control. |
| Racks and enclosures | Main frame: high-quality carbon steel square pass, solidified welding, stress relief treatment, surface spraying or painting. Panel: The main operation area adopts lame plating steel plate. |
| Electrical and Control systems | / |
| main controller | China Brand |
| Human Machine Interface | Touchscreen, Chinese interface |
| Drive system | Full servo motor drive (main drive, winding, unwinding, micro gravure plate roller, etc.) |
| Speed range | Linear speed 1~ 10 m/min (can be adjusted according to process requirements) |
| Spreader speed (commonly used) | 1 - 5 m/min。 |
| temperature control | Intelligent temperature controller, solid state relay output |
| electrical standard | Compliant with Chinese GB standards |
| Automatic feeding system | / |
| Core unit of feeding system | Feeding method: Pressure tank/pressure drum Feeding: Standard configuration, suitable for most medium and low viscosity Stocks. Gear pump/screw pump feeding: suitable for high viscosity, high Solid content or stocks containing particles, optional. |
| Pressure tank specifications: | Material: The main body of the tank is SUS304 stainless steel, the inner wall is mirror polished (Ra ≤ 0.4μm), easy to clean and anti-corrosion. Volume: Standard configuration 10L (10L, 30L or 50L can be customized according to the process consumption). Design pressure: ≥ 0.6 MPa, with safety pressure relief valve. |
Factory Rvaxb-02/300 Micro-concave bar coater Packing list
Machine x1, Spreader head x1, bar Spreader head x1, automatic feeding system x1, manual x1, certificate x1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
