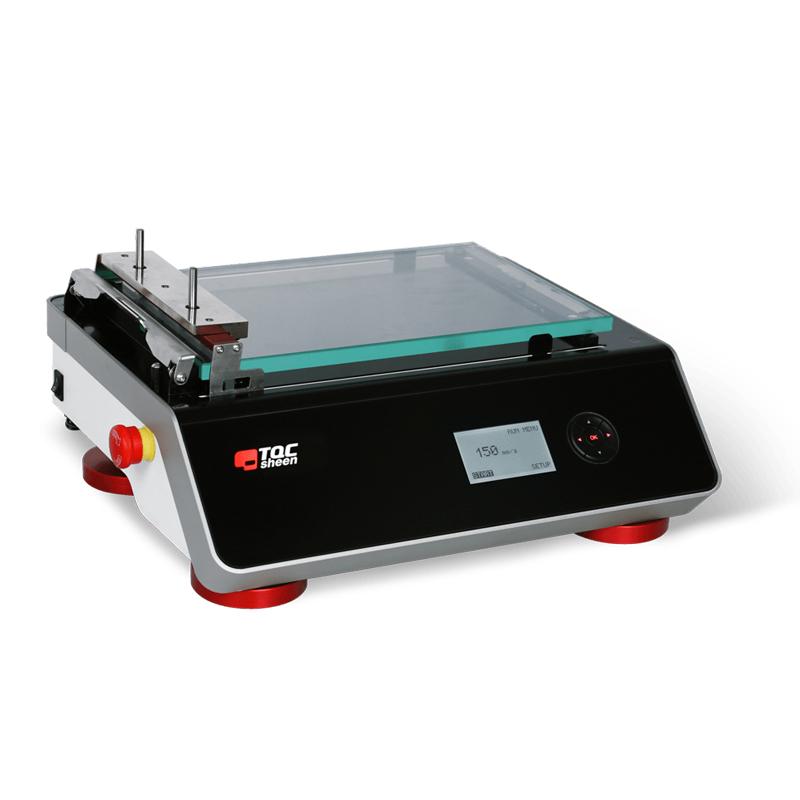

TQC sheen AB3652 Automatic Film Applicator

TQC sheen AB3652 Small Automatic Film Applicator film speed 1-150mm/s

The film speed can be precisely adjusted from 1 to 150mm/s with a speed accuracy of better than 1%. Compatible with standard block and spiral bar film applicators and equipped with a replaceable vacuum bed. Operating interface is simple and intuitive.

Brand

SKU: NB050753

TQC sheen

Model

AB3652

Price

$ 5978.00

Promotion

Service

The delivery and service By NBchao.Com

Get Quote

TQC sheen shop

Information

Datasheet RFQ Contract

What else did others buy

Genuinegoods

TQC sheen AB3652 Automatic Film ApplicatorOverview
Specifications
Comments
FAQs

AB3652

Automatic Film Applicator

Product Introduction

The TQC Sheen Compact Automatic Film Applicator provides a reliable and repeatable basis for applying coatings and paints to test charts, panels or foils.

Our versatile film applicator is suitable for A4 size charts and can be set to a coating speed of 1 to 150mm/s. You get guaranteed and reproducible film coating, so it's a reliable choice for laboratory experiments. Additionally, it can be equipped with replaceable glass or perforated vacuum beds.

All of our automatic applicators can be used with standard block applicators such as the Bird and Baker models or spiral rod applicators (wire wound type).

Features:

A4 size chart
Coating speed 1 to 150mm/s
Compatible with a wide range of application tools
Simple and intuitive interface
Removable drill plate
Safe 24 VDC power supply
Replaceable beds

Meet the standards

ASTM D823

TQC sheen AB3652 Automatic Film ApplicatorSpecifications

LIST	VALUE
traverse speed	1-150mm/s
Speed accuracy	Better than 1%
stroke length	250mm
Maximum test drawing size	DIN A4
Maximum test substrate thickness	8Mm, with coating
Maximum application width	200mm
Maximum test panel size (height including coating)	300x200x8mm
maximum thickness	40mm
Minimum bar length	220 mm
wire diameter	6-12.7mm
Drip capacity	30ml
rate of descent	1-150mm/s
Minimum Vacuum Level Required	-100mbar
Vacuum hole diameter	1.3mm
distance between holes	22mm
Number of vacuum holes	117
Vacuum connection	6Mm connection
Size and weight	Depth: 335 mm /13, 18 in Width: 400 mm /15, 74 in Height: 190 mm/7,48 in Net weight: 12,5 kg /27, 55 lbs
power supply	24VDC
power consumption	Max. 40W
display	70X40mm, heating and lighting
Menu Language	English
control	5-Key navigation switch

TQC sheen AB3652 Automatic Film Applicator Packing list

machine x1, manual x1, certificate x1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
