YIHENG BPG-9050BH high temperature Forced Air Drying Oven volume 50L temperature control up to 400 ℃

Introduction

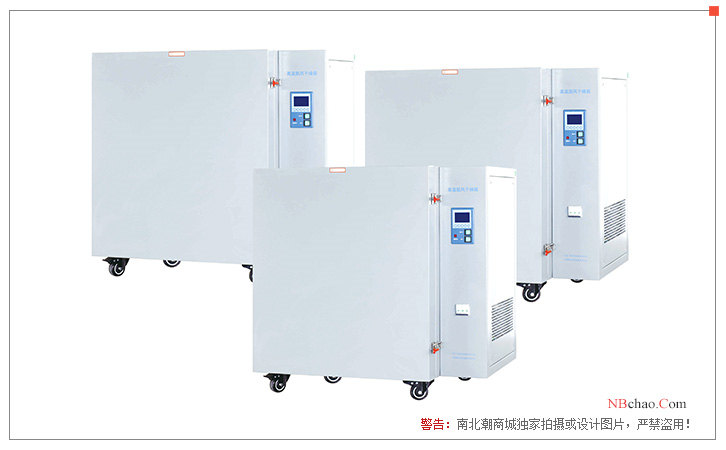

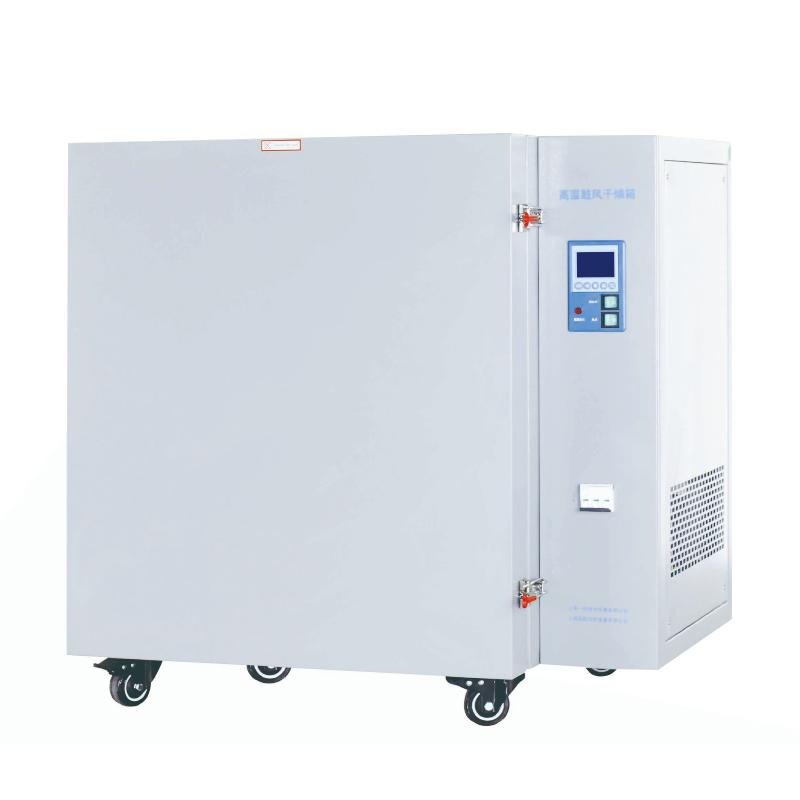

Yiheng BPG-9050BH high-temperature Forced Air Drying Oven is a laboratory Forced Air Drying Oven with ceramic fiber, and the temperature range is RT+20～400°C. The inner tank size of BPG-9050BH high-temperature Forced Air Drying Oven is 350×350×400mm , the power is 4050W.

Features

●Mirror stainless steel liner is adopted, the four corners are semi-circular transition, and the shelf bracket can be freely loaded and unloaded, which is convenient for cleaning inside the box.

● Adopt new PID fuzzy logic processing controller, quickly reach the set value and run more accurately and stably.

● The door seal is made of ceramic fiber, which can run at high temperature for a long time and has a long service life. It has obtained national patents.

● 7 groups of 63 steps can be preset, each group has 9 steps, and each group can set the time from 0 to 5999 minutes. The startup and shutdown time can be preset, and the speed of the circulating fan is adjustable.

● Multi-segment programmable control and menu-based operation interface can simplify the complex experimental process and truly realize automatic control and operation.

● Equipped with an independent temperature limit alarm system, it will be automatically interrupted when the temperature exceeds the limit, so as to ensure the safe operation of the experiment without accidents. (optional)

● It can be equipped with a printer or RS485 interface for connecting to a printer or a computer, and can record changes in temperature parameters. (optional)

plan

optional parts

1. RS485 interface and communication software

2. Independent temperature limit controller

host x1, instruction manual x1, packing list x1, warranty x1, warranty card x1, fuse x2, shelf x2, communication data cable x1, software CD x1, printing paper x1, U disk x1, UV lamp x1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
