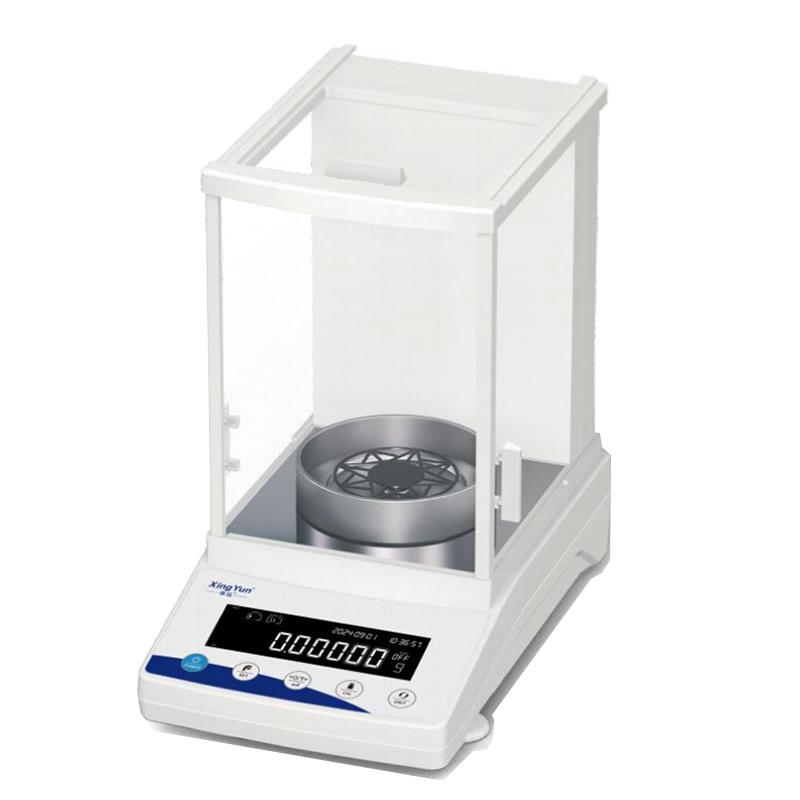

XINGYUN FA22105N-SEM Multifunctional internal calibration Semi-micro Analytical Balance Negative LCD screen Anti-static Glass
Adopt electromagnetic force equilibrating Sensor, actual Graduation up to 0.01mg, with automatic timing internal Adjustment, equipped with anti-static Glass and hollow pan to reduce interference, support RS232 communication and a variety of unit conversion.
XingYun
FA22105N-SEM
-
JINGQI FA2104N Electronic Balance 210g/0.1mg
$ 397.00 -
HUAZHI PTQ-A3 Large Range Electronic Balance Dual Range: 3kg/4kg
$ 425.00 -
SDPTOP MP51001 Electronic Balance 5100g/0.1g
$ 305.00 -
Shangtian Jingyi JA5003 One thousandth Electronic Balance Precision Electronic Balance 500g/1mg
$ 570.00 -
HUAZHI HD-A600 Precision Electronic Balance 600g/0.01g
$ 170.00
Product Introduction
FA-SEM/FA-PrO/JA-Pro is a newly developed electronic balance of Lucky Company, which adopts electromagnetic force balance sensor, fully automatic timing and internal calibration, which is more intelligent, standardized, and traceable, and is suitable for customer groups with high requirements for efficiency, accuracy, and compliance.
14 function settings
Display speed adjustment, factory reset, internal calibration time setting
Peak hold, print settings, stabilization adjustment, external calibration
Beijing time setting, zero tracking setting, GLP good lab setting
Counting function, percentage function, temperature display switch, baud rate setting
Features and advantages
Fully automatic timing internal calibration / - key calibration
The internal use of non-magnetic weights to ensure the accuracy of internal calibration
The negative LCD screen has a relatively clear interface
Anti-static transparent glass, effectively isolating static electricity
Hollow star compass scale plate reduces the impact of airflow and makes weighing more accurate
The windproof ring reduces the impact of wind on the scale pan when the door is opened sideways, and effectively reduces the impact of wind on the entire balance
RS232 communication serial port, which can be connected to printers, computers or industrial control equipment
Common unit conversion (g/mg/ct/oz)
The baud rate can be set to 1200, 2400, 4800, 9600, 19200, 38400, etc., to meet a variety of usage needs
Print Functions (Baud Rate Setting, Continuous Real-Time, Continuous Stabilization and Single Point Output Switching)
The hardware configuration and power supply design are in the back cavity to effectively shield and protect the influence of sensors on the motherboard
It can be peeled, cleared, overloaded, underloaded, and fault alarmed within the full range
Features temperature compensation, time and temperature display, good lab GLP function, automatic zero tracking settings, and more
Instrument display
XingYun FA22105N-SEM Multifunctional internal calibration Semi-Micro Analytical BalanceSpecifications
| LIST | VALUE |
|---|---|
| Capacity | 102/220g |
| Minimum Weight | 1(mg) |
| Actual Graduation d | 0.01/0.1(mg) |
| Verification scale interval e | 1(mg) |
| Repeatability (std) | 0.05/0.1(mg) |
| Repeatability (Max) | 0.1/0.2(mg) |
| linear | ±0.1/±0.2(mg) |
| Four corners (load 2g) | 0.01(mg) |
| Stabilization time | 6(s) |
| Sensitivity shift (temperature drift) | ±3ppm/°C |
| Pan Size | 80(mm) |
| Operating environment | 18~23,45~65%(°C) |
| Calibration method | internal calibration |
| show | LCD negative display |
| GMP/GLP | meet |
| power supply | 220V 50Hz;110V 60Hz |
| interface mode | RS232 |
| Host size | 370x205x351(MM) |
| Packaging Dimensions | 500x380x520(MM) |
| gross weight | 10kg |
XingYun FA22105N-SEM Multifunctional internal calibration Semi-Micro Analytical Balance Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
