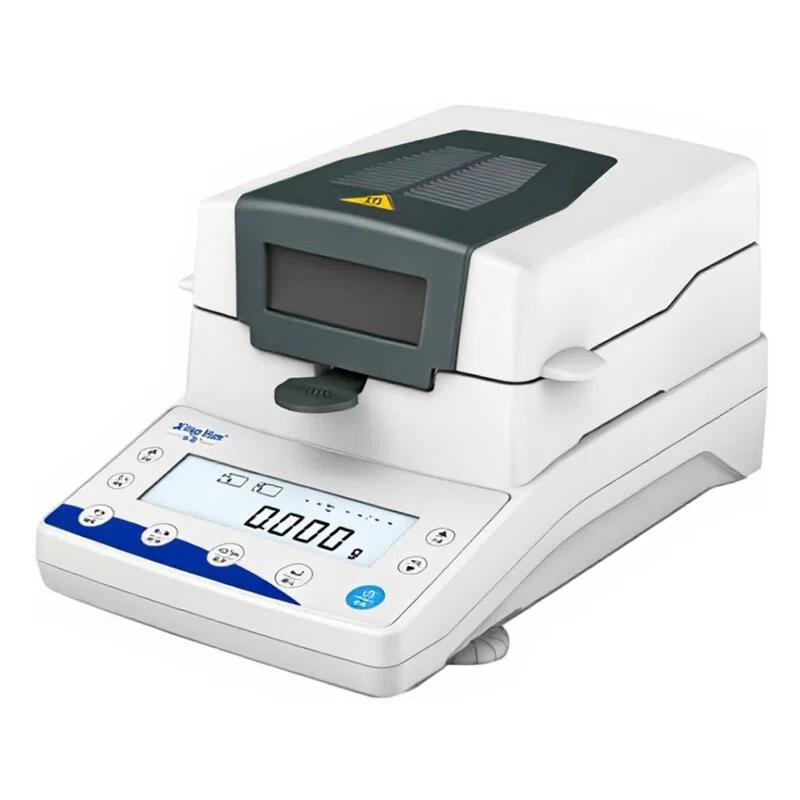

XINGYUN XY-110MW halogen Moisture Analyzer 110g/0.01g
Using halogen lamp heating and High Accuracy Thermistor Sensor, the temperature can be adjusted in the range of 40 ° C to 199 ° C, cast aluminum shell and stainless steel heating chamber ensure durability, and can remember 15 drying processes.
XingYun
XY-110MW
-
XINYUN XY-110MW halogen Moisture Analyzer 10mg/0.20%
$ 455.00 -
Halogen moisture analyzer JHY-120B Touch screen Moisture Analyzer 120g/0.02%
$ 408.00 -
Halogen Moisture Measurement Instrument JHY-50A Touch screen Moisture Analyzer 50g/0.02%
$ 320.00 -
Xiongfa XFSFY-60A Halogen Moisture Meter Graduation 0.01g Moisture accuracy 0.1%
$ 400.00 -
XIONGFA XF-1102MA halogen Fast Moisture Analyzer 110g/200 ℃
$ 480.00
Product Introduction
Lucky classic halogen moisture meter adopts advanced heating and sensing technology, high-quality material structure, flexible parameters, a variety of optional accessories, and accurate measurement.
Product features:
Halogen lamp heating
High-precision sensors
Cast aluminum housing
Multi-layer stainless steel heating chamber
Wide viewing angle LCD HD display
Temperature/time adjustable
Percentages show moisture content/drying allowance
Multiple sets of drying processes can be memorized
Optional: aluminum case/printer/shredder
XingYun XY-110MW Halogen Moisture AnalyzerSpecifications
| LIST | VALUE |
|---|---|
| Capacity value | 110g |
| Actual Graduation | 0.01g |
| Heating source | Halogen lamp-1 |
| Moisture content range | 0.0%-100.0% |
| Moisture content readability | 0.10% |
| Solid content range | 100.0%-0.0% |
| Solid content readability | 0.10% |
| Pan Size | Φ90mm |
| temperature sensor | High Accuracy Thermal Resistance |
| test temperature | 40 ° C~ 199 ° C 1 ° C ladder |
| time setting | 1-99Min 10S per step |
| Operating Environment Temperature | 15-30°C |
| output interface | RS232 |
| Storage address | 15 groups |
| Heating part voltage | 220V + 15% 50Hz /110V +/- 15% 60Hz/400W |
| Balanced partial voltage | Input: 220V 50Hz /110V 60Hz Output: 9V |
| display screen | Wide viewing angle LCD backlit LCD screen |
| Calibration method | Externally calibrated |
| Product size | 365*235*185mm |
| Packaging Dimensions | 485*340*350mm |
| gross weight | 7kg |
XingYun XY-110MW Halogen Moisture Analyzer Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
