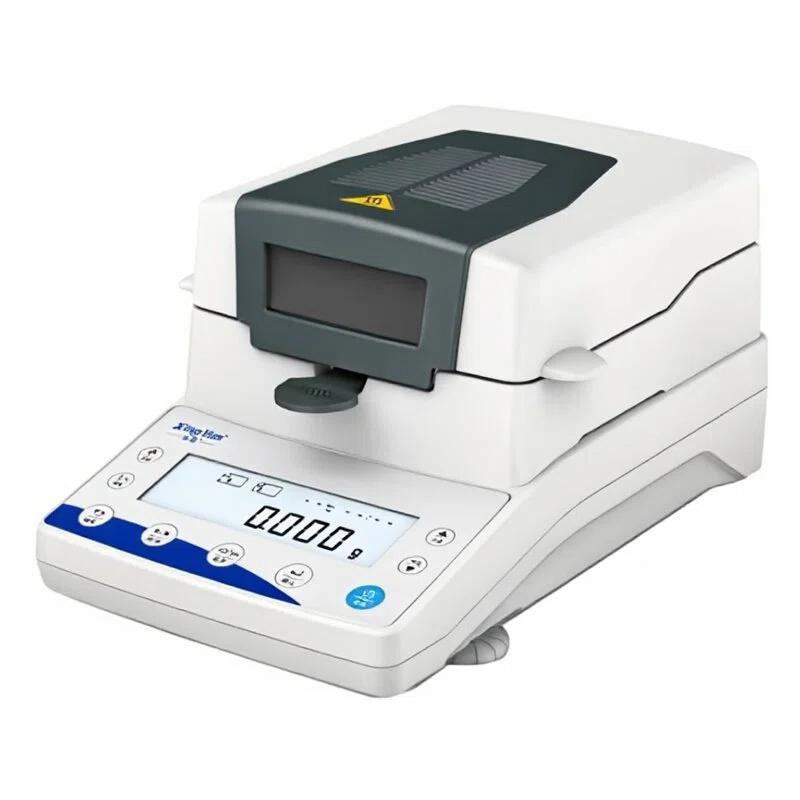

XINGYUN XY-105MW halogen Moisture Analyzer 110g/0.005g
Using halogen lamp heating, rapid and uniform heating; equipped with High Accuracy Sensor, Moisture content readability of 0.05%; cast aluminum shell and stainless steel heating compartment structure stability, temperature can be adjusted in the range of 40-199 ℃, support multiple data storage.
XingYun
XY-105MW
-
MA101 Moisture Analyzer halogen Fast Moisture Analyzer 110g/1mg
$ 938.00 -
MA110 Moisture Analyzer high-precision Moisture Meter 110g/10mg
$ 565.00 -
Halogen moisture analyzer JHY-120B Touch screen Moisture Analyzer 120g/0.02%
$ 405.00 -
Halogen Moisture Measurement Instrument JHY-50A Touch screen Moisture Analyzer 50g/0.02%
$ 318.00 -
Zibo KLS-01 halogen Moisture Analyzer Moisture accuracy: 0.1%
$ 1003.00
Product Introduction
Lucky classic halogen moisture meter adopts advanced heating and sensing technology, high-quality material structure, flexible parameters, a variety of optional accessories, and accurate measurement.
Product features:
Halogen lamp heating
High-precision sensors
Cast aluminum housing
Multi-layer stainless steel heating chamber
Wide viewing angle LCD HD display
Temperature/time adjustable
Percentages show moisture content/drying allowance
Multiple sets of drying processes can be memorized
Optional: aluminum case/printer/shredder
XingYun XY-105MW Halogen Moisture AnalyzerSpecifications
| LIST | VALUE |
|---|---|
| Capacity value | 110g |
| Actual Graduation | 0.005g |
| Heating source | Halogen lamp-1 |
| Moisture content range | 0.00%-100.00% |
| Moisture content readability | 0.05% |
| Solid content range | 100.00%-0.00% |
| Solid content readability | 0.05% |
| Pan Size | Φ90mm |
| temperature sensor | High Accuracy Thermal Resistance |
| test temperature | 40 ° C~ 199 ° C 1 ° C ladder |
| time setting | 1-99Min 10S per step |
| Operating Environment Temperature | 15-30°C |
| output interface | RS232 |
| Storage address | 15 groups |
| Heating part voltage | 220V + 15% 50Hz /110V +/- 15% 60Hz/400W |
| Balanced partial voltage | Input: 220V 50Hz /110V 60Hz Output: 9V |
| display screen | Wide viewing angle LCD backlit LCD screen |
| Calibration method | Externally calibrated |
| Product size | 365*235*185mm |
| Packaging Dimensions | 485*340*350mm |
| gross weight | 7kg |
XingYun XY-105MW Halogen Moisture Analyzer Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
