HuiNuo TM1300UVpro Automatic Film Applicator bar Spreader heating Vacuum chuck UV curing effective coating area 40 * 30cm
Driven by servo motor, coating speed 1~ 300mm/s stepless speed regulation, meyer rod coating accuracy up to +/- 0.001mm. With heating and Vacuum chuck function, support UV UV curing, clamshell drawdown blade design is easy to clean, improve Spreader efficiency.
HuiNuo
TM1300UVpro
-
CHINA TBJ-X1-DJ8 Detachable drawdown blade Vacuum adsorption Film Applicator Effective area 500 * 600mm
$ 6289.00 -
HuiNuo TM3300Pro/25 Multifunctional Film Applicator Effective area 40cm * 30cm, drawdown Bar & blade Vacuum adsorption baseplate heating + upper cover heating (servo motor)
$ 7222.00 -
HuiNuo TM3300/07 Multifunctional miniature coater (for glove box) Spreader area 21 * 15cm
$ 5045.00 -
China TBJ-X3-DJ8 Automatic lame plating Vacuum chuck Film Applicator lame plating machine
$ 7533.00 -
CHINA TBJ-A2-DJ1 Upper heating rod coater Heating Film Applicator
$ 2713.00
Product Overview:
Automatic film coating machine is a device used to coat film in the laboratory, replacing manual film coating, automating the film coating, and improving the accuracy and efficiency of film coating. The working principle of the experimental automatic film coating machine is to evenly coat the sample on the substrate by controlling the coating head and coating parameters, forming the desired film.

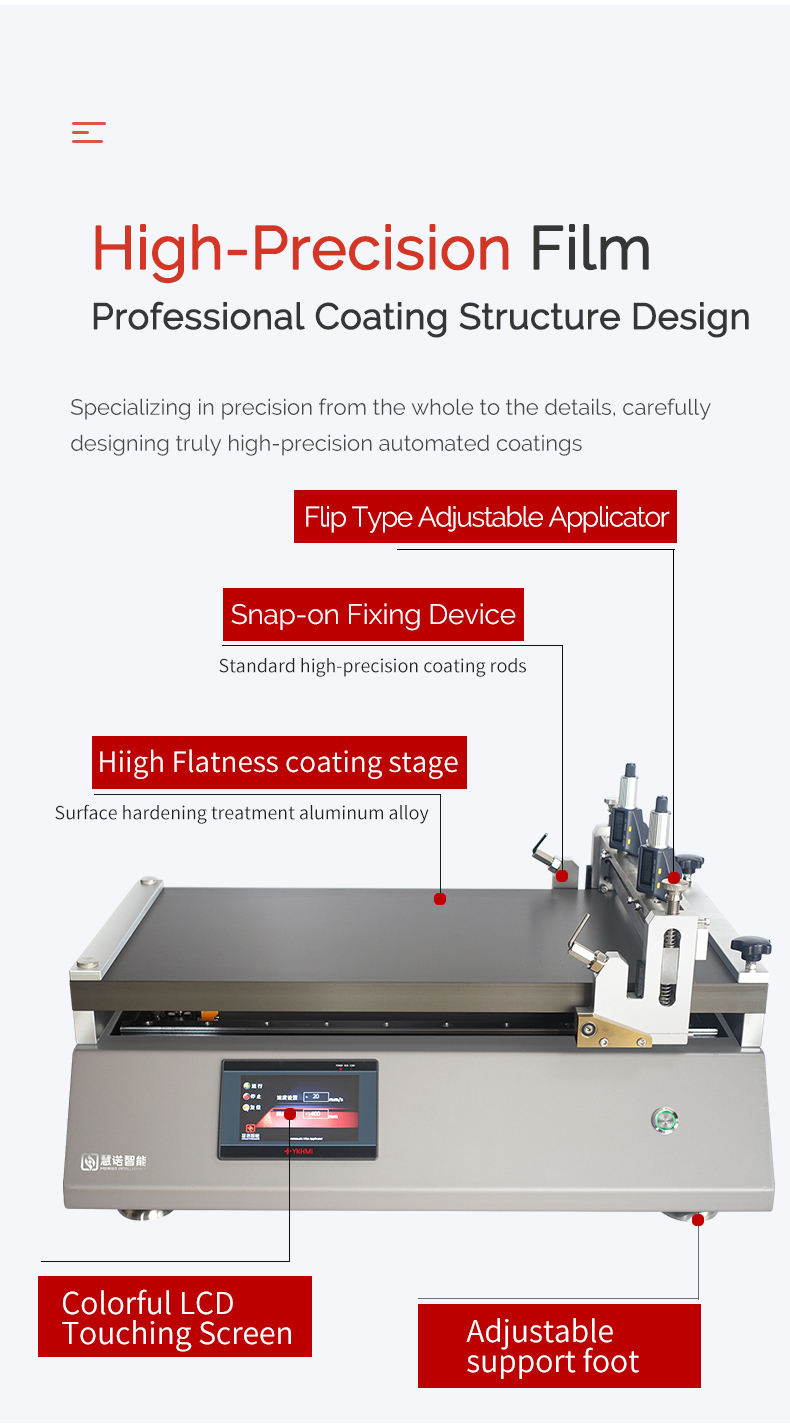

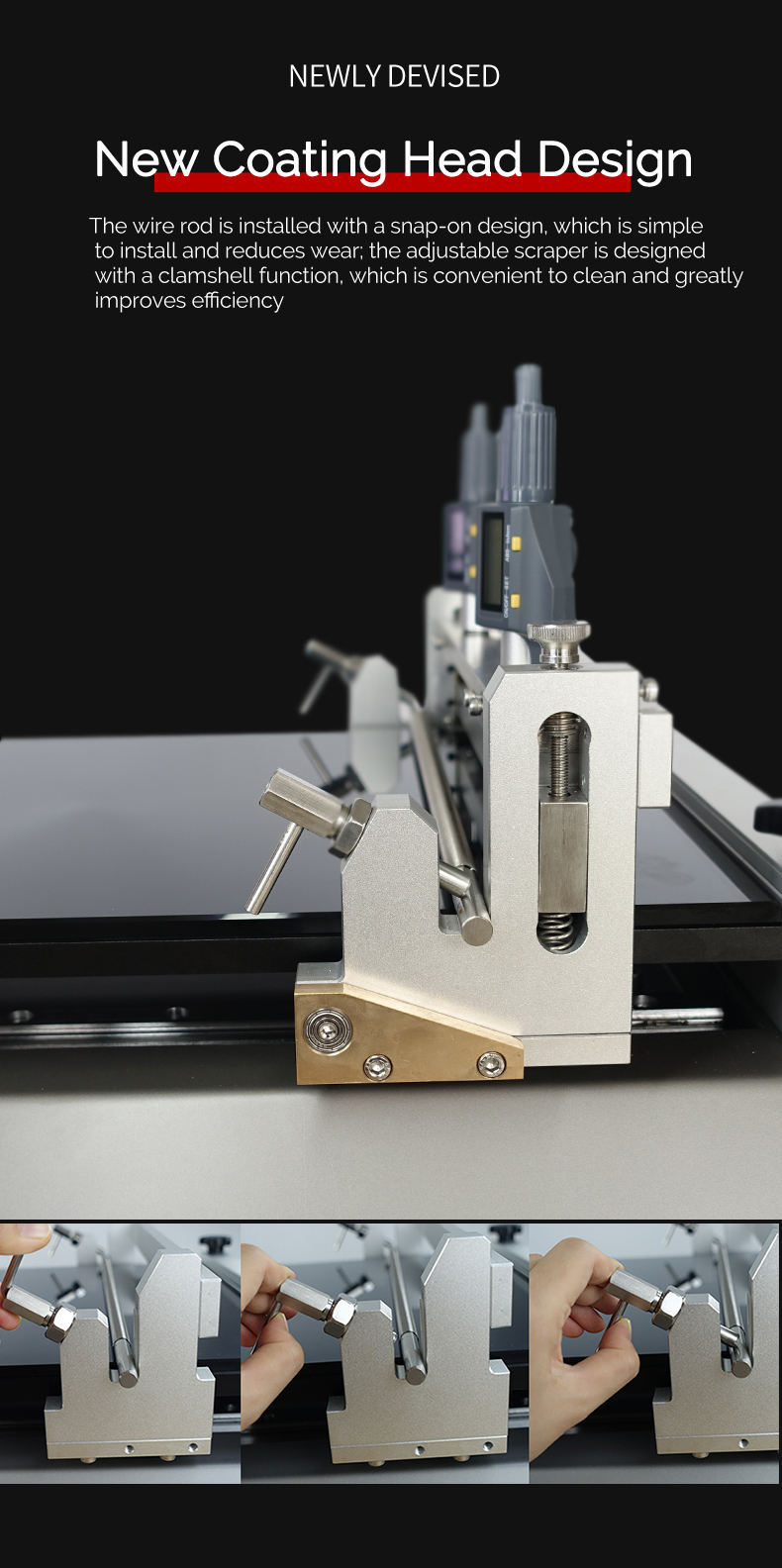

This coating machine is a high-precision wire rod coating machine using servo motor.With heating and vacuum adsorption,The new wire rod installation method and clamshell scraper head greatly improve the coating efficiency, easy to clean, support speed control and coating length adjustment, suitable for high-precision automatic coating of film in the laboratory, and carry out film proofing in university research institutes, new materials, lithium batteries, glue, resin and other laboratories.
Product Use:

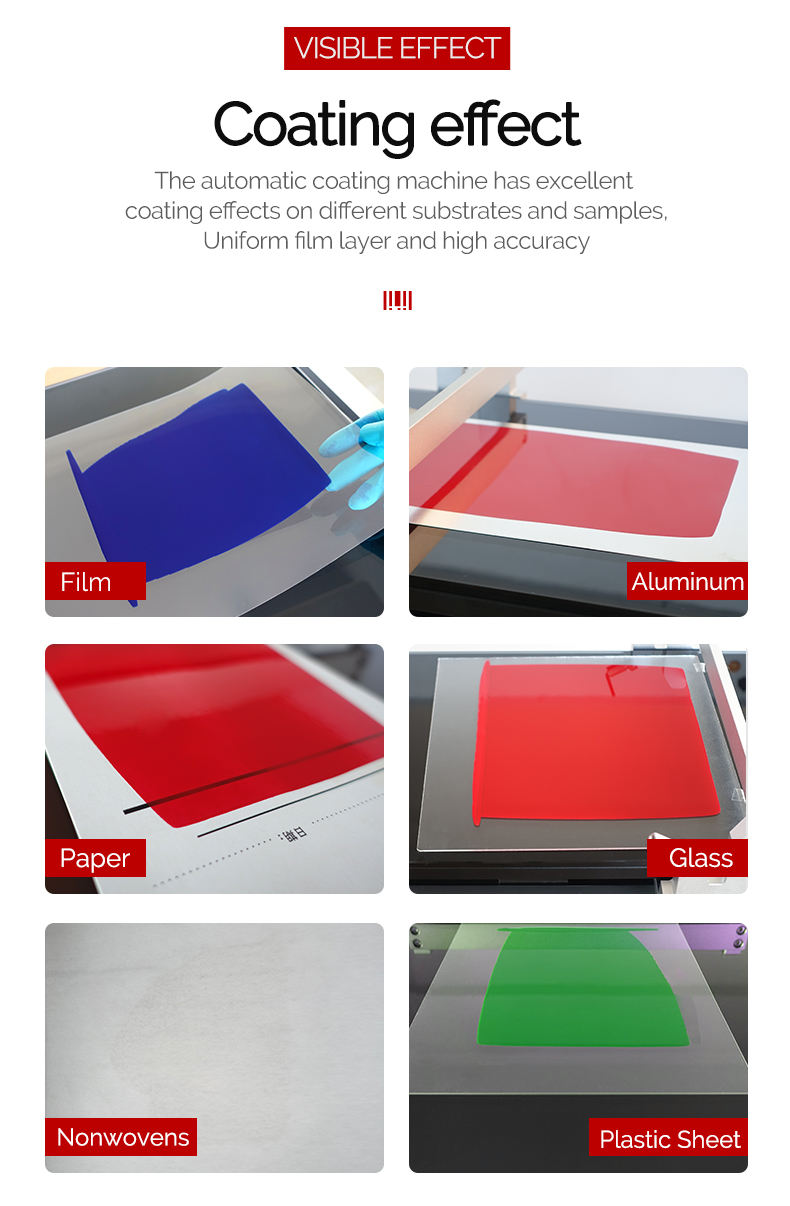

The film coating machine is suitable for coating and sample coating of coatings, inks, paints, pastes, lithium batteries, pressure-sensitive adhesives, resins, glues, polymer materials, pharmaceuticals, etc., and can be scraped on glass, cardboard, and fabrics.
Product features:

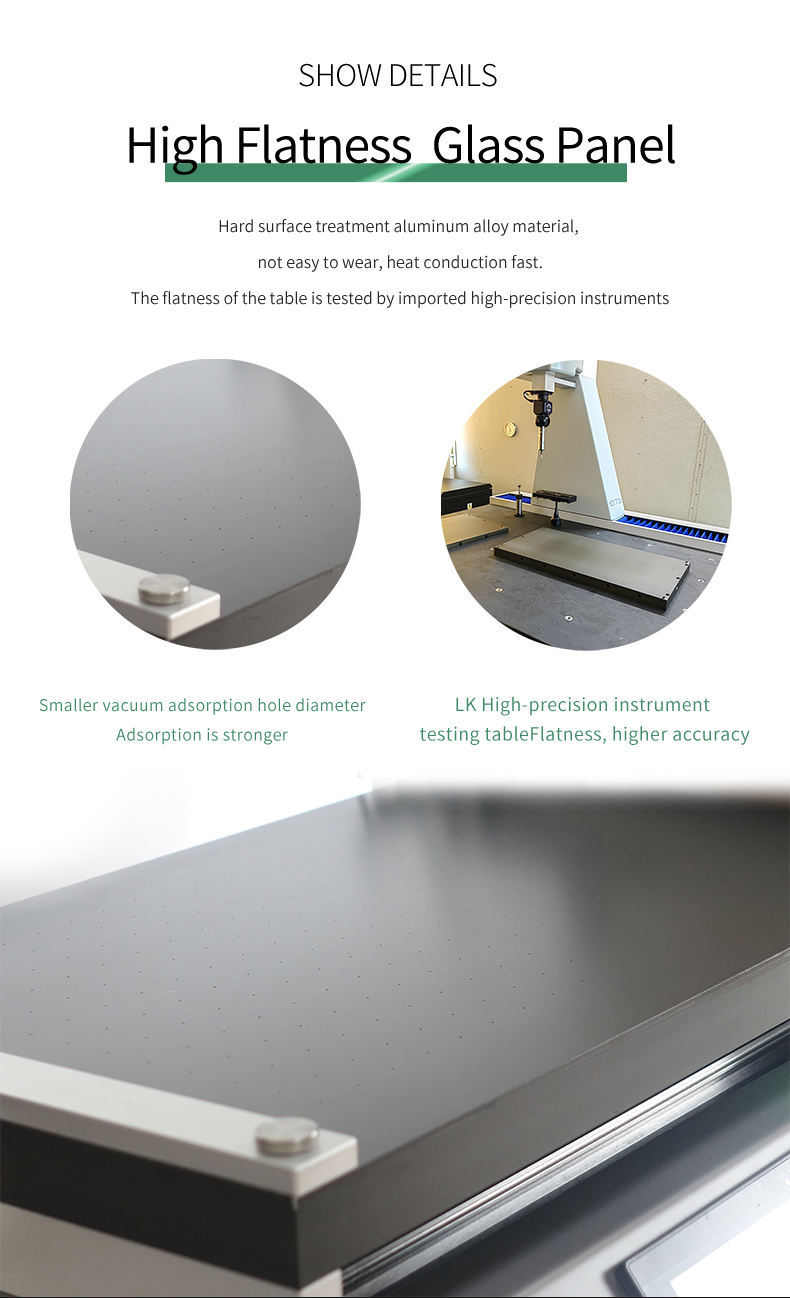

1) Surface hard treatment aluminum alloy countertop, high hardness and wear resistance, and the flatness of the countertop is tested by imported high-precision instruments.
2) Big brand differential adjuster, high film thickness control accuracy
3) With heating and vacuum adsorption functions
4) Equipped with high-precision film applicator, the original imported wire rod coating film is uniform and high accuracy

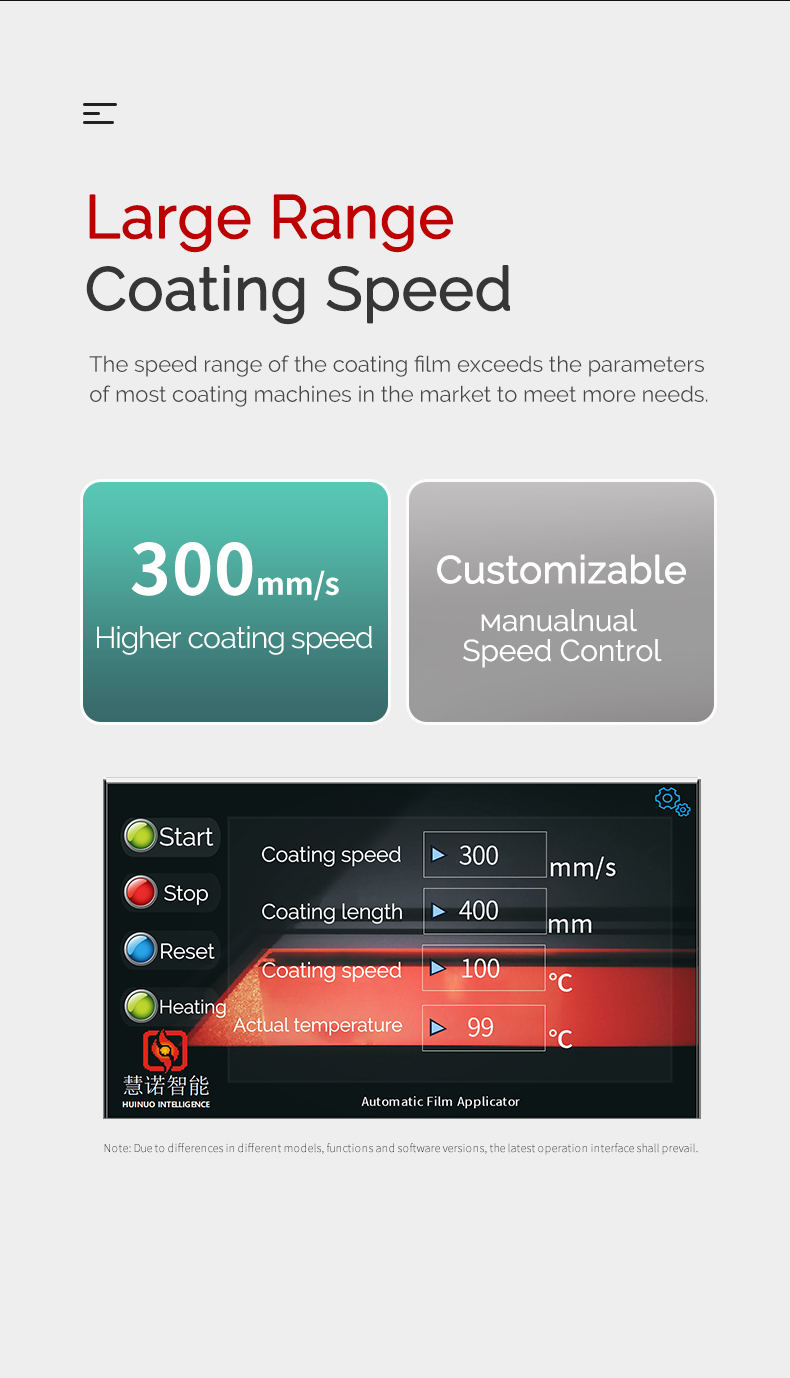

5) Touch screen control panel, easy to operate
6) The coating length and coating speed can be adjusted freely

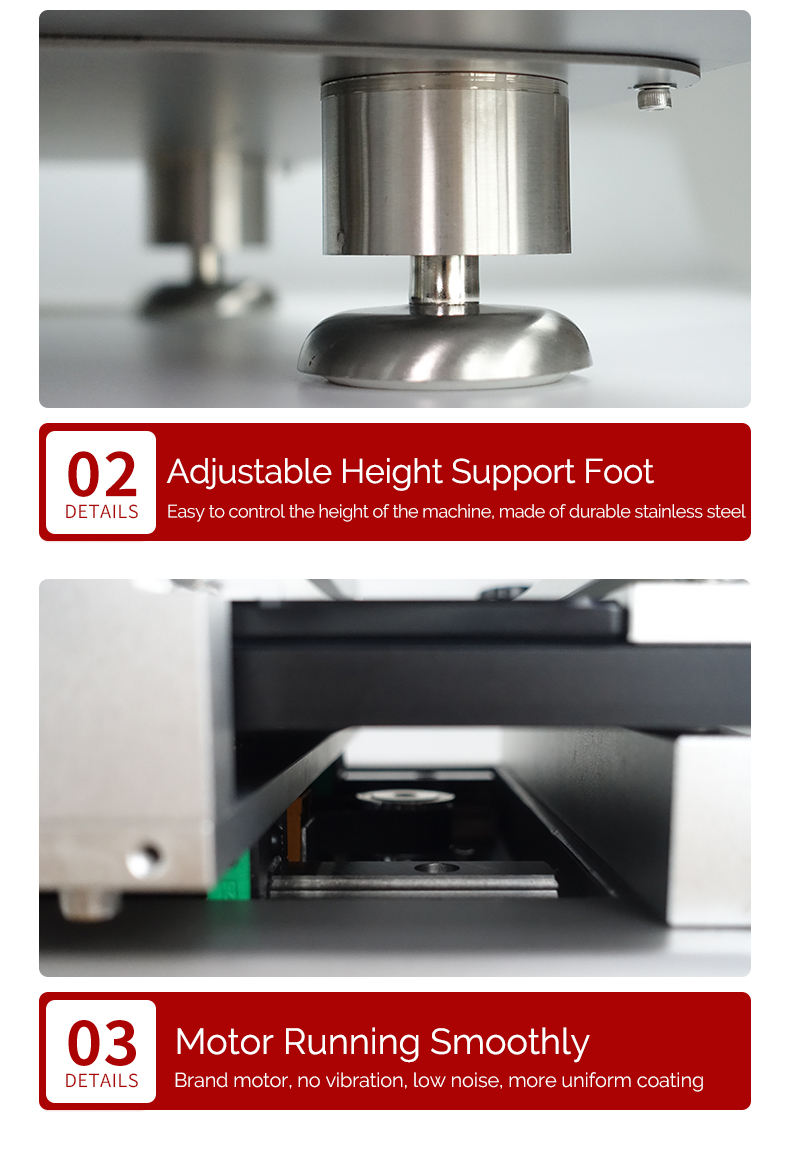

7) Servo motor is adopted, stable operation, and higher coating accuracy
HuiNuo TM1300UVpro Automatic Film ApplicatorSpecifications
| LIST | VALUE |
|---|---|
| coating method | Bar Spreader |
| coating speed | 1~ 300Mm/s stepless speed regulation (can be customized) |
| Substrate clamping method | Vacuum chuck + fixture |
| Coating table material | Surface hard treatment aluminum alloy |
| Coating table size | 640*330mm |
| effective coating area | 400 * 300Mm (can be customized) |
| meyer rod coating thickness range | Different bar sizes have different thicknesses, with High Accuracy imported bars |
| meyer rod coating accuracy | ±0.001mm |
| Vacuum Area | 480 * 260Mm (can be customized) |
| Vacuum aperture diameter | Φ0.8mm |
| Vacuum hole pitch | 20*20mm |
| Vacuum pump pumping rate | 5.4m3/h |
| Ultimate vacuum degree | 50KPa |
| Vacuum Pump Power | 180W |
| Vacuum pump weight | 7.1kg |
| Heating mode | Mica sheet heating (optional graphene heating, faster thermal conductivity) |
| Heating Temperature range | RT +~ 180 ℃ (can be customized) |
| Temperature Uniformity | ±1℃ |
| Drive motor | Servo motor |
| Curing method | UV UV curing |
| UV curing area | 400*300mm |
| UV light main peak wave | 365nm |
| UV Light Power | 400*2W |
| UV light curing wavelength | 350-450nm |
| switch | Aviation plug/separate switch |
| Illuminant distribution spacing | 18*18mm |
| Light type | LED |
| Operating language | Chinese (can be customized in English) |
| display screen | Color LCD Touchscreen |
| Host power supply | 220V/50HZ (can be customized 110V/60HZ) |
| Power | 2000W |
HuiNuo TM1300UVpro Automatic Film Applicator Packing list
Host X1, manual X1, imported bar X1, certificate X1, vacuum pump X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
