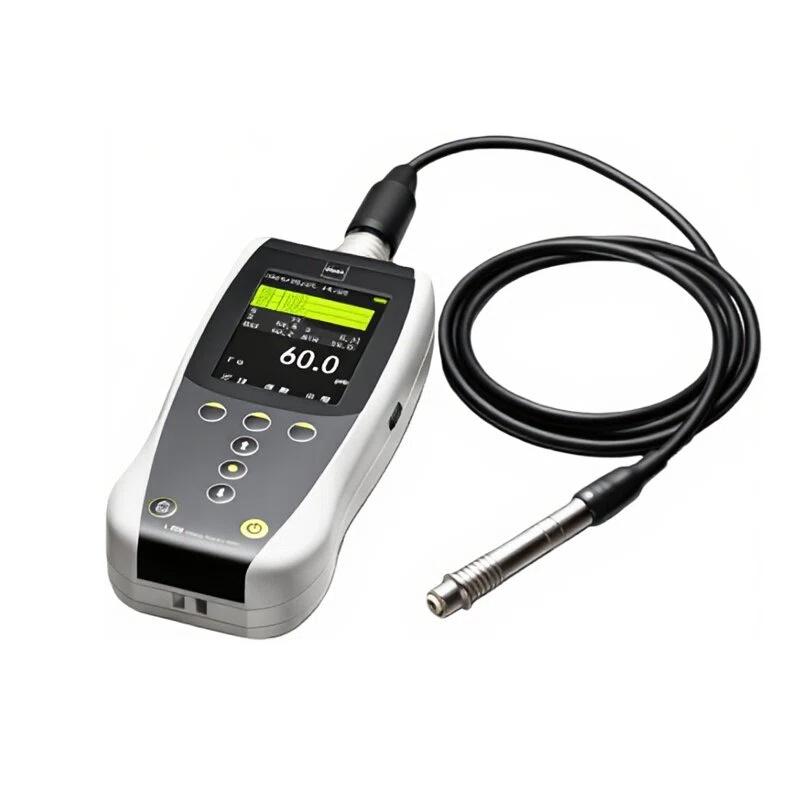

KETT L-600 Standard film thickness gauge portable probe replaceable
Portable design for easy hand-held operation. The resolution can reach 0.1 μm, the data storage capacity can reach 50,000, it supports a variety of international measurement standards, and can adapt to the measurement needs of different matrix materials by changing the probe.
KETT
L-600 Standard
-
List Magnetik MEGA-CHEK Pocket FE platings Thickness Gauge
$ 1575.00 -
AMITTARI AC-990 Coating Thickness Gauge dual function, thickness measurement range 0~500um
$ 267.00 -
DUBAN DB20-CM212S Statistical Coating Thickness Gauge split probe 0~1250µm
$ 575.00 -
Defelsko PosiTector 6000 FN1 Coating Thickness Gauge for automatic substrate type and measurement
$ 1299.00 -
JINGKELIAN QDX paint film multi-purpose Detector
$ 337.00
Product Introduction
The L-600 is a portable thickness gauge that allows you to change the probe depending on the measurement object and purpose. With excellent visibility and an easy-to-hold body shape, it is suitable for film thickness measurement in a variety of scenarios, both indoors and outdoors.
With a guide function, a clear user interface, rich customization functions, and advanced statistical functions, this product provides comfortable film thickness measurement for both beginners and technologists in the field.

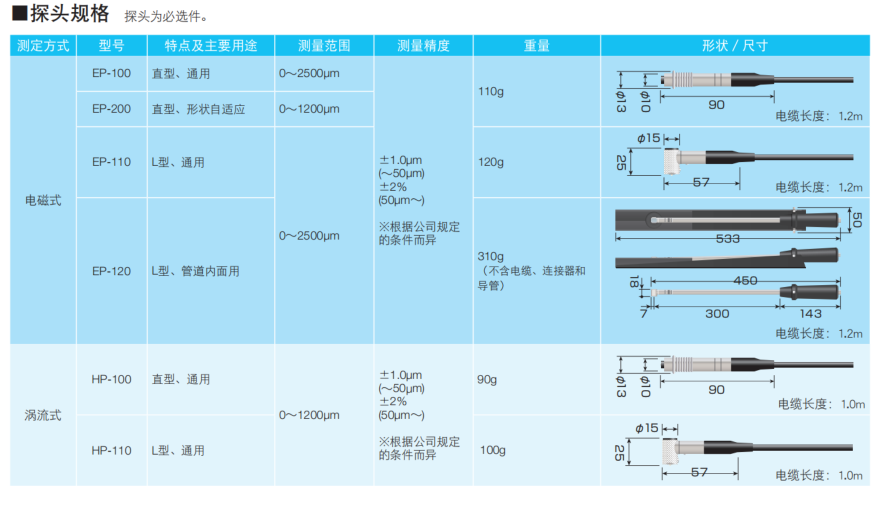

Probe
Fits the standard
JIS K5600-1-7/ JIS HO401/
JIS H8401/ JIS H8501/
JIS H8641/ JIS H8680-2/
IS0 1461/1S0 2064/1S0 2360/
IS0 2178/1S0 2808/ IS0 19840/
ASTM B 244/ ASTM B 499/
ASTM D 7091/ ASTM E 376
KETT L-600 Standard film thickness gaugeSpecifications
| LIST | VALUE |
|---|---|
| Display resolution | 0.1 μm for less than 100ym, 1 μm for 100um or more (in μm) 0.01mm for less than 10mm, and 0.1mm for 10mm or more (in mm) |
| display mode | Digital display (2.7-inch full-color LCD) |
| Number of data stores | 50,000 pieces |
| Number of app stores | 50 (per probe) |
| external output | USB-C |
| power supply | 1.5V (No. 5 alkaline dry battery * 1) x4 |
| power consumption | Maximum 1W |
| Battery life | 70 hours * 2 |
| Humidity range | 0~ 40 ℃, less than 85% RH (no condensation) |
| Additional features | Matrix correction, adjustment, application selection, upper and lower limit setting, unit switching, Measuring method switching, language switching, statistical calculation (block/group), measurement data saving, automatic power off, backlight, date and time setting, screen display content switching, etc. |
| Size and weight | 70 (W) x155 (L) x35 (H) mm, 0.2kg |
| Annex | Iron substrate (for iron probe), aluminum substrate (for non-iron probe), standard sheet x4 (10, 100, 500, 1000um), 1.5V battery (No. 5 alkaline dry battery) x4, probe adapter, handbag, sling, USB cable (Type-C), connector sheath, corresponding probe/optional parts, standard sheet list, instruction manual |
| Options | Various iron or non-iron probes (required), standard film (Film thickness other than accessories), film thickness gauge measurement table LW-990, soft suitcase, Bluetooth communication dongle VZC76, calibration (calibration certificate, calibration transcript, traceability system diagram) |
| PC Software (LDL Export) | Yes. |
| Mobile App (LDL Mcbile) | without |
KETT L-600 Standard film thickness gauge Packing list
host x1, F probe x1, N probe x1, manual x1, certificate x1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
