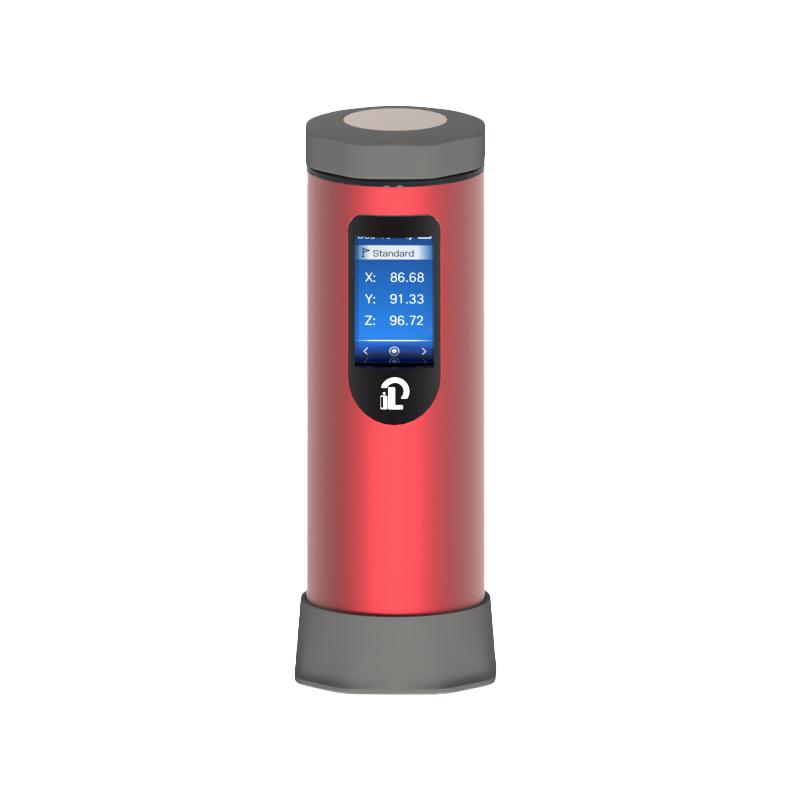

QILI BS45A color difference meter series 45 °/0 CIE-LAB, Delta E * ab 400-700nm Light spectrum
Adopt 45 °/0 measurement structure, closer to the human eye. Measurement speed is the fastest 0.3 seconds, Repeatability Delta E ≤ 0.05, stable and reliable data. Compact and portable, the volume is only φ 32 * 90mm.
QiLi
BS45A
BS45B
-
IWAVE WF32-16mm color difference Tester with multi-functional test accessories for liquid and powder particles
$ 2076.00 -
CHNSPEC Liquid measurement fixture
$ 541.00 -
German Raul < unk > Color reader Color reader
$ 369.00 -
CHNSPEC CRX-51 Non-Contact Colorimeter
$ 11243.00 -
LS173 Handheld color difference meter Portable color difference meter 3.5 inch Touchscreen
$ 225.00
Product Introduction
The Color Differentiator series adopts a 45°/0 measurement structure, which is closer to the colors observed by the human eye. It covers the spectral range of 400-700nm and supports color evaluation in a variety of light source environments.
It is suitable for the measurement of printed materials, automotive interior components, textiles, coil coatings, plastic products, road traffic signs and other materials.
Product features:
Compact and portable, rugged and durable
The size is as small as φ32*90mm, with a high-hardness aluminum alloy shell, and the metallic texture and color are shown through anodizing.
It can be measured by national standards
The size is as small as φ32*90mm, with a high-hardness aluminum alloy shell, and the metallic texture and color are shown through anodizing.
Multi-mode display without APP
Switch between multiple color spaces on your device by rotating the multi-function knob left and right, without the need to connect an app.
Instant perception, no waiting
Measurement speed as fast as 0.3s.
Automatic calibration and escort
The new composite material calibration whiteboard with a reflectivity of up to 92% is used to stabilize and do not change color.
Repeatability △≤0.05
Data stability without fear of repeated measurements.
QiLi BS45A color difference MeterSpecifications
| LIST | VALUE |
|---|---|
| Measurement structure | 45/0, including specular reflection (SCI) |
| Measurement index | CIE-LAB, Delta E * ab, Spectral Curve |
| Illuminant | Full Band LED Illuminant |
| Lighting caliber | 8mm |
| wavelength interval | 10nm |
| Wavelength range | without |
| Stability measurement | ≤ 0.1 (test the whiteboard 30 times every 5s) |
| Inter-instrument Agreement | △E*00<0.4 |
| Measurement time | About 1s |
| Illuminant condition | D65 |
| Field of view | 2 ° and 10 ° |
| screen | 1.14 inch full color LCD screen |
| Battery capacity | Full power can be continuous measurement 5000 times |
| Measurement requirements | No guarantee. |
| calibrate | Automatic calibration |
| language | Simplified Chinese, English |
| Software support | APP, Mini Program |
| Scope of working environment | 0~ 40 ℃, 0~ 85% RH (no condensation) |
| Storage environment range | -20~ 60 ℃, 0~ 85% RH (no condensation) |
| weight | 90g |
| volume | φ 32 * 90mm (without calibrated cover) |
QiLi BS45A color difference Meter Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
