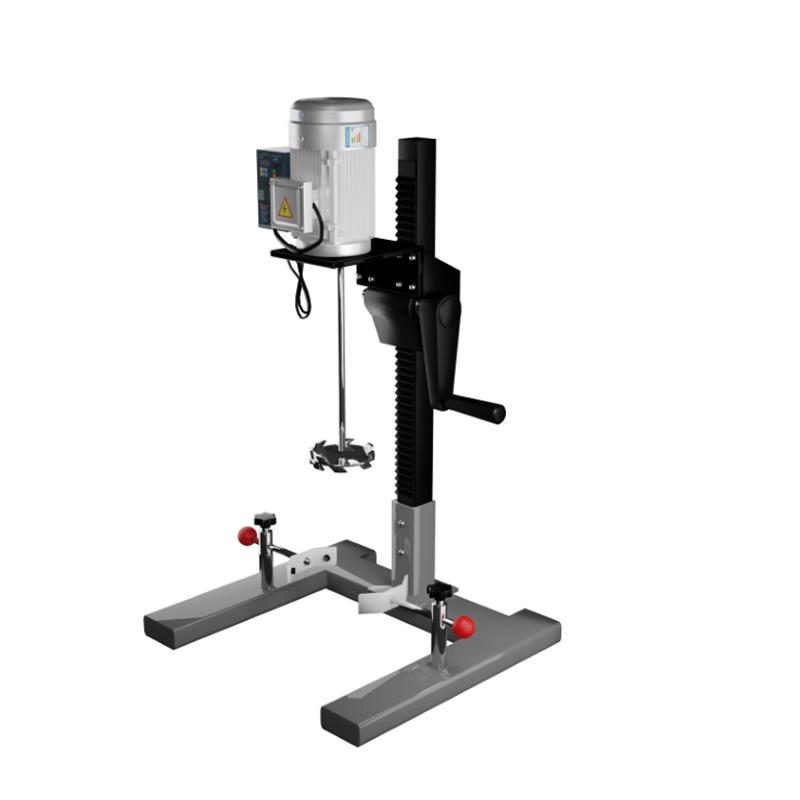

YKFS-1.5D Frequency Conversion Disperser Stainless Steel Disperser Shaft 0-1500r/min Frequency Conversion Speed Regulation
Adopt 0-1500r/min variable frequency speed regulation to achieve precise control, with a processing capacity of up to 50L; equipped with 304 stainless steel dispersing shaft and dispersing disc, corrosion-resistant and easy to clean, and the lightweight design of the whole machine is easy to move.
YaKu
YKFS-1.5D
-
CHINA FS-1200 Digital Disperser 1200W
$ 341.00 -
MUXUAN XD-F550 Experimental Stirring Grinding Disperser Brushless DC Variable Frequency Motor
$ 790.00 -
JINGKELIAN SDF-550 Experimental Multi-purpose Disperse Sand Mill, Frequency Conversion Motor Stir Disperse Sand Mill Integrated
$ 792.00 -
MUXUAN MXF-0.75 Full explosion-proof laboratory dispersion sand mill
$ 1951.00 -
CHINA FS-550 Lab High Speed Disperser Inverter Brushless Motor 550W
$ 303.00
Product Introduction
YKFS-1.5D inverter series disperser, adapted to AC220V/50HZ voltage, 1.5KW motor with 0-1500r/min frequency conversion speed regulation, precise operation. The processing capacity ≤ 50L (to combine the viscosity of the material), and the dispersion shaft (ø20mm×400mm) and dispersion disc (ø120mm) are made of 304 stainless steel, which is corrosion-resistant and easy to clean. The height of the whole machine is 1000mm, and it supports 450mm stroke hand crank lifting, which is suitable for different containers; 32Kg lightweight design, easy to move, suitable for small and medium-sized batch material dispersion mixing operations.
Specifications
| model | YKFS-1.5D | Low speed |
| Operating voltage | AC220V/50HZ | |
| Motor maximum power | 1.5KW | |
| Speed range | 0-1500r/min | |
| speed regulation method | Frequency conversion speed regulation | |
| Throughput | ≤ 50L (the actual stirring volume is related to the viscosity of the material) | |
| Height of the whole machine | 1000mm | |
| Lifting mode | Hand crank lifting | |
| Lifting stroke | 450mm | |
| Dispersion axis | Diameter ø20mm, length 400mm (304 stainless steel) | |
| Dispersion disk | Diameter ø120mm (304 stainless steel) | |
| The weight of the whole machine | 32Kg | |
YaKu YKFS-1.5D Disperser (frequency conversion series)Specifications
| LIST | VALUE |
|---|---|
| operating voltage | AC220V/50HZ |
| Motor maximum power | 1.5KW |
| Speed range | 0-1500r/min |
| Speed regulation mode | Frequency conversion speed regulation |
| throughput | ≤ 50L (Stir amount is related to material consistency) |
| Overall height | 1000mm |
| Lifting method | Hand lift |
| Lifting stroke | 450mm |
| dispersion axis | Diameter ø20mm, length 400mm (304 stainless steel) |
| dispersion disk | Diameter ø120mm (304 stainless steel) |
| Machine weight | 32Kg |
YaKu YKFS-1.5D Disperser (frequency conversion series) Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
