HuiNuo TM3200Pro/16D Automatic Film Applicator bar drawdown blade Coater ECA 150 * 60cm
Using bar and drawdown blade two coating methods, coating speed 1~ 300mm/s stepless speed regulation, Spreader accuracy of +/- 0.003mm. The clamshell drawdown blade is designed for easy cleaning and is equipped with Vacuum chuck function, suitable for soft substrates.
HuiNuo
TM3200pro/16D
-
HUINUO TM3300pro+ High-precision Rod & Drawdown Blade Coater with Heated Vacuum Table
$ 6180.00 -
China TBJ-B2 Lab Film Applicator Precision film Drawdown blade + bar
$ 1951.00 -
China TBJ-B1-DJ4 Removable Drawdown blade Lab Film Applicator Drawdown blade easy to clean
$ 2264.00 -
China TBJ-X3-DJ23 Experimental Automatic Film Applicator with Automatic Feeding System
$ 8216.00 -
China TBJ-FJLZ-DJ2 Unwinding Film Applicator bar + Drawdown blade + Vacuum chuck + Automatic feeding
$ 9469.00
Product Overview

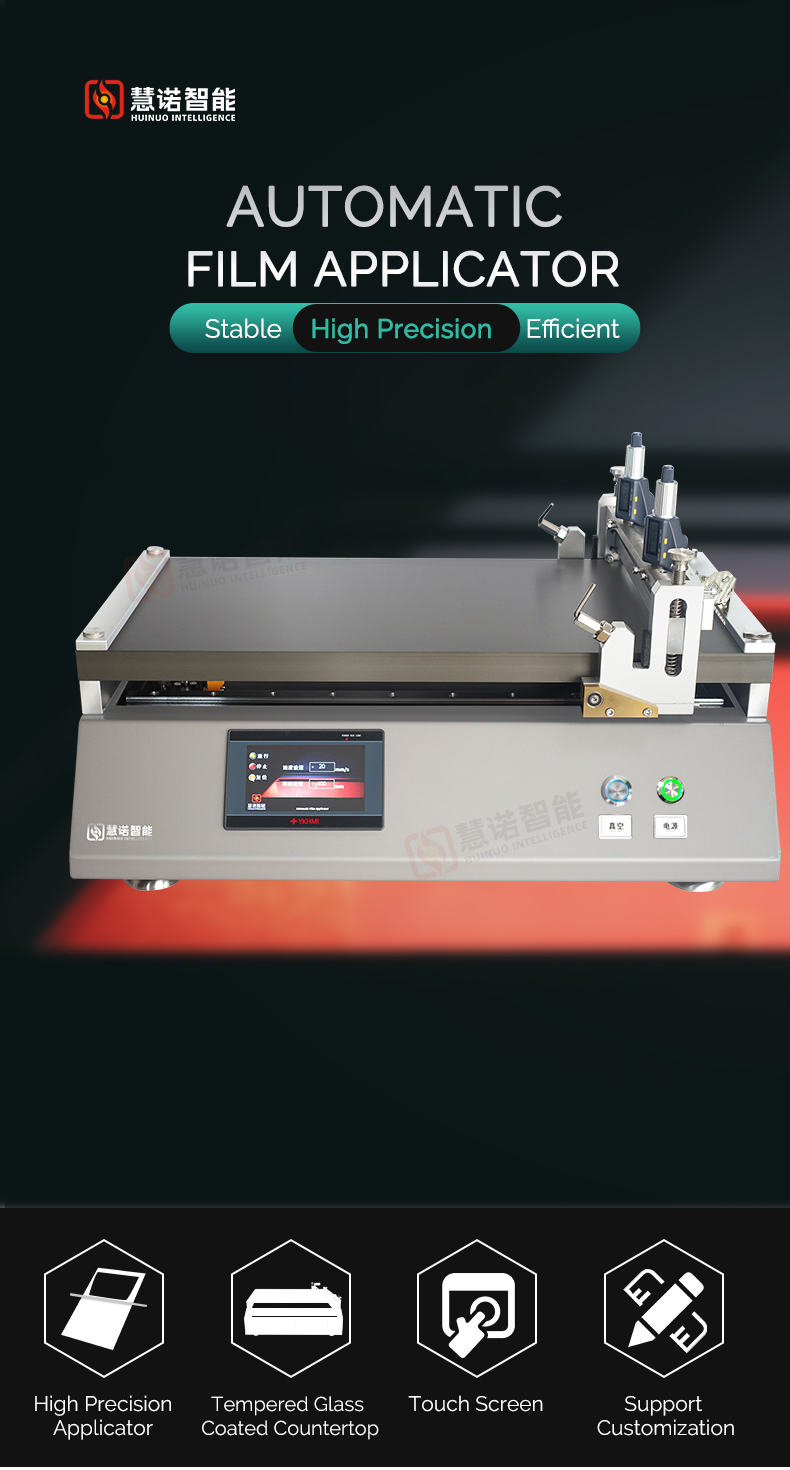

The automatic film coating machine is a device used to coat the film in the laboratory, replacing the manual coating film, and the coating film is carried out automatically, so as to improve the accuracy and efficiency of the coating film. The working principle of the experimental automatic film coater is to evenly coat the sample on the substrate by controlling the coating head and coating parameters to form the desired film.
This coating machine is a wire rod scraper coating machine, with two functions of wire rod coating and scraper coating, the new type of wire rod installation method and clamshell scraper head greatly improve the coating efficiency, easy to clean, with speed control and coating length adjustment function, suitable for laboratory high-precision automatic coating, in the university research institute, new materials, lithium battery, glue, resin and other laboratories for film proofing.
Product Use:
The film coating machine is suitable for coating samples of coatings, inks, paints, pastes, lithium batteries, pressure-sensitive adhesives, resins, glues, polymer materials, chemicals, etc., and can be scraped on glass, cardboard and cloth.
Features:

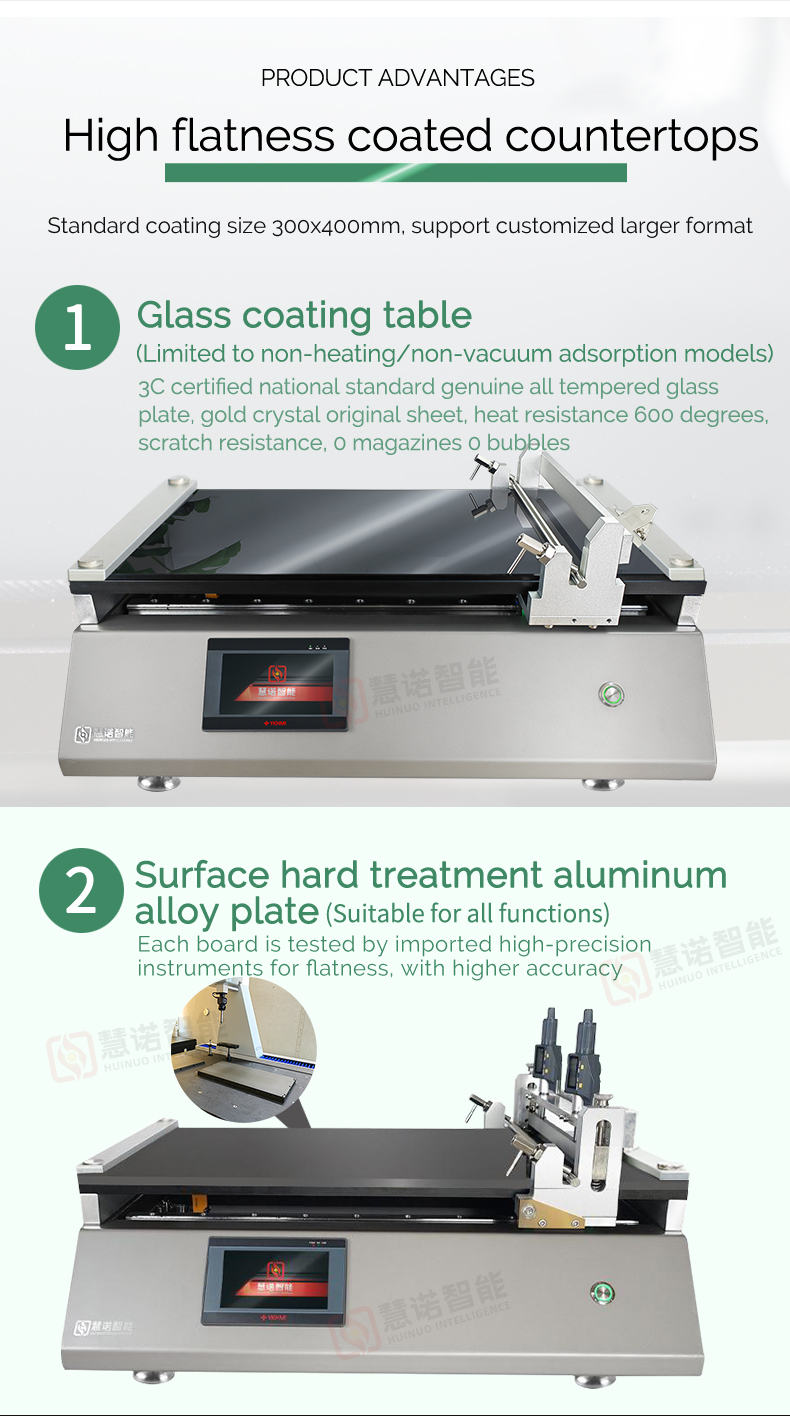

1) The surface is hard treated aluminum alloy table, with high hardness and wear-resistant, and the flatness of the table is tested by imported high-precision instruments.
2) Big brand differential regulator, high film thickness control accuracy
3) Clamshell scraper coating head, easy to clean
4) Equipped with high-precision Film Applicator, the original imported wire rod coating film is uniform and has high precision
5) Touch screen control panel, easy to operate
6) The coating length and coating speed can be adjusted freely
7) With heating and vacuum adsorption function.

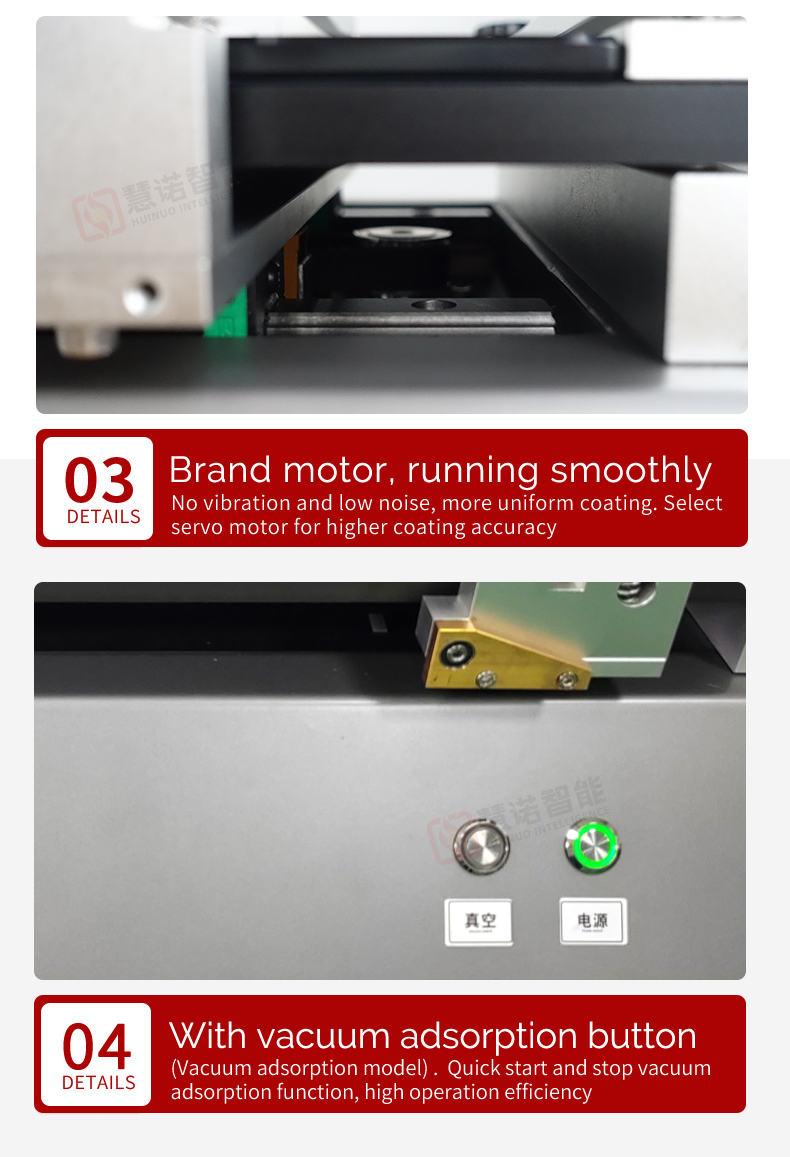

8) Servo motor is adopted, the operation is more stable, and the coating accuracy is higher.
HuiNuo TM3200pro/16D Automatic Film ApplicatorSpecifications
| LIST | VALUE |
|---|---|
| coating method | Bar + drawdown blade |
| coating speed | 1~ 300Mm/s stepless speed regulation (can be customized) |
| Substrate clamping method | Vacuum chuck + fixture |
| Coating table material | Surface hard treatment aluminum alloy |
| Coating table size | 1740*630mm |
| effective coating area | 1500 * 600Mm (can be customized) |
| meyer rod coating thickness range | Different bar sizes have different thicknesses, with High Accuracy imported bars |
| meyer rod coating accuracy | ±0.003mm |
| Blade Coating Thickness Range | 0.1~ 10Mm (clamshell design is easy to clean) |
| Drawdown blade material | Die steel |
| Blade Coating Width | 600Mm (width adjustment accessories can be added) |
| Blade Coating accuracy | ±0.003mm |
| Vacuum Area | 1580 * 560Mm (can be customized) |
| Vacuum aperture diameter | Φ0.8mm |
| Vacuum hole pitch | 20*20mm |
| Vacuum pump pumping rate | 5.4m3/h |
| Ultimate vacuum degree | 50KPa |
| Vacuum Pump Power | 180W |
| Vacuum pump weight | 7.1kg |
| Drive motor | Servo motor |
| Power | 600w |
| Operating language | Chinese (can be customized in English) |
| display screen | Color LCD Touchscreen |
| Host power supply | 220V/50HZ (can be customized 110V/60HZ) |
| Dimension | 1760*740*940mm |
HuiNuo TM3200pro/16D Automatic Film Applicator Packing list
Host X1, manual X1, drawdown blade x1, import bar X1, certificate X1, vacuum pump X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
