QILI BS45B color difference meter series 45 °/0 measurement indicators 27 kinds of 400-700nm Light spectrum
Adopt 45 °/0 measurement structure, closer to human eye observation. Measurement speed is the fastest 0.3 seconds, Repeatability ≤ 0.05, stable and reliable data, support multi-Color space switching on the device side.
QiLi
BS45B
-
IWAVE WF30-8mm Colorimeter CHINA universal color difference instrument with USB communication interface Chinese and English system 2.8TFT true color screen
$ 1003.00 -
IWAVE micro printer Colorimeter
$ 195.00 -
CHNSPEC Powder measurement fixture - Transparent Glass
$ 80.00 -
3NH NR20XE Colorimeter 20mm large diameter, suitable for plastic, Color plate, Coating, Spinning & weaving, food, etc
Login -
3NH NR10QC Colorimeter 4mm aperture, suitable for Spinning & weaving, Food, Plastic, Coating, Hardware, Photography, Toys, etc
Login
Product Introduction
The Color Differentiator series adopts a 45°/0 measurement structure, which is closer to the colors observed by the human eye. It covers the spectral range of 400-700nm and supports color evaluation in a variety of light source environments.
It is suitable for the measurement of printed materials, automotive interior components, textiles, coil coatings, plastic products, road traffic signs and other materials.
Product features:
Compact and portable, rugged and durable
The size is as small as φ32*90mm, with a high-hardness aluminum alloy shell, and the metallic texture and color are shown through anodizing.
It can be measured by national standards
The size is as small as φ32*90mm, with a high-hardness aluminum alloy shell, and the metallic texture and color are shown through anodizing.
Multi-mode display without APP
Switch between multiple color spaces on your device by rotating the multi-function knob left and right, without the need to connect an app.
Instant perception, no waiting
Measurement speed as fast as 0.3s.
Automatic calibration and escort
The new composite material calibration whiteboard with a reflectivity of up to 92% is used to stabilize and do not change color.
Repeatability △≤0.05
Data stability without fear of repeated measurements.

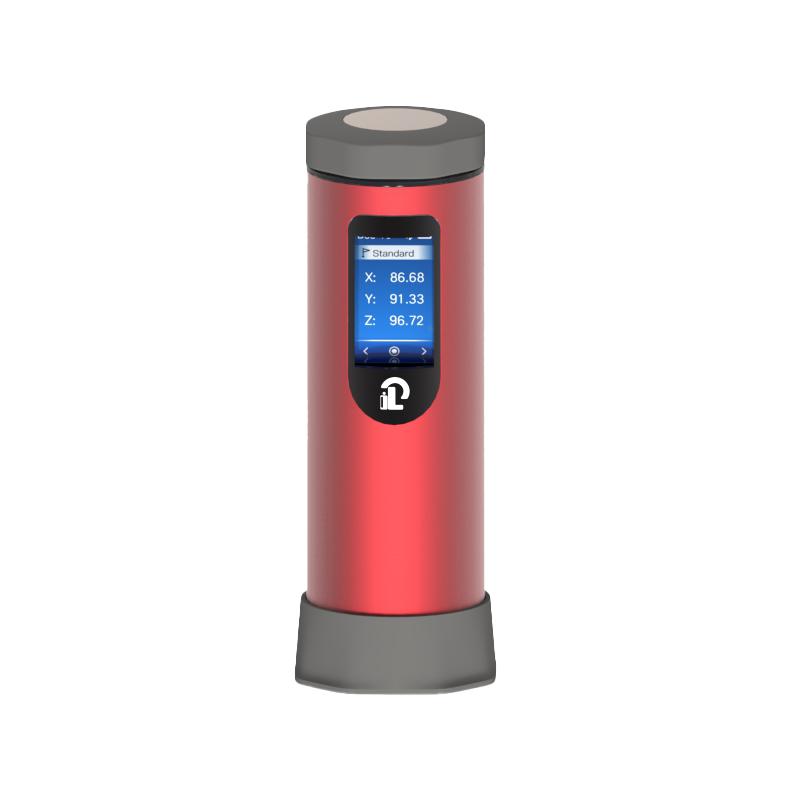

QiLi BS45B color difference meterSpecifications
| LIST | VALUE |
|---|---|
| Measurement structure | 45/0, including specular reflection (SCI) |
| Measurement index | 27 kinds |
| Illuminant | Full Band LED Illuminant |
| Lighting caliber | 8mm |
| wavelength interval | 10nm |
| Wavelength range | 400~700nm |
| Stability measurement | ≤ 0.05 (test the whiteboard 30 times every 5s) |
| Inter-instrument Agreement | △E*00<0.2 |
| Measurement time | About 0.3s |
| Illuminant condition | 26 kinds |
| Field of view | 2 ° and 10 ° |
| screen | 1.14 inch full color LCD screen |
| Battery capacity | Full power can be continuous measurement 12,000 times |
| Measurement requirements | guarantee |
| calibrate | Automatic calibration |
| language | Simplified Chinese, English |
| Software support | APP, Mini Program |
| Scope of working environment | 0~ 40 ℃, 0~ 85% RH (no condensation) |
| Storage environment range | -20~ 60 ℃, 0~ 85% RH (no condensation) |
| weight | 90g |
| volume | φ 32 * 90mm (without calibrated cover) |
QiLi BS45B color difference meter Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
