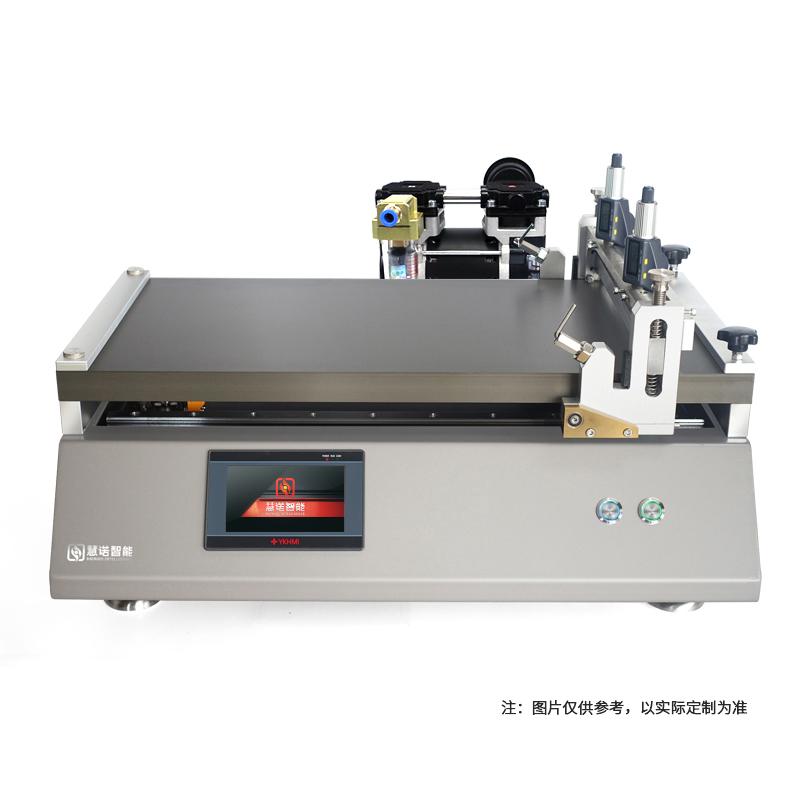

HuiNuo TM3300Pro/43 Automatic Film Applicator bar drawdown blade Coater ECA 120 * 30cm

Product Overview:

Automatic film coating machine is a device used to coat film in the laboratory, replacing manual film coating, automating the film coating, and improving the accuracy and efficiency of film coating. The working principle of the experimental automatic film coating machine is to evenly coat the sample on the substrate by controlling the coating head and coating parameters, forming the desired film.

This multi-functional coating machine supports two coating methods: wire rod coating and scraper coating, suitable for coating materials with different viscosities of high, medium and low viscosity, and has heating and vacuum adsorption functions to meet the coating needs of different materials. The innovative simple wire rod installation method and the clamshell magnetic scraper head greatly improve the coating efficiency and are easy to clean. Touch screen control, simple operation, free to set coating speed and coating length. Coating sizes and coating functions can be customized according to experimental needs.

Product Use:

The film coating machine is suitable for coating and sample of inks, slurries, lithium batteries, adhesives, hot melt adhesives, gels, resins, glues, polymer materials, polymer materials, pharmaceuticals, etc., and can be scraped on different substrates such as glass, cardboard, non-woven fabrics, films, release papers, plastics, silicones, etc.

Features:

1）Aluminum alloy hard oxidation surface treatment coating base plate,Good wear resistance and high flatness

2) Big brand differential adjuster, scraper film thickness control accuracy is high

3) Simple snap-on wire rod groove, simple to load and unload, avoid wire rod wear

4）New clamshell magnetic scraperdesign, easy and fast to clean

5) Equipped with high-precision film applicator, the original imported wire rod coating film uniformly and high precision

6) Touch screen control panel, easy to operate

7) The coating length and coating speed can be adjusted freely

8) With bottom plate heating, upper cover heating and vacuum adsorption functions

9) Servo motor is adopted, which is more stable in operation and higher in coating accuracy

Host X1, manual X1, drawdown blade x1, import bar X1, certificate X1, vacuum pump X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
