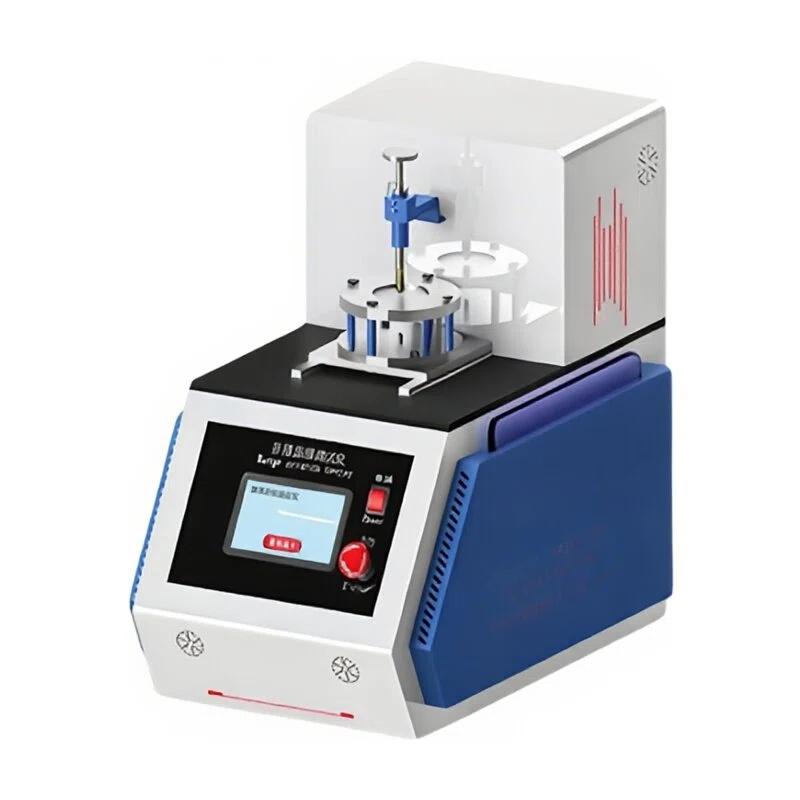

HUITAO HT-110 hundred grid method scratch tester, scratch resistance test of automotive plastic interior and exterior trims
The device uses metal scraping needle to cross scribe with 5-15N force, which can measure the color difference before and after scraping. It has two scribing speed and length combinations, nine predetermined cross scribing modes and free program control, and has a wide clamping range and convenient operation.
huitao
HT-110
-
TRUIT TR 5006/3 cross-cut plate cross-cut number 6
$ 145.00 -
TQC SP3209 dust test tape for evaluating the size and size of surface dust
$ 158.00 -
TQC VF2359 cross-cut blade 11 teeth 1mm for CC1000 series
$ 783.00 -
Erichsen 295/II Cross Hatch Cutter Set 6 teeth/2mm
$ 972.00 -
QFH film cross-cutting instrument YONGLIDA Adhesion Tester comes standard with two knife heads
$ 130.00
Product Introduction
It is used to test the scratch and scratch resistance of automotive plastic interior and exterior trim parts, independent research and development and production, cost-effective, and complete and guaranteed after-sales.
Applicable standards
GM 14688 (Act A)
GM 14688 (Law B)
PV3952, PV3974 Volkswagen standard
GMW14688 General Motors Standard
VDA 621-411 Paint Adhesion
EN ISO 2409 Coatings - Coating grid cutting tests
ASTM / D 3359 Standard Test Guidelines for Testing Adhesion of Coatings by Tape Method;
Q/LiA5400014-2023(V3)
Q/SQR S1-16-2016 Chery standard
Q/SQR T1-64 Chery standard
Q/LiA5400014-2023(V3)
GB/T 9286-97/ISO 2409ISO2409
GB/T 9279-2007/ISO 1518:1992
QCC SY051-2012
GB 9286-2021
Test Principle:
Mainly represented by General GMW14688 and Volkswagen PV3952, a metal scraper with a certain diameter (generally 0.5mm or 1mm) is used to scratch two sets of parallel scratches perpendicular to each other with 5-15N force on the surface of the product, and then measure the color difference or blackness change in the scratch area before and after scratching.
Technical characteristics:
1. 2 scoring speeds, 2 scribing lengths can be combined according to requirements.
2.9 predetermined cross engravings, meeting most used standards.
3.1 Free program control cross scoring mode to meet special needs.
4. Set the scoring distance with a stepper motor.
5. It will be displayed when the engraving passes through the insulation layer to the metal base.
6. Quick clamping device, wide clamping range.
huitao HT-110 100 grid scratch testerSpecifications
| LIST | VALUE |
|---|---|
| control system | PLC |
| operation interface | Color 7-inch touch screen, switch between Chinese and English; |
| Instrument power supply | 115/230 VAC, 50/60Hz (please order voltage); |
| device power | 400W； |
| Test piece specification | 80×50mm； |
| Film thickness | 0.5——20mm； |
| Standard load range | 5N,10N,15N； |
| Special load range | (Must cooperate with the purchase of accessories); |
| scribe path | 25 or 40mm; |
| Scribing speed | 0-1000mm/min |
| Sample size range | 60 * 170MM maximum, minimum 78 * 78MM |
| Dimension | Length 430MM Width 660MM Height 780MM |
huitao HT-110 100 grid scratch tester Packing list
host X1, manual X1, certificate X1, warranty card X1, power cord X1, wrench X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
