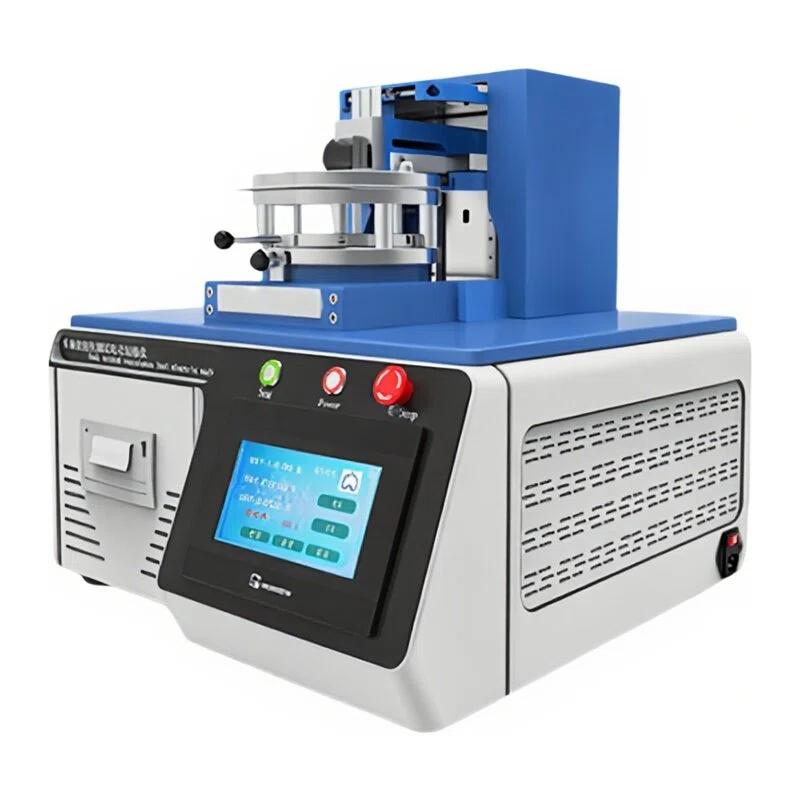

HUITAO HT-430P electric cross-cut tester, desktop PLC control automatic cross-cut adhesion testing
Adopt PLC control and touch screen operation, support a variety of cross marking modes (such as 6 × 1, 11 × 2) and 0-1000mm/min speed adjustment, with automatic clamping and 90 degree swirl/spin function, suitable for accurate testing of different Film thickness samples.
huitao
HT-430P
-
TRUIT TR 5001/3 Single top coat Cross Hatch Cutter 1.5mm/11 teeth
$ 146.00 -
TQC SP3000 Adhesion Tester Cross-cut Guide Gauge/Baige Plate 6-in-1 Multifunctional Adhesion Tester
$ 346.00 -
PUSHEN HGQ 2 * 5 multi-edge cross-cut Tester number of teeth 6 teeth, spacing 2mm
$ 181.00 -
Pushen HGQ 1 * 5 Multi-blade Cross Hatch Cutter Suitable for hard substrates less than 60μm
$ 181.00 -
Germany Erichsen 295/V Paint film adhesion Cross Hatch Cutter set 11 teeth/1mm
$ 1086.00
Product Introduction
It is a general purpose instrument for performing a variety of different scratch and scratch resistance tests on paint layers and plastic surfaces. For test pieces of different thicknesses, parallel and cross marking can be carried out with single cutting knives and multi-row cutting knives. Adhesion tests are carried out according to the cross scoring method and scratch resistance tests according to GME 60 280 for all user standards. A wide range of test parameters and a wide selection of test tools make these tests easy to perform.
Product features:
The grid tester is a benchtop test instrument with a solid structure and stable marking under harsh conditions. The test process is controlled by PLC, and all parameters (2 scoring speeds, 2 scoring lengths, cross scoring mode) can be set with buttons. Each motion program (specimen transfer, scoring position, and required pressure adjustment) is driven by an independent stepper motor to set the scoring distance, which is displayed as the scribing passes through the insulation layer to the metal base.
Meet the standards
GM 14688 (Act A)
GM 14688 (Law B)
PV 3952 Popular Standard
Q/SQR S1-16-2016 Chery standard
Q/SQR T1-64 Chery standard
Q/LiA5400014-2023(V3)
GB/T 9286-97/ISO 2409ISO2409
GB/T 9279-2007/ISO 1518:1992
QCC SY051-2012
GB 9286-2021
GME 60 280
The test is carried out according to the general standard, without additional procedures. The following cross scoring method can be selected (number of knives × knife pitch mm). 2×5，6×1，6×2，6×3，8×1，8×2，11×1，11×2。
huitao HT-430P Electric cross-cut testerSpecifications
| LIST | VALUE |
|---|---|
| control system | PLC |
| operation interface | Color 7-inch touch screen, Chinese and English switching, no less than two kinds of voice; |
| Specimen size requirements | 60 * 170MM maximum, minimum 78 * 78MM |
| Swirl/spin function | Fully automatic swirl/spin 90 degree function, easy to operate, flexible and easy to use; |
| clamping function | Automatic clamping sample function |
| Film thickness | 0.5—20mm |
| Standard load range | 5N,10N,15N |
| scribe path | 0-45mm |
| Scribing speed | 0-1000Mm/min can be set arbitrarily |
| power supply | 115/230 VAC, 50/60Hz (please specify voltage when ordering) |
| power | 400W |
| High-end Dimensions | 600MM*661MM*591MM |
| Net weight | About 60kg |
huitao HT-430P Electric cross-cut tester Packing list
host X1, manual X1, certificate X1, warranty card X1, power cord X1, wrench X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
