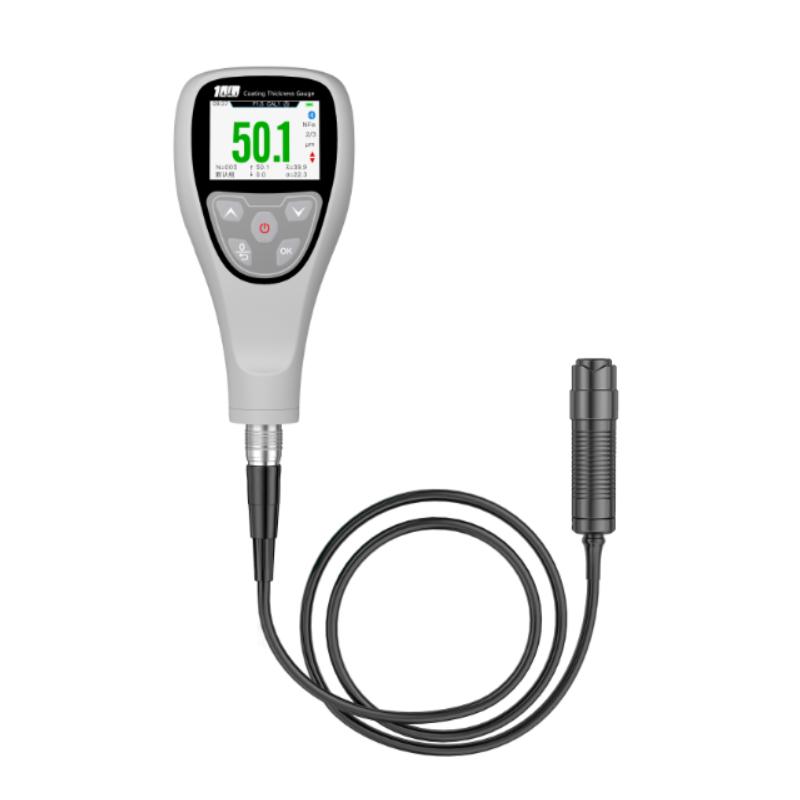

YIBAI CTG-985 split dual-use Coating thickness gauge magnetic eddy current integrated automatic identification substrate

Product Introduction

Yibai CTG-985 split coating thickness gauge is a magnetic and eddy current integration, automatically identifying magnetic or non-magnetic substrates, automatic conversion, it can quickly, without damage and precisely measure the thickness of coating and coating. It can be used both in the laboratory and in the engineering field. This instrument can be widely used in the automotive industry, manufacturing industry, metal processing industry, chemical industry, commodity inspection and other testing fields. It is a must-have instrument for material protection professionals.

Yibai CTG-985 split coating thickness gauge has high-definition color LCD screen, with statistics, automatic storage, single-point and multi-point calibration and other functions, and this product is resistant to high and low temperature, drop, probe wear resistance (more than 500,000 times), good test stability, fast test speed, suitable for various measurement environments. Its technical parameters fully comply with national and international standards.

Fe function detects the thickness of non-magnetic coatings on all magnetic substrates, such as lacquer applied to steel, iron, powder coating, plastic, porcelain, chrome, copper, zinc, etc.

The NFe function detects the thickness of insulating coatings on all non-magnetic substrates, such as lacquers, plastics, porcelains, etc. These coatings must be applied to non-magnetic metal substrates such as aluminum, copper, brass, or stainless steel.

Function

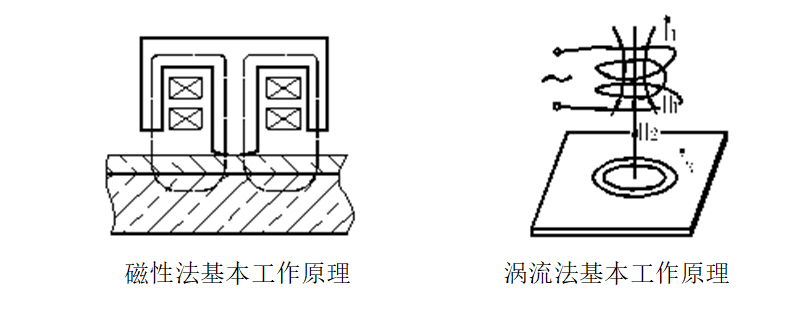

• Measurement method: F magnetic induction, N eddy current

• The spring-loaded guide sleeve probe with ultra-wear-resistant carbide probe ensures constant pressing force and stable sampling value when measuring on hard or rough surfaces.

• It can quickly and automatically identify magnetic and non-magnetic substrates;

• High accuracy, good stability, can measure 1-5μm ultra-thin coating;

• The measurement speed can reach 0.3 seconds/time;

• The large screen digital display is clearer;

• Two shutdown modes: manual shutdown mode and automatic shutdown mode;

• Four test modes: readings only, statistics, histograms, trend charts

• With statistical functions: mean, maximum, minimum, number of tests, standard deviation

• Four calibration methods: zero-point calibration, single-point calibration, two-point calibration, and five-point calibration

• Galvanized weight function: It can display the galvanized thickness and galvanized gram weight at the same time

• It adopts a high-definition color screen, automatically rotates in four directions, and is suitable for measurement at different angles

• Data transmission: Measurement reports can be generated through USB transfer to the computer, and measurement reports can be generated by Bluetooth connection to WeChat mini programs, which is convenient for company data management

• Large-capacity storage, which can be divided into 16 groups of 100 storage, and can store a total of 1600 data

• upper and lower limit alarm functions

• It adopts a digital backlit display with no parallax, making it suitable for night use

• Single/continuous measurement available

• It has a metric imperial unit conversion function to achieve μm/mil conversion

• The new design of the shell and internal structure enhances the product's aesthetics, drop resistance, and impact resistance

host X1, manual X1, certificate X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
