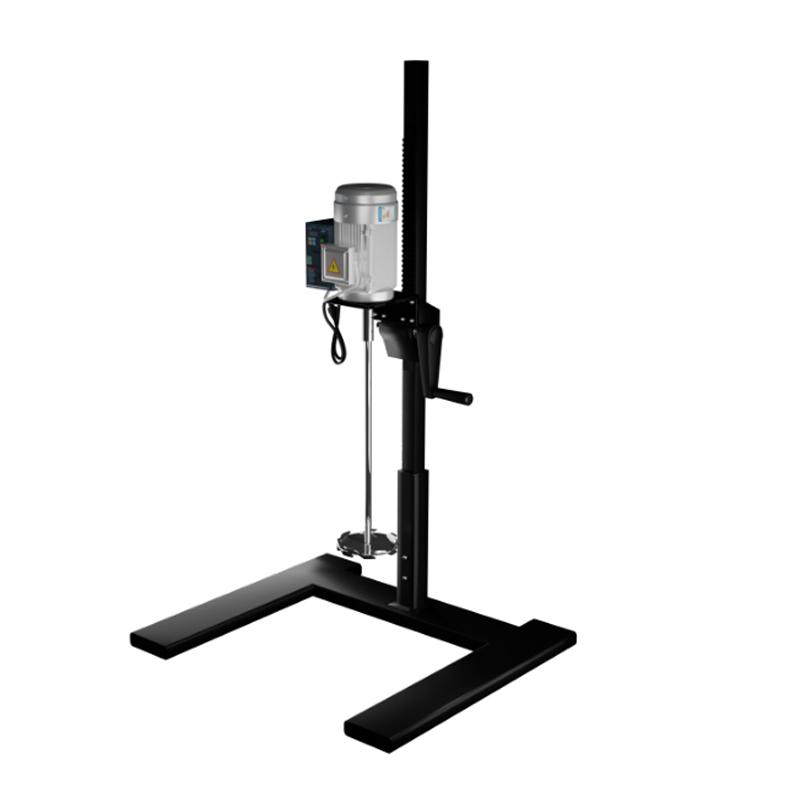

YKFS-2.2 Disperser frequency conversion series 0-3000r/min frequency conversion speed regulation 2.2KW
Support 0-3000r/min wide range frequency conversion speed regulation, equipped with 304 stainless steel dispersion plate and hand lifting structure, can be adapted to a maximum of 600 * 600mm barrels, the whole machine is light and durable, and the speed regulation is accurate.
YaKu
YKFS-2.2
-
CHINA FS-2.2KW Frequency Conversion High Speed Disperser Brushless Mute 2200w
$ 837.00 -
High speed dissolver QIWEI FS-1000D digital display high speed dissolver with 2.5 liters single layer drum
$ 402.00 -
MODERNER SFJ-750 Multi-Function Grinding/Dispersing/Mixing Machine (AC Variable Frequency Drive) 750W
Login -
High Speed Disperser Qiwei FS-400D digital display High Speed Disperser with 2.5L drum
$ 336.00 -
PUSHEN PS 2816/1 Blue Devil Kuaishou Coating Rapid Dispersion Testing Machine, Floor Clip Bottle
$ 1497.00
Product Introduction
YKFS-2.2 inverter series disperser, adapted to AC220V/50HZ (optional 380V) voltage, motor maximum power 2.2KW, supports 0-3000r/min frequency conversion speed regulation, processing capacity ≤ 100L, adapted to a maximum ≤ 600*600mm barrel and can be customized, equipped with 304 stainless steel dispersion plate and hand crank lifting structure, the whole machine is light and easy to place, durable material, accurate speed regulation, can meet the dispersion needs of different viscosity materials.
Specifications
| model | YKFS-2.2 | Standard / motorized columns |
| Operating voltage | AC220V/50HZ (optional 380v) | |
| Motor maximum power | 2.2KW | |
| Speed range | 0-3000r/min | |
| speed regulation method | Frequency conversion speed regulation | |
| Throughput | ≤ 100L (the actual stirring volume is related to the viscosity of the material) | |
| Height of the whole machine | 1350mm | |
| Lifting mode | Hand crank lifting | |
| The maximum size of the barrel that can be placed | ≤ 600*600mm (customizable) | |
| Dispersion axis | Diameter ø20mm, length 600mm | |
| Dispersion disk | Diameter 150mm (304 stainless steel) | |
| The weight of the whole machine | 50Kg | |
| Overall machine size | 700*820*1350mm | |
YaKu YKFS-2.2 Disperser (frequency conversion series)Specifications
| LIST | VALUE |
|---|---|
| operating voltage | AC220V/50HZ (optional 380v) |
| Motor maximum power | 2.2KW |
| Speed range | 0-3000r/min |
| Speed regulation mode | Frequency conversion speed regulation |
| throughput | ≤ 100L (Stir amount is related to material consistency) |
| Overall height | 1350mm |
| Lifting method | Hand lift |
| Maximum bucket size | ≤ 600 * 600mm (can be customized) |
| dispersion axis | Diameter ø20mm, length 600mm |
| dispersion disk | Diameter 150mm (304 stainless steel) |
| Machine weight | 50Kg |
| Machine size | 700*820*1350mm |
YaKu YKFS-2.2 Disperser (frequency conversion series) Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
