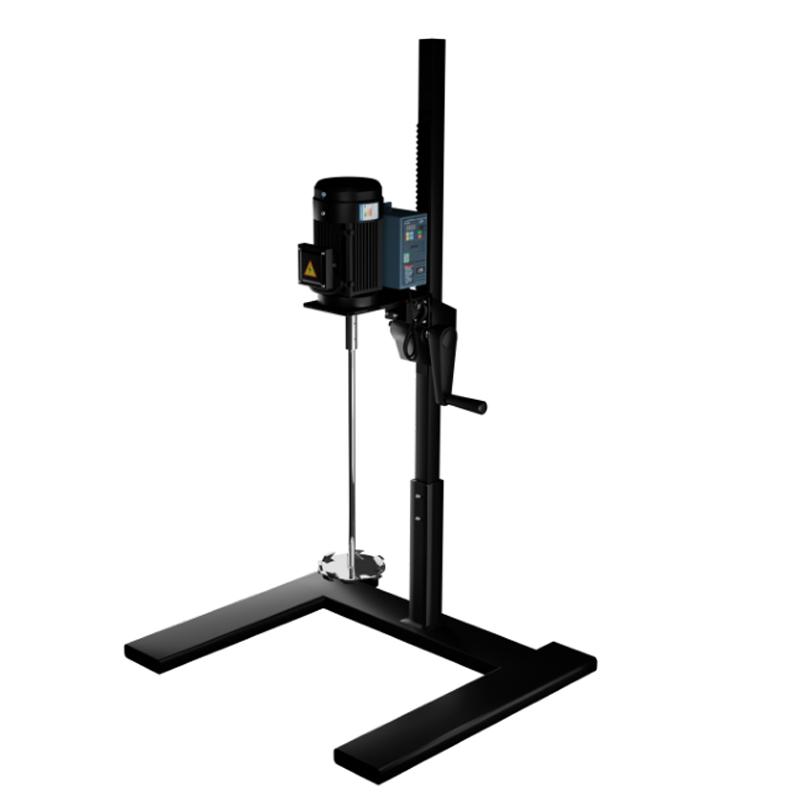

Yaku FS-3.0 Disperser frequency conversion series 3KW high power 0-3000r/min frequency conversion speed regulation
Support 0-3000r/min variable frequency speed regulation, equipped with 3KW high-power motor, hand lift design is flexible to adapt to a variety of barrels, and the processing capacity can reach 150L.
YaKu
FS-3.0
-
QIWEI JFS-750B Inverter Disperser 750W/2800rpm Manual Lift
$ 623.00 -
MODERNER KS-370B Coating Blue-devil Dispersion Testing Machine, Column Clamping Bottle Type
Login -
QIWEI JFS-750B Frequency Converter Disperser 750W/2800rpm Automatic Lift
$ 690.00 -
CHINA Coating high speed dissolver GFJ3000 Power 3KW
$ 1293.00 -
Pushen WJ-2.2 Stirred multipurpose machine domestic (CN) motor
$ 1324.00
Product Introduction
FS-3.0 inverter series disperser supports AC220V/380V (optional) voltage, equipped with 3KW high-power motor, the speed can be freely adjusted from 0-3000r/min through frequency conversion speed regulation, and the maximum processing capacity is ≤ 150L (the actual stirring volume is affected by the viscosity of the material); It adopts a hand-cranked lifting design, equipped with ø20×600mm dispersion shaft and 150mm diameter 304 stainless steel dispersion disc, which can adapt to ≤ 60×60cm barrel (support customization), with a height of 1530mm and a weight of 50Kg, which has both efficient dispersion ability and flexible adaptability to meet a variety of industrial mixing needs.
Specifications
| model | FS-3.0 | Standard: |
| Operating voltage | AC220V/50HZ (optional 380v) | |
| Motor maximum power | 3KW | |
| Speed range | 0-3000r/min | |
| speed regulation method | Frequency conversion speed regulation | |
| Throughput | ≤ 150L (the actual stirring amount is related to the viscosity of the material) | |
| Height of the whole machine | 1530mm | |
| Lifting mode | Hand crank lifting | |
| The maximum size of the barrel that can be placed | ≤ 60*60cm (customizable) | |
| Dispersion axis | Diameter ø20mm, length 600mm | |
| Dispersion disk | Diameter 150mm (304 stainless steel) | |
| The weight of the whole machine | 50Kg | |
YaKu FS-3.0 Disperser (frequency conversion series)Specifications
| LIST | VALUE |
|---|---|
| operating voltage | AC220V/50HZ (optional 380v) |
| Motor maximum power | 3KW |
| Speed range | 0-3000r/min |
| Speed regulation mode | Frequency conversion speed regulation |
| throughput | ≤ 150L (Stir amount is related to material consistency) |
| Overall height | 1530mm |
| Lifting method | Hand lift |
| Maximum bucket size | ≤ 60 * 60Cm (can be customized) |
| dispersion axis | Diameter ø20mm, length 600mm |
| dispersion disk | Diameter 150mm (304 stainless steel) |
| Machine weight | 50Kg |
YaKu FS-3.0 Disperser (frequency conversion series) Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
