Product Introduction

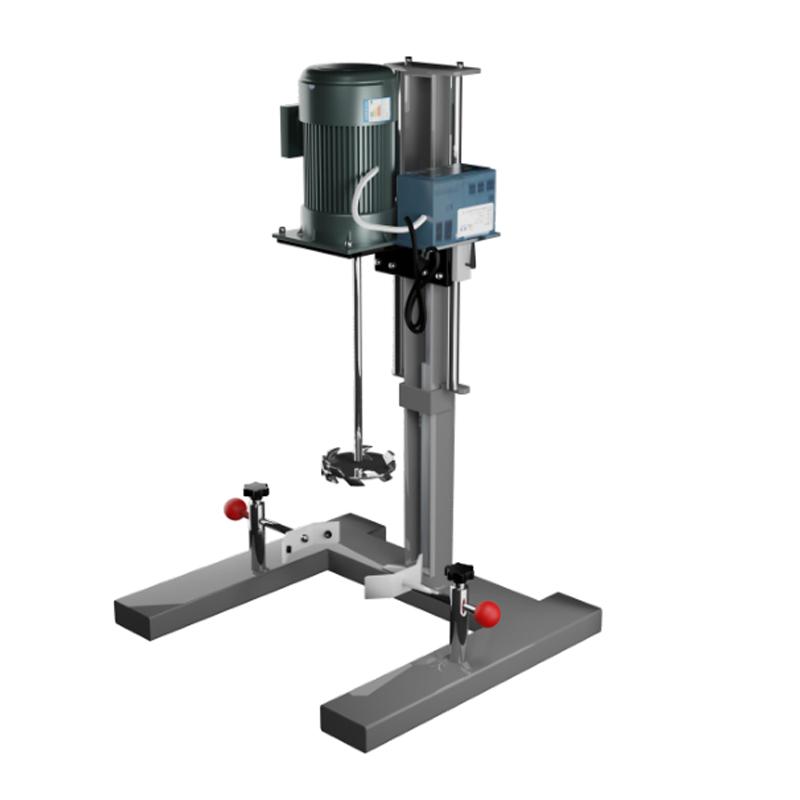

FS-1100J inverter series disperser is adapted to AC220V/50HZ voltage, equipped with 1.1KW motor, the speed can be adjusted in the range of 0-500r/min, and the maximum processing capacity is ≤25L (the actual stirring amount is affected by the viscosity of the material); Adopting electric lifting design, the height of the dispersion disc from the ground can be adjusted between 25-420mm, equipped with a 350mm long dispersion shaft and a 120mm diameter dispersion disc, the inner diameter of the base is 330mm, the size of the whole machine is 490*420*830mm, and the weight is only 30Kg, which is compact and light and flexible in operation, suitable for the needs of small batch material dispersion.
Specifications
| model | FS-1100J | Slow down |
| Operating voltage | AC220V/50HZ | |
| Motor maximum power | 1.1KW | |
| Speed range | 0-500r/min | |
| Overall machine size | 490*420*830mm | |
| Throughput | ≤ 25L (the actual stirring volume is related to the viscosity of the material) | |
| Dispersion disc off the ground | Minimum 25mm, maximum 420mm | |
| Lifting mode | Electric lift | |
| Dispersion axis | Length 350mm | |
| Dispersion disk | Diameter ø120mm | |
| The weight of the whole machine | 30Kg | |
| Base inner diameter | 330mm | |
YaKu FS-1100J Disperser (frequency conversion series)Specifications
| LIST | VALUE |
|---|---|
| operating voltage | AC220V/50HZ |
| Motor maximum power | 1.1KW |
| Speed range | 0-500r/min |
| Machine size | 490*420*830mm |
| throughput | ≤ 25L (Stir amount is related to material consistency) |
| Scatter plate off the ground | Minimum 25mm, maximum 420mm |
| Lifting method | Electric lift |
| dispersion axis | Length 350mm |
| dispersion disk | Diameter ø120mm |
| Machine weight | 30Kg |
| Base inner diameter | 330mm |
YaKu FS-1100J Disperser (frequency conversion series) Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
