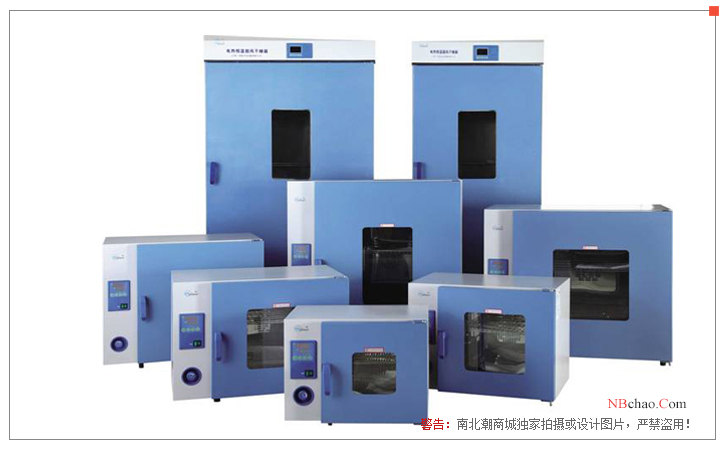

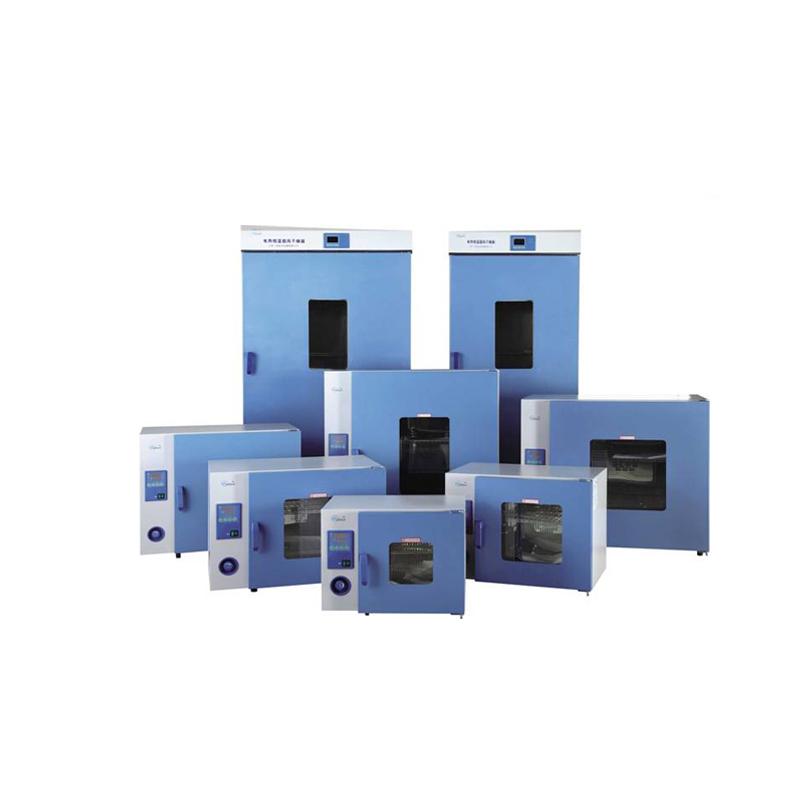

YIHENG DHG-9425A Forced Air Drying Oven Volume 420L Temperature control: 10~300 ℃
Power supply Voltage for AC220V 50HZ, input Power is 3100W. It provides a wide Temperature range (RT + 10~300 ℃) and relatively stable temperature control (thermostatic fluctuation +/- 1.0 ℃). Temperature resolution is 0.1 ℃, Temperature uniformity is +/- 3% (test point is 100 ℃). Equipment volume is 420L, liner size is 640 × 585 × 1355mm, Dimension is 780 × 730 × 1780mm. Standard 3 shelves, can improve work efficiency. Time fixed range is 0~9999min.
YiHeng
DHG-9425A
Introduction
Yiheng DHG-9425A Forced Air Drying Oven is a product produced by professional laser and numerical control processing equipment; it is used for drying, baking, melting wax and sterilization in industrial and mining enterprises, laboratories, scientific research units, etc.
Features
● The inside of the box is made of mirror stainless steel argon arc welding, and the outside of the box is made of high-quality steel plate, which is beautiful and novel in shape.
● It adopts microcomputer PID temperature controller with over-temperature deviation protection and digital display, with timing function, and the temperature control is accurate and reliable.
● The hot air circulation system is composed of a fan that can operate continuously at high temperature and a suitable air duct to improve the temperature uniformity in the working room.
● It adopts a new type of synthetic silicon sealing strip, which can run at high temperature for a long time, has a long service life and is easy to replace.
● The air intake and exhaust volume in the box can be adjusted from the temperature control panel.
● Independent temperature limit alarm system, which will be automatically interrupted when the temperature exceeds the limit, ensuring the safe operation of the experiment without accidents. (optional)
● It can be equipped with a printer or RS485 interface for connecting to a printer or a computer, and can record changes in temperature parameters. (optional)
plan
optional parts
1. Multi-segment programmable liquid crystal temperature controller
2. Independent temperature limit controller
3. RS485 interface and communication software
4. Embedded printer
5. Diameter Ф25mm test hole
6. U disk data storage
7. Wireless alarm system (SMS alarm system)
YiHeng DHG-9425A Drying OvenSpecifications
| LIST | VALUE |
|---|---|
| Temperature range | RT+10~300°C |
| Temperature fluctuation | ±1.0℃ |
| Temperature Resolution | 0.1℃ |
| Temperature Uniformity | ±3% |
| Volume | 420L |
| Interior size | 640*585*1355mm |
| Inner chamber material | stainless steel |
| Shelves (max) | 3pcs |
| Timer | 0~9999min |
| Power | AC220V 50HZ |
| Input power | 3100W |
| Environment temperature | 20℃ |
| Environment humidity | 50%Rh |
| Dimensions | 780*730*1780mm |
| Net Weight | 158kg |
| Gross Weight | 215Kg |
| Packing size | 900*870*1980mm |
YiHeng DHG-9425A Drying Oven Packing list
host x1, instruction manual x1, packing list x1, warranty x1, warranty card x1, fuse x2, shelf x3, communication data cable x1, software CD x1, printing paper x1, U disk x1, UV lamp x1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
