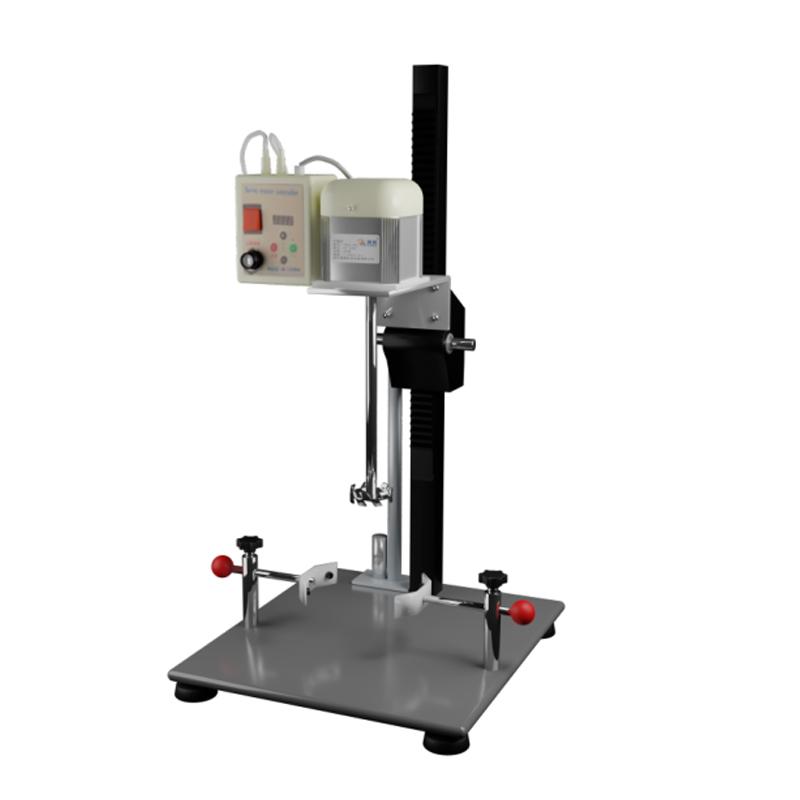

Yaku FS-550D Disperser servo series 550W motor 0-6500r/min variable frequency speed regulation
Adopt 550W motor, support 0-6500r/min wide range frequency conversion speed regulation, equipped with 304 stainless steel dispersion shaft and 600mm large diameter dispersion plate, lifting stroke up to 250mm, taking into account corrosion resistance and dispersion efficiency.
YaKu
FS-550D
-
HUXI HR-400JFS Laboratory High Speed grinding Disperser Square Tube 400W/3L
$ 541.00 -
TRUIT TR 2600/1 Coating Rapid Dispersion Testing Machine, Floor Type, Clamp Type
$ 1543.00 -
Muxuan MXF-D2200 high-grade small batch pilot-scale dispersion Stirrer all-stainless steel frame, electric lift 2.2KW/40L
$ 1694.00 -
Qiwei JFS-750 Coating high-speed frequency conversion Disperser electric lift, with 2.5-liter single-layer barrel
$ 712.00 -
TRUIT TR 2602/1 Coating Rapid Dispersion Tester, Vertical, Clamp Type
$ 1543.00
Product Introduction
FS-550D servo series disperser is adapted to AC220V/50HZ voltage, equipped with 550W motor, supports 0-6500r/min frequency conversion speed regulation, accurate and efficient speed adjustment; Equipped with a ø20×300mm dispersion shaft made of 304 stainless steel and a 600mm large-diameter dispersion disc, it is corrosion-resistant and has excellent dispersion effect, with a lifting stroke of 250mm and a height of 800mm, taking into account operational flexibility and material handling efficiency, and is suitable for material dispersion needs in a variety of scenarios.
Specifications
| model | FS-550D | Electric lifting / manual lifting |
| Operating voltage | AC220V/50HZ | |
| Motor maximum power | 550W | |
| Speed range | 0-6500r/min | |
| speed regulation method | Frequency conversion speed regulation | |
| Lifting stroke | 250mm | |
| Height of the whole machine | 800mm | |
| Dispersion axis | Diameter ø20mm, length 300mm (304 stainless steel) | |
| Dispersion disk | Diameter 600mm (304 stainless steel) | |
YaKu FS-550D Disperser (servo series)Specifications
| LIST | VALUE |
|---|---|
| operating voltage | AC220V/50HZ |
| Motor maximum power | 550W |
| Speed range | 0-6500r/min |
| Speed regulation mode | Frequency conversion speed regulation |
| Lifting stroke | 250mm |
| Overall height | 800mm |
| dispersion axis | Diameter ø20mm, length 300mm (304 stainless steel) |
| dispersion disk | Diameter 600mm (304 stainless steel) |
YaKu FS-550D Disperser (servo series) Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
