YKFS-1100 Disperser servo series 1100W motor 0-5000 rpm frequency conversion speed regulation

Equipped with a 1100W motor, it supports a wide range of frequency conversion speed regulation from 0 to 5000r/min, with accurate adjustment. It adopts 304 stainless steel dispersing shaft and dispersing disc, which is corrosion-resistant and has a stable dispersion effect. The lifting stroke reaches 420mm, making the whole machine compact and lightweight.

Brand

SKU: NB050871

YaKu

Model

YKFS-1100

Get Quote

YaKu shop

Information

Datasheet

What else did others buy

Genuinegoods

YaKu YKFS-1100 Disperser (servo series)Overview
Specifications
Comments
FAQs

YKFS-1100

Disperser (servo series)

Product Introduction

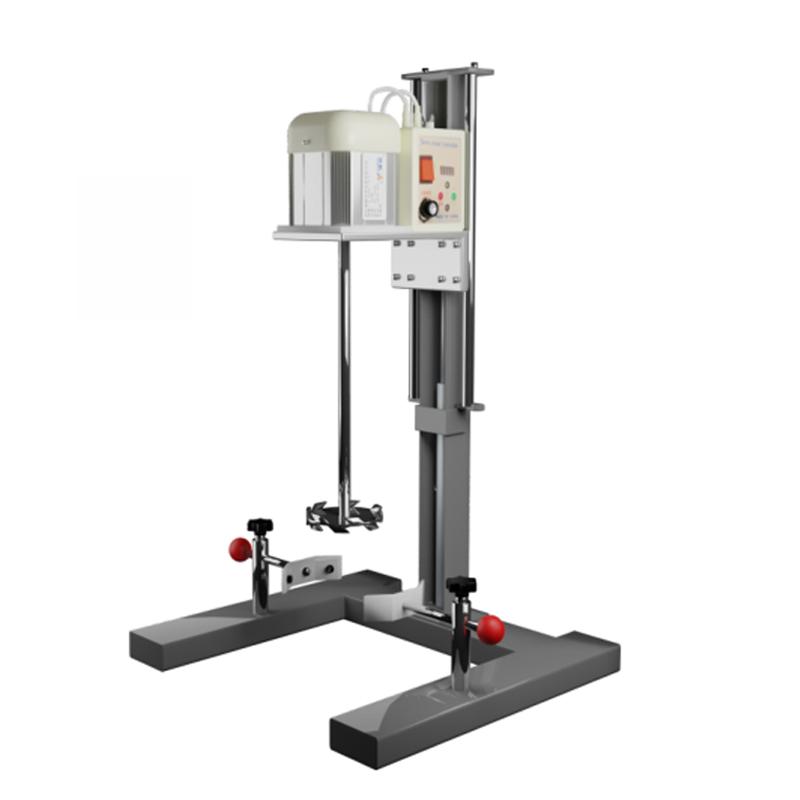

YKFS-1100 servo series disperser is adapted to AC220V/50HZ voltage, equipped with 1100W motor, supports 0-5000r/min frequency conversion speed regulation, precise and flexible adjustment; Equipped with 304 stainless steel 20mm diameter × 350mm length dispersion shaft and 100mm diameter dispersion disc, corrosion resistance and stable dispersion effect, lifting stroke up to 420mm, the height of the whole machine is 830mm, the size is 490*420*880mm, and the weight is only 26Kg.

Specifications

model	YKFS-1100	Electric lifting / manual lifting
Operating voltage	AC220V/50HZ
Motor maximum power	1100W
Speed range	0-5000r/min
speed regulation method	Frequency conversion speed regulation
Lifting stroke	420mm
Height of the whole machine	830mm
Dispersion axis	Diameter 20mm, Length 350mm (304 stainless steel)
Dispersion disk	Diameter ø100mm (304 stainless steel)
Overall machine size	490420880mm
The weight of the whole machine	26Kg

YaKu YKFS-1100 Disperser (servo series)Specifications

LIST	VALUE
operating voltage	AC220V/50HZ
Motor maximum power	1100W
Speed range	0-5000r/min
Speed regulation mode	Frequency conversion speed regulation
Lifting stroke	420mm
Overall height	830mm
dispersion axis	Diameter 20mm, length 350mm (304 stainless steel)
dispersion disk	Diameter ø100mm (304 stainless steel)
Machine size	490420880mm
Machine weight	26Kg

YaKu YKFS-1100 Disperser (servo series) Packing list

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

Is the price listed on the website the final cost for overseas purchases?

[A]

No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q]

What is the specific process for purchasing the product?

[A]

First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q]

What should I do if the instrument I purchase needs repair?

[A]

After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
