Product Introduction

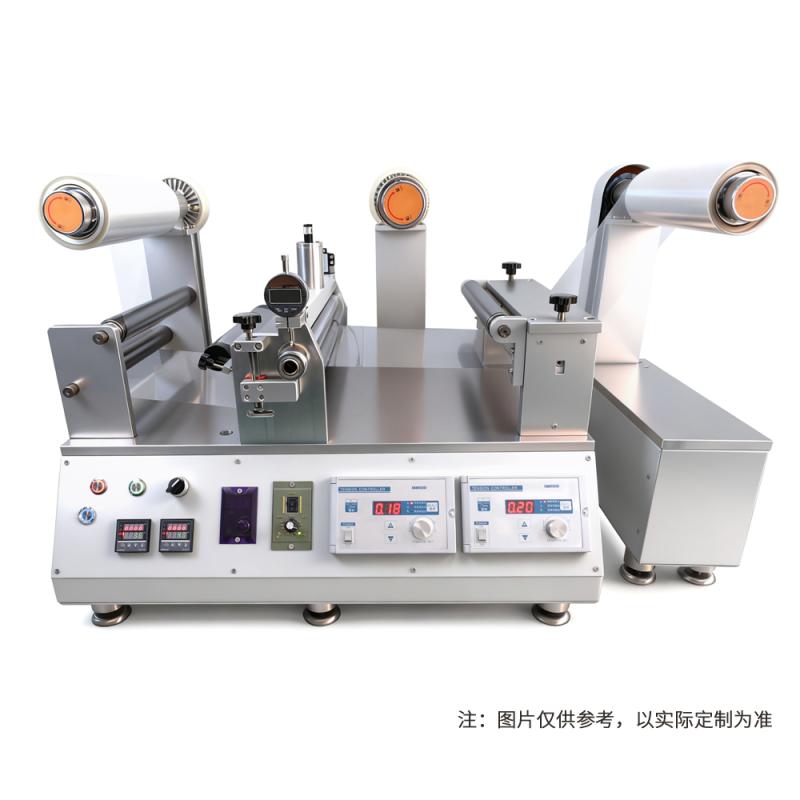

JDH-0.4/300uvblclak small multi-functional coil coating machine adopts unwinding→ scraping (trough heating) → lamination→ winding continuous comma scraper coating process, effective coating width ≤ 300mm, coating thickness can be accurately adjusted to 0.01mm~2mm, coating roller accuracy and coating accuracy up to <0.002mm, ±0.003mm respectively, with digital display adjustment (resolution 0.001mm) and multiple sets of tension controllers, coating rate 2~4.5m/min Forward and reverse continuously variable speed. The equipment supports trough heating rod heating (temperature control RT+~200°C), adapts to a variety of coating materials such as lithium battery paste, glue, ink, and paper, film, aluminum foil and other substrates, is equipped with ultrasonic sensors to display deviations in real time, and the whole machine is powered by AC220V single-phase, with a size of 1624635750mm and a weight of about 120kg, which is compact and can meet the needs of multi-scene small coil coating.
HuiNuo JDH-0.4/300uvblclak Small multifunctional coil coaterSpecifications
| LIST | VALUE |
|---|---|
| Process flow | Unwinding → Scratching (heating in the trough) → Laminating → Unwinding |
| Spreader mode | continuous scratch coating |
| Effective Spreader Width | ≤ 300mm, adjustable through baffle |
| Spreader mode | Scratch (comma scraper) |
| Spreader roller diameter | Ф50mm |
| Spreader roll accuracy | Straightness, roundness, coaxiality, runout < 0.002mm Ra0.05 |
| Spreader Film thickness range | 0.01mm~2mm |
| Film thickness | 0.01Mm (depending on the slurry, refer to the material requirements) |
| Coating surface density | ≤ +/- 1.5% (including substrate, excluding edge anomalies) |
| Spreader rate | 2~ 4.5M/min forward and reverse stepless transmission |
| Drive motor | Asynchronous induction motor |
| Film accuracy | +/- 0.003mm (depending on slurry, reference material requirements) |
| Regulator resolution | 0.001mm |
| Indication display | digital display |
| Heating device | trough heating |
| Heating method | Heating rod |
| Temperature range | RT+~200℃ |
| box volume | About 0.5L |
| Width of guide roller | 300mm |
| substrate width | Max.300mm |
| Back roller diameter | Ф150mm |
| Reel diameter | 3 inches. |
| rewinding diameter | Unwinding Max. < unk > 400mm; Unwinding Max. < unk > 600mm |
| Tension controller | Unwinding control × 2; unwinding control × 1 |
| Applicable materials | Lithium battery, glue, silicone oil, UV, inks, cataplasm, hot-melt adhesive, gel, plaster, slurry, etc |
| Applicable substrate | Paper, film, aluminum foil, plastic, non-woven fabric, etc |
| Machine power | 2000W |
| Host power supply | AC220V (single phase) 50Hz |
| Machine size | 1624 * 635 * 750mm (subject to actual customization) |
| Machine weight | About 120kg (subject to actual customization) |
| correction module | / |
| power | 150w |
| reaction time | 4ms |
| function | Real-time display of material deviation |
| processor | Main frequency 48MHz |
| Sensor | Ultrasonic Sensor |
| wide | 300mm |
| UV curing module | / |
| UV curing area | Length 500mm * 300mm |
| UV curing lamp source | 365Nm wavelength mercury lamp/LED (the height of the lamp source is adjustable, the height range: 5cm~ 30cm) |
| UV curing time | Max.5min |
| Tunnel oven module | / |
| Temperature range | RT~200℃ |
| Heating system | Infrared tube heater + centrifugal blower + PT100 thermistor |
| Temperature control algorithm | PID control algorithm |
| Chill down module | / |
| Chill down | Stainless steel roller contact chilling down |
| Heat medium | Pumping circulating water |
| Heat dissipation method | Fan cooling chilled down |
| Ion wind static removal module | / |
| ion generation mode | Corona discharge, pulsed AC |
| output voltage | 7.2KV |
| compressed air pressure | 30-75psi |
HuiNuo JDH-0.4/300uvblclak Small multifunctional coil coater Packing list
Equipment machine × 1, comma scraper x1, air knife x1, power cord × 1, UV curing module x1, drying channel module x1, chill down module x1, ion wind static removal module x1, warranty card & manual x1, certificate x1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
