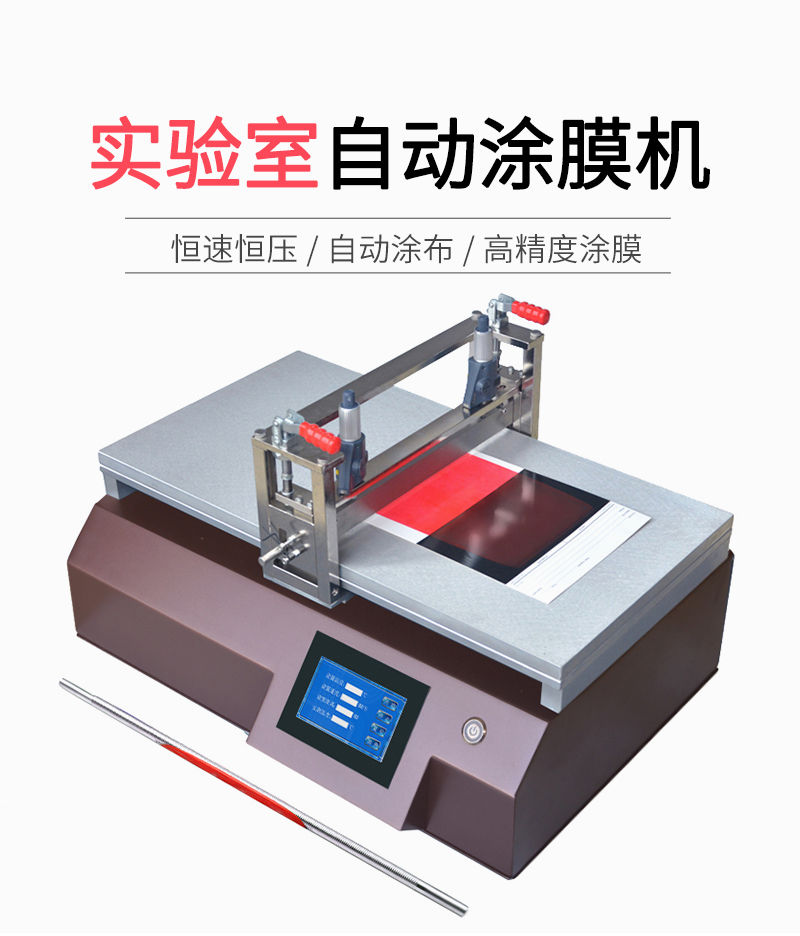

China TBJ-X1 lithium battery small Coater vacuum adsorption scraper type Film Applicator Spreader size is 300 * 400mm
Vacuum adsorption + scraper two-in-one, to achieve high viscosity thick film Spreader, film thickness range of 0~ 10mm, suitable for PET film substrate scraping, touch screen control operation is simple.
zy
TBJ-X1
-
Domestic TBJ-B2-DJ17 wire rod scraper type coating machine, small film scraping machine, coating format 900 * 1300mm
$ 7649.00 -
China TBJ-X2-DJ3 Automatic Film Applicator bar + Heating + Vacuum chuck + Automatic feeding
$ 9860.00 -
CHINA TBJ-X5-DJ9 Floor Type Automatic Film Applicator Automatic Feeding drawdown blade Coater
$ 13017.00 -
HuiNuo TM1300AF/01 bar heating vacuum adsorption Coater (with automatic feeding), ECA 500 * 500mm, with automatic feeding system
$ 7176.00 -
Chinese TBJ-B1-DJ7 experimental drawdown blade Coater bracket height adjustable, ECA 400 * 400mm
$ 7176.00
TBJ-X experimental small coating testing machine all use imported accessories, and the price is cheap, which has been favored by many multinational enterprise R&D institutions, many familiar universities and scientific research institutions at home and abroad. By controlling the speed and stable pressure, the coating and gluing effect are guaranteed, and the uniformity and smoothness of the coating and gluing are guaranteed.
Because the main factors affecting the coating film are the coating speed and the pressure applied to the film applicator, the coating applied by hand often has inconsistencies, especially the difference between different people, which brings difficulties to compare the test results between samples. The automatic film applicator is designed to make it easy for the operator to apply precise wet films on different substrates, greatly improving the reproducibility of the coating film.
Optional accessories
|
|
|

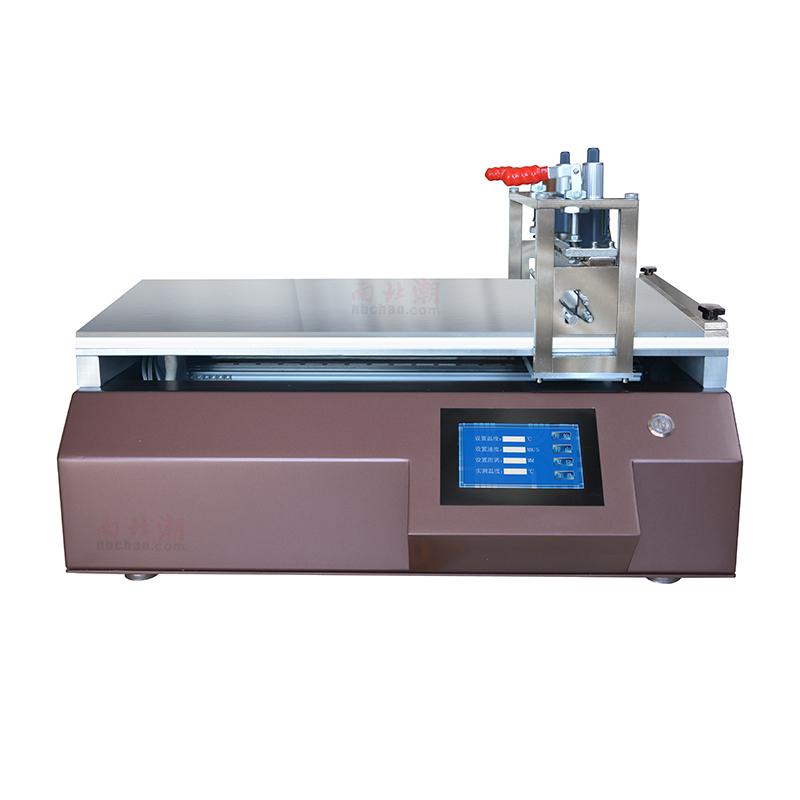

zy TBJ-X1 Small coaterSpecifications
| LIST | VALUE |
|---|---|
| Spreader mode | Spreader |
| Scraper type | Integrated scraper |
| Spreader accuracy | ±0.003mm |
| Spreader Film thickness range | 0~ 10Mm adjustable |
| Spreader Width | 400mm |
| Scraper material | 304 stainless steel |
| Spreader rate | 5~ 200Mm/s (< 5mm/s can be customized) |
| Effective Spreader Area | 400 * 300Mm (can be customized) |
| Spreader Itinerary | Digital arbitrary setting within the range of 1~ 400mm |
| Vacuum adsorption size | 400 * 300Mm (material aluminum alloy) |
| vacuum aperture | Φ1.2mm |
| Vacuum hole spacing | 20*20mm |
| Substrate fixing method | Vacuum adsorption |
| Control mode | Touch screen control |
| Host power supply | 220V 50HZ |
| Dimension | 626*410*520mm |
| Net weight | 65KG |
| speed control | Infinitely variable speed |
| Bottom plate material | aluminum alloy |
| Vacuumpump size | 380*180*280mm |
| Optional accessories | Leakage tank, substrate fixture, trimming horizontal height support foot device, Glass plate, Silicone pad and weight (for applications with uneven film thickness of Spreader substrate), film width control baffle |
| customizable function | Automatic lame plating device, UV curing device, automatic inking system, air knife drying, remote control, upper infrared heating, double extrusion Spreader |
zy TBJ-X1 Small coater Packing list
Film Applicator X1, External Vacuumpump X1, Scraper X1, Product Manual X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
