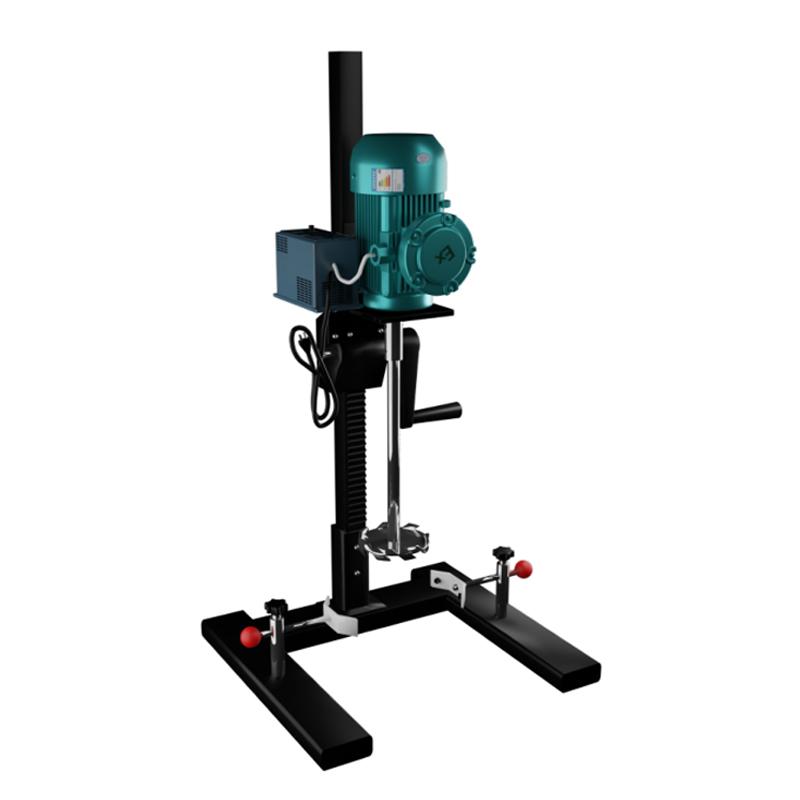

Yaku YKFS-1.1 Explosion-proof Disperser Frequency conversion speed regulation, hand lift 304 stainless steel dispersion plate
Adopt 0-3000r/min variable frequency speed regulation, adapt to ≤ 40L processing capacity, equipped with hand lifting device and 304 stainless steel dispersion shaft and dispersion plate, the whole machine has explosion-proof characteristics, suitable for scattered operations with explosion-proof requirements.
YaKu
YKFS-1.1
-
MUXUAN XD-E550 Lab Disperser 550W/8000rpm
$ 690.00 -
Qiwei FS-1100D Experimental Disperser (digital display high-speed) with 5L Mixing Tank
$ 467.00 -
Xinlinte YJX200 Planetary Mixing & dispersing Machine High viscosity mixer 200g
$ 6650.00 -
MUXUAN MJB-B120 Laboratory Stirrer High and Low Speed Regulation 100000cps Viscosity
$ 408.00 -
TRUIT TR 2600/2 Coating Rapid Dispersion Testing Machine, Floor Type, Bottle Clip Type
$ 1543.00
Product Introduction
YKFS-1.1 explosion-proof series disperser is powered by AC220V/50HZ, equipped with a 1.1KW maximum power motor, supports 0-3000r/min frequency conversion speed regulation, and is suitable for ≤ 40L material handling capacity (the actual mixing amount is related to the viscosity of the material). The equipment is equipped with a hand-cranked lifting device, which can place a barrel with a maximum size of 400mm in diameter and a height of 450mm, a dispersion shaft made of 304 stainless steel with a diameter of 20mm and a length of 400mm, and a 304 stainless steel dispersion disc with a diameter of 120mm, with a height of 950mm and a weight of 35Kg, which has explosion-proof characteristics and is suitable for small and medium-sized material dispersion operations with explosion-proof needs.
Specifications
| model | YKFS-1.1 | Explosion-proof |
| Operating voltage | AC220V/50HZ | |
| Motor maximum power | 1.1KW | |
| Speed range | 0-3000r/min | |
| speed regulation method | Frequency conversion speed regulation | |
| Throughput | ≤ 40L (the actual stirring amount is related to the viscosity of the material) | |
| Height of the whole machine | 950mm | |
| Lifting mode | Hand crank lifting | |
| The maximum size of the barrel that can be placed | Diameter 400mm, height 450mm | |
| Dispersion axis | Diameter 20mm, Length 400mm (304 stainless steel) | |
| Dispersion disk | Diameter 120mm (304 stainless steel) | |
| The weight of the whole machine | 35Kg | |
YaKu YKFS-1.1 Disperser (explosion-proof series)Specifications
| LIST | VALUE |
|---|---|
| operating voltage | AC220V/50HZ |
| Motor maximum power | 1.1KW |
| Speed range | 0-3000r/min |
| Speed regulation mode | Frequency conversion speed regulation |
| throughput | ≤ 40L (Stir amount is related to material consistency) |
| Overall height | 950mm |
| Lifting method | Hand lift |
| Maximum bucket size | Diameter 400mm, height 450mm |
| dispersion axis | Diameter 20mm, length 400mm (304 stainless steel) |
| dispersion disk | Diameter 120mm (304 stainless steel) |
| Machine weight | 35Kg |
YaKu YKFS-1.1 Disperser (explosion-proof series) Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
