Yaku YKFS-1.5 Disperser explosion-proof series 1.5KW frequency conversion speed regulation, electric lift
Adopt 1.5KW motor, support 0-3000r/min variable frequency speed regulation, equipped with 470mm stroke electric lift and 304 stainless steel dispersing shaft and dispersing disc, with explosion-proof characteristics, suitable for small and medium material handling.
YaKu
YKFS-1.5
-
MODERNER KS-370C Coating Rapid Dispersion Testing Machine, Floor-to-Floor Clamp Type
Login -
MUXUAN XD-B400 Experimental Stirring Sand Grinding Disperser Stirring Mixer
$ 529.00 -
Qiwei JFS-550 high-speed frequency conversion Disperser 550W with 2.5L single-layer material bucket
$ 489.00 -
Qiwei GFJ-0.5 (GFJ-550) laboratory small Disperser (high-speed frequency conversion) with 5L Mixing Tank
$ 579.00 -
CHINA FS-2.2KW Frequency Conversion High Speed Disperser Brushless Mute 2200w
$ 837.00
Product Introduction

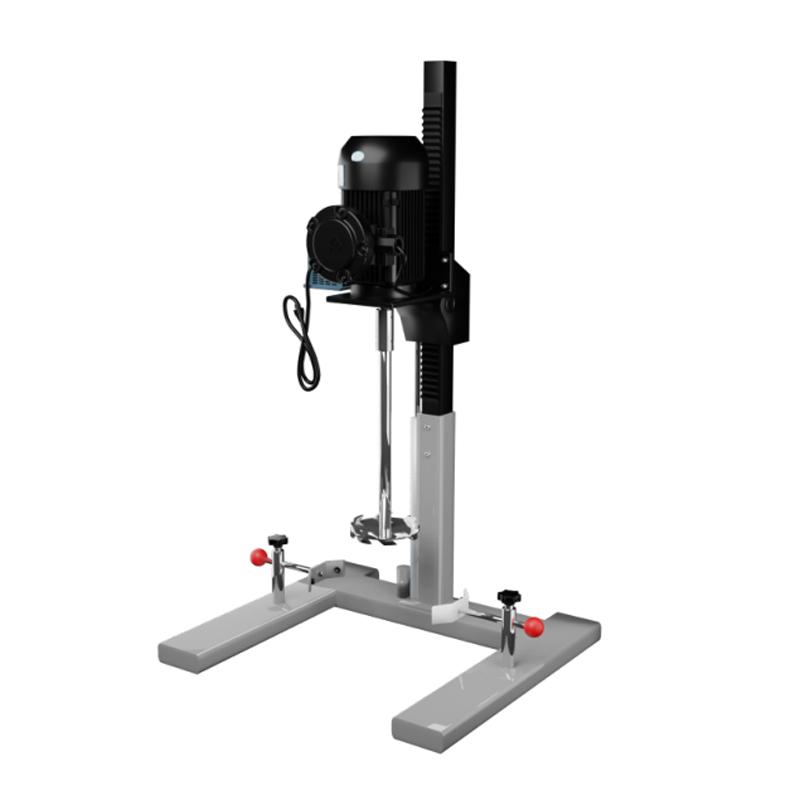

YKFS-1.5 explosion-proof series disperser is powered by AC220V/50HZ, equipped with a 1.5KW maximum power motor, supports 0-3000r/min frequency conversion speed regulation, and is suitable for ≤ 50L material handling capacity (the actual stirring amount is related to the viscosity of the material). The equipment is equipped with a 470mm stroke electric lifting device, the dispersion shaft is made of 304 stainless steel with a diameter of 20mm and a length of 400mm, and a 304 stainless steel dispersion disc with a diameter of 120mm, with a size of 5805201080mm and a weight of 35Kg, which has explosion-proof characteristics and is suitable for small and medium-sized material dispersion operations with explosion-proof needs.
Specifications
| model | YKFS-1.5 | Explosion-proof electric |
| Operating voltage | AC220V/50HZ | |
| Motor maximum power | 1.5KW | |
| Speed range | 0-3000r/min | |
| speed regulation method | Frequency conversion speed regulation | |
| Throughput | ≤ 50L (the actual stirring volume is related to the viscosity of the material) | |
| Height of the whole machine | 1000mm | |
| Lifting mode | Electric lift | |
| Lifting stroke | 470mm | |
| Dispersion axis | Diameter 20mm, Length 400mm (304 stainless steel) | |
| Dispersion disk | Diameter 120mm (304 stainless steel) | |
| Overall machine size | 580*520*1080mm | |
| The weight of the whole machine | 35Kg | |
YaKu YKFS-1.5 Disperser (explosion-proof series)Specifications
| LIST | VALUE |
|---|---|
| operating voltage | AC220V/50HZ |
| Motor maximum power | 1.5KW |
| Speed range | 0-3000r/min |
| Speed regulation mode | Frequency conversion speed regulation |
| throughput | ≤ 50L (Stir amount is related to material consistency) |
| Overall height | 1000mm |
| Lifting method | Electric lift |
| Lifting stroke | 470mm |
| dispersion axis | Diameter 20mm, length 400mm (304 stainless steel) |
| dispersion disk | Diameter 120mm (304 stainless steel) |
| Machine size | 580*520*1080mm |
| Machine weight | 35Kg |
YaKu YKFS-1.5 Disperser (explosion-proof series) Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
