Yaku YKFS-1.1 Disperser full explosion-proof series 1.1KW frequency conversion speed regulation, hand lift
Adopt full explosion-proof design, equipped with 1.1KW motor and 0-3000r/min frequency conversion speed regulation, support hand lifting, can handle ≤ 40L materials, suitable for 400mm diameter barrel, dispersion shaft and dispersion plate are made of 304 stainless steel.
YaKu
YKFS-1.1
-
Qiwei 1.5L double layer, barrel
$ 113.00 -
Yaku FS-680 digital display laboratory Disperser manual lift
$ 265.00 -
MUXUAN MXF-A3Q Small Batch Mixing Disperser Full Explosion-proof Type 10-100L
$ 1894.00 -
Qiwei FS400D Lab High Speed Disperser 400W
$ 323.00 -
Qiwei GFJ-0.7 (GFJ-750) Coating Disperser high-speed frequency conversion, with 2.5L single-layer barrel
$ 666.00
Product Introduction

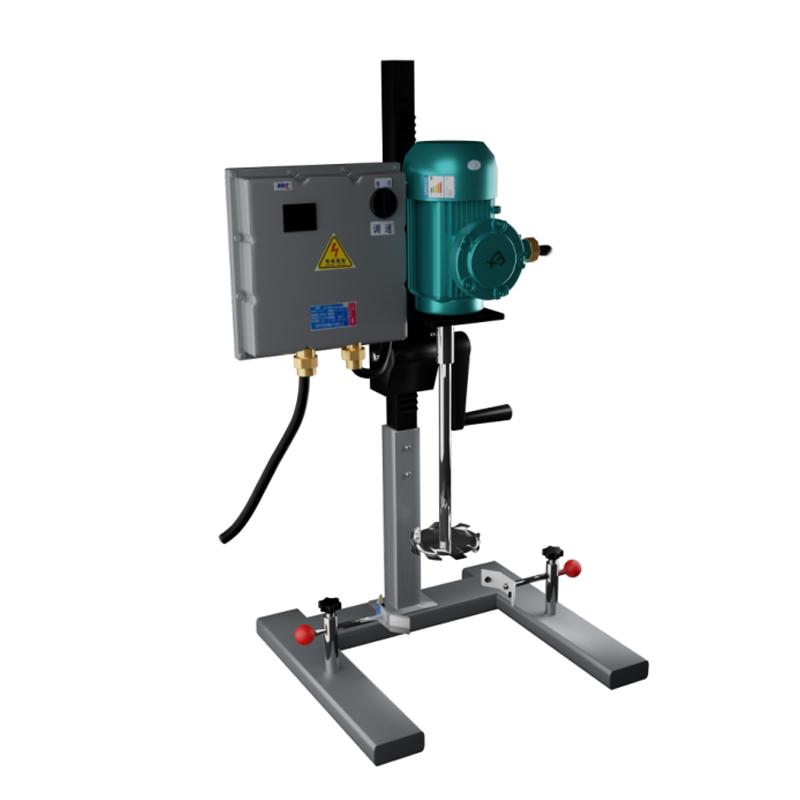

YKFS-1.1 fully explosion-proof series disperser is powered by AC220V/50HZ, equipped with a 1.1KW maximum power motor, supports 0-3000r/min frequency conversion speed regulation, and is suitable for ≤ 40L material handling capacity (the actual mixing amount is related to the viscosity of the material). The equipment is equipped with a hand-cranked lifting device, which can place a barrel with a maximum size of 400mm in diameter and a height of 450mm, a dispersion shaft made of 304 stainless steel with a diameter of 20mm and a length of 400mm, and a 304 stainless steel dispersion disc with a diameter of 120mm, with a height of 950mm and a weight of 43Kg.
Specifications
| model | YKFS-1.1 | Fully explosion-proof |
| Operating voltage | AC220V/50HZ | |
| Motor maximum power | 1.1KW | |
| Speed range | 0-3000r/min | |
| speed regulation method | Frequency conversion speed regulation | |
| Throughput | ≤ 40L (the actual stirring amount is related to the viscosity of the material) | |
| Height of the whole machine | 950mm | |
| Lifting mode | Hand crank lifting | |
| The maximum size of the barrel that can be placed | Diameter 400mm, height 450mm | |
| Dispersion axis | Diameter 20mm, Length 400mm (304 stainless steel) | |
| Dispersion disk | Diameter 120mm (304 stainless steel) | |
| The weight of the whole machine | 43Kg | |
YaKu YKFS-1.1 Disperser (full explosion-proof series)Specifications
| LIST | VALUE |
|---|---|
| operating voltage | AC220V/50HZ |
| Motor maximum power | 1.1KW |
| Speed range | 0-3000r/min |
| Speed regulation mode | Frequency conversion speed regulation |
| throughput | ≤ 40L (Stir amount is related to material consistency) |
| Overall height | 950mm |
| Lifting method | Hand lift |
| Maximum bucket size | Diameter 400mm, height 450mm |
| dispersion axis | Diameter 20mm, length 400mm (304 stainless steel) |
| dispersion disk | Diameter 120mm (304 stainless steel) |
| Machine weight | 43Kg |
YaKu YKFS-1.1 Disperser (full explosion-proof series) Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
