Yaku YKFS-2.2 Full Explosion-proof Disperser Frequency conversion speed regulation, hand lift 0-3000r/min
Adopt 0-3000r/min frequency conversion speed regulation, equipped with 150mm stainless steel dispersion plate and hand lifting mechanism, the whole machine is fully explosion-proof design, can handle ≤ 100L materials and adapt to 600mm * 600mm barrels.
YaKu
YKFS-2.2
-
Qiwei GFJ-0.7 (GFJ-750) Coating Disperser High Speed Frequency Conversion
$ 655.00 -
TRUIT TR 2600/1 Coating Rapid Dispersion Testing Machine, Floor Type, Clamp Type
$ 1543.00 -
High Speed Disperser Qiwei FS-400D digital display High Speed Disperser electric lift model with 2.5-liter single-layer drum
$ 424.00 -
QIWEI JFS-550B Frequency Converter Disperser 550W/2800rpm Automatic Lifting
$ 535.00 -
JINGKELIAN SDF-550 Experimental Multi-purpose Disperse Sand Mill, Frequency Conversion Motor Stir Disperse Sand Mill Integrated
$ 792.00
Product Introduction

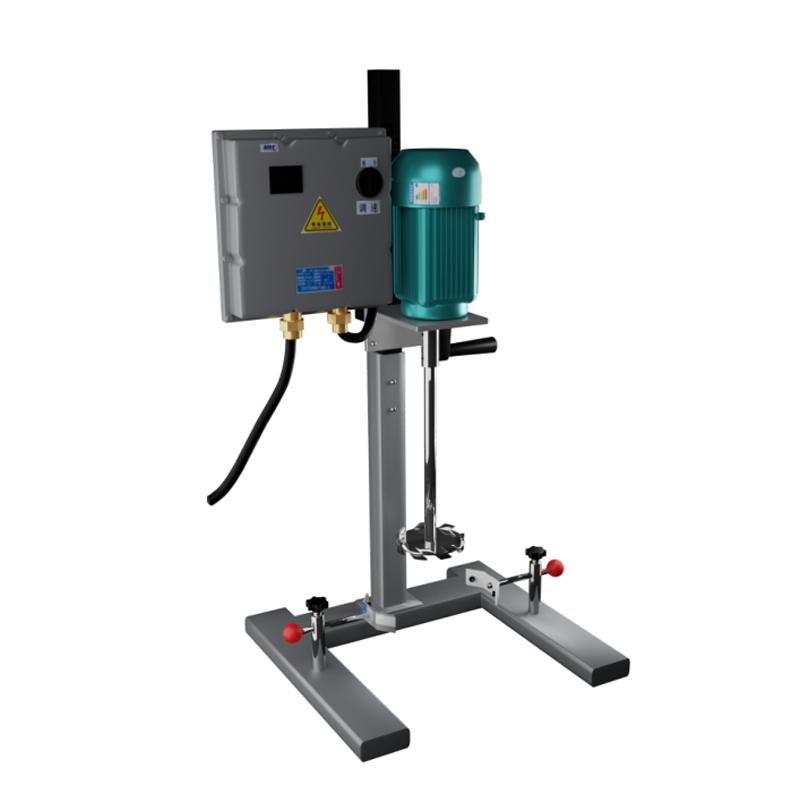

YKFS-2.2 full explosion-proof series disperser is powered by AC220V/50HZ, equipped with a 2.2KW motor, supports 0-3000r/min frequency conversion speed regulation, and is suitable for a material handling capacity of ≤100L (the actual mixing amount is related to the viscosity of the material). The equipment adopts a hand-cranked lifting method, equipped with a dispersion shaft with a diameter of 20mm and a length of 600mm and a 304 stainless steel dispersion disc with a diameter of 150mm, which can place a barrel with a maximum size of 600mm*600mm and supports customization, with a height of 1350mm and a weight of 53Kg, and the full explosion-proof design is suitable for special operation scenarios to meet the needs of material dispersion on a medium and large scale.
Specifications
| model | YKFS-2.2 | Fully explosion-proof |
| Operating voltage | AC220V/50HZ | |
| Motor maximum power | 2.2KW | |
| Speed range | 0-3000r/min | |
| speed regulation method | Frequency conversion speed regulation | |
| Throughput | ≤ 100L (the actual stirring volume is related to the viscosity of the material) | |
| Height of the whole machine | 1350mm | |
| Lifting mode | Hand crank lifting | |
| The maximum size of the barrel that can be placed | 600mm*600mm (customizable) | |
| Dispersion axis | Diameter 20mm, length 600mm | |
| Dispersion disk | Diameter 150mm (304 stainless steel) | |
| The weight of the whole machine | 53Kg | |
YaKu YKFS-2.2 Disperser (full explosion-proof series)Specifications
| LIST | VALUE |
|---|---|
| operating voltage | AC220V/50HZ |
| Motor maximum power | 2.2KW |
| Speed range | 0-3000r/min |
| Speed regulation mode | Frequency conversion speed regulation |
| throughput | ≤ 100L (Stir amount is related to material consistency) |
| Overall height | 1350mm |
| Lifting method | Hand lift |
| Maximum bucket size | 600Mm * 600mm (can be customized) |
| dispersion axis | Diameter 20mm, length 600mm |
| dispersion disk | Diameter 150mm (304 stainless steel) |
| Machine weight | 53Kg |
YaKu YKFS-2.2 Disperser (full explosion-proof series) Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
