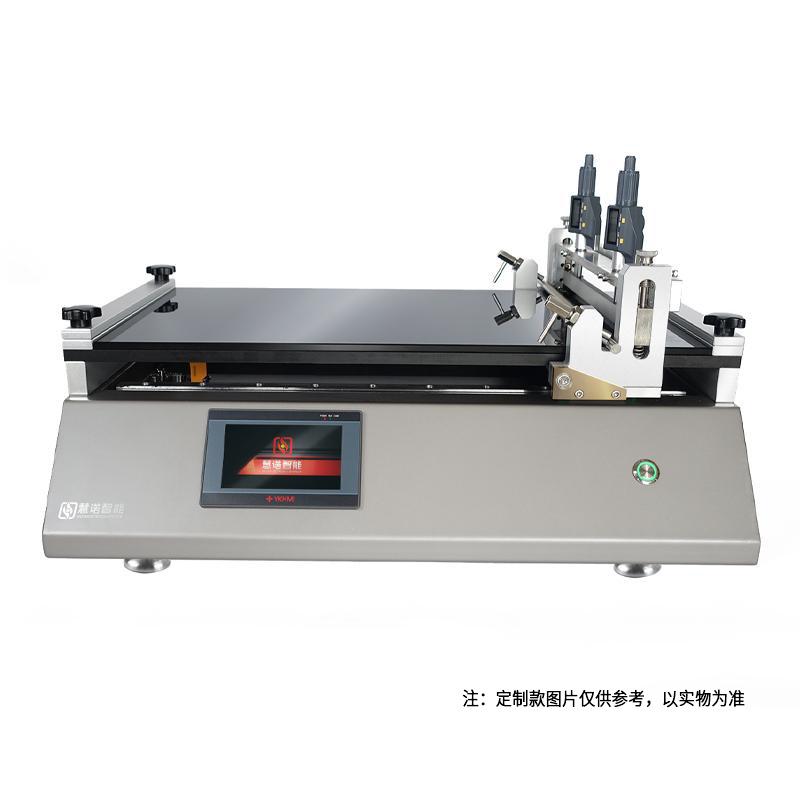

Huinuo TM3000Pro/30 Automatic Film Applicator Wire rod drawdown blade Coater Effective Spreader area 80 * 30cm Servo motor

The equipment has both wire rod and scraper Spreader mode, Spreader speed 1~ 300mm/s stepless speed regulation, scraper Spreader Film thickness 0.1~ 10mm. The clamshell scraper head is easy to clean, equipped with high flatness hard aluminum alloy baseplate and servo motor drive.

Brand

SKU: NB050887

HuiNuo

Model

TM3000pro/30

Price

$ 4176.00

Promotion

Service

The delivery and service By NBchao.Com

Get Quote

HuiNuo shop

Information

Datasheet RFQ Contract Catalog Manual

What else did others buy

Genuinegoods

HuiNuo TM3000pro/30 Automatic Film ApplicatorOverview
Specifications
Comments
FAQs

TM3000pro/30

Automatic Film Applicator

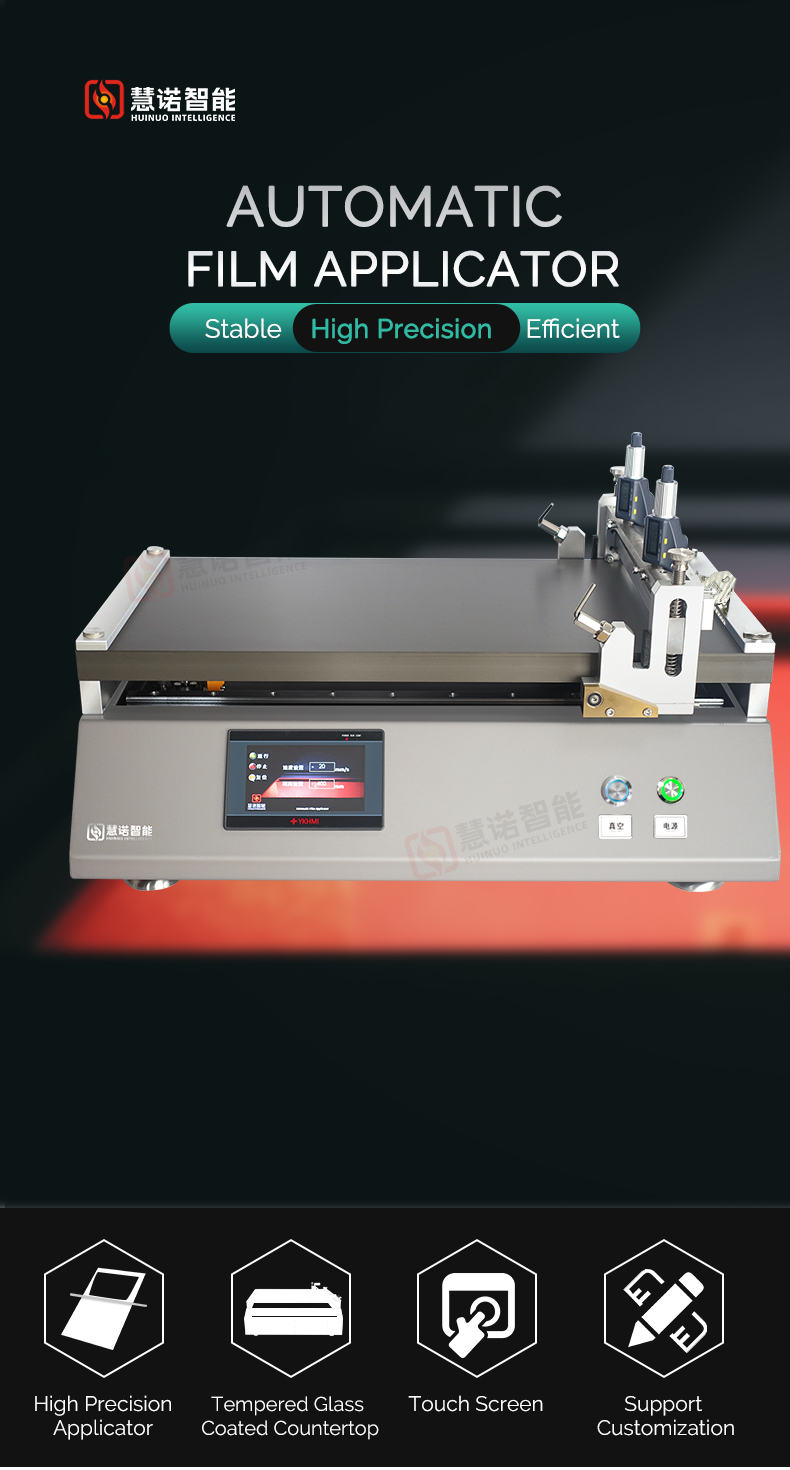

Huinuo TM3000Pro/30 Automatic Film Applicator Wire rod drawdown blade Coater Effective Spreader area 80 * 30cm Servo motor Figure 1

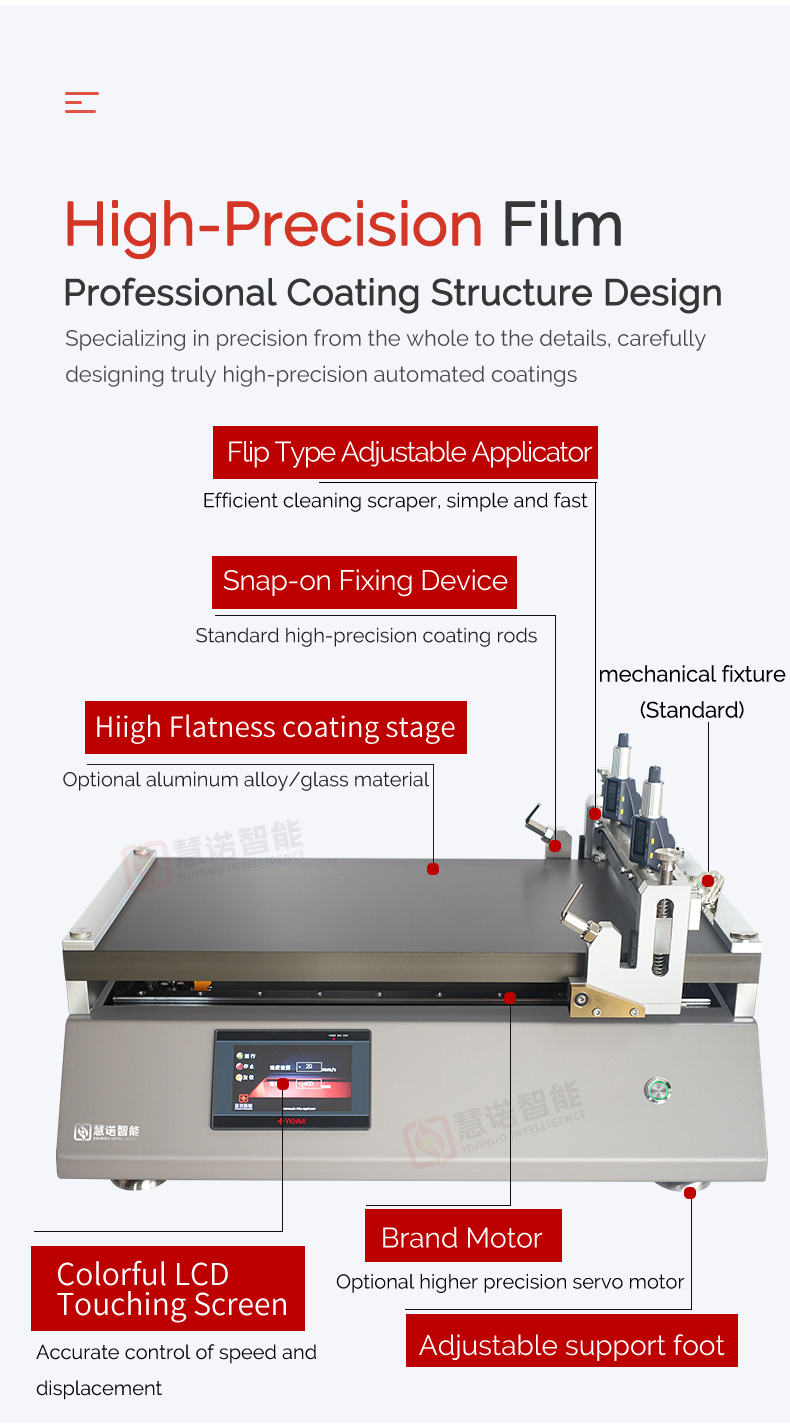

Huinuo TM3000Pro/30 Automatic Film Applicator Wire rod drawdown blade Coater Effective Spreader area 80 * 30cm Servo motor Figure 2

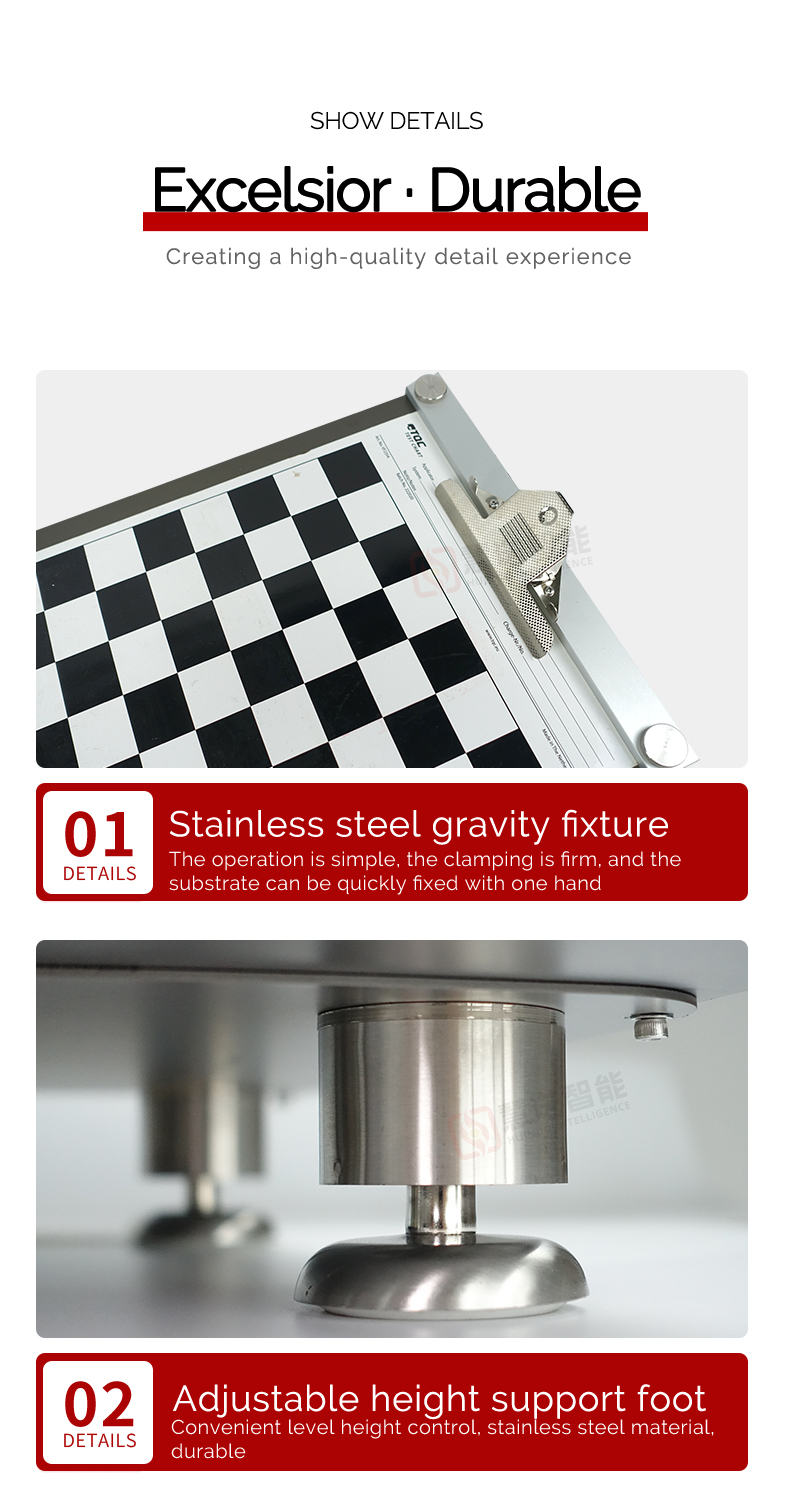

Huinuo TM3000Pro/30 Automatic Film Applicator Wire rod drawdown blade Coater Effective Spreader area 80 * 30cm Servo motor Figure 3

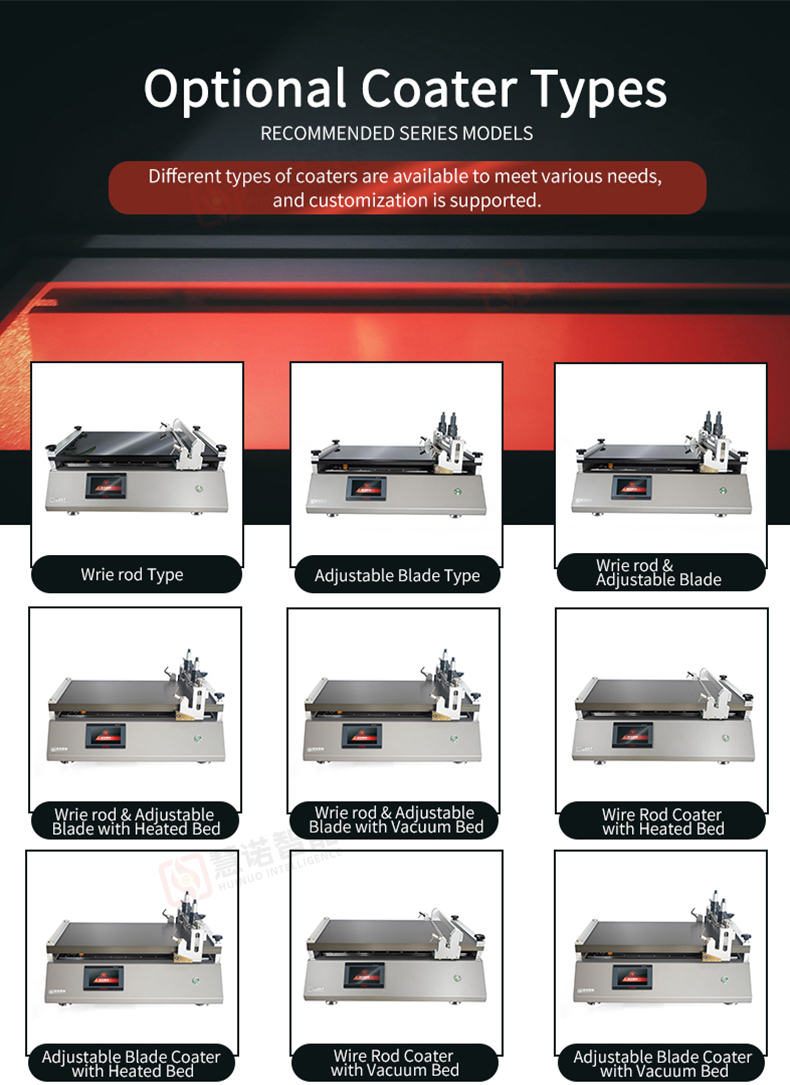

Huinuo TM3000Pro/30 Automatic Film Applicator Wire rod drawdown blade Coater Effective Spreader area 80 * 30cm Servo motor Figure 4

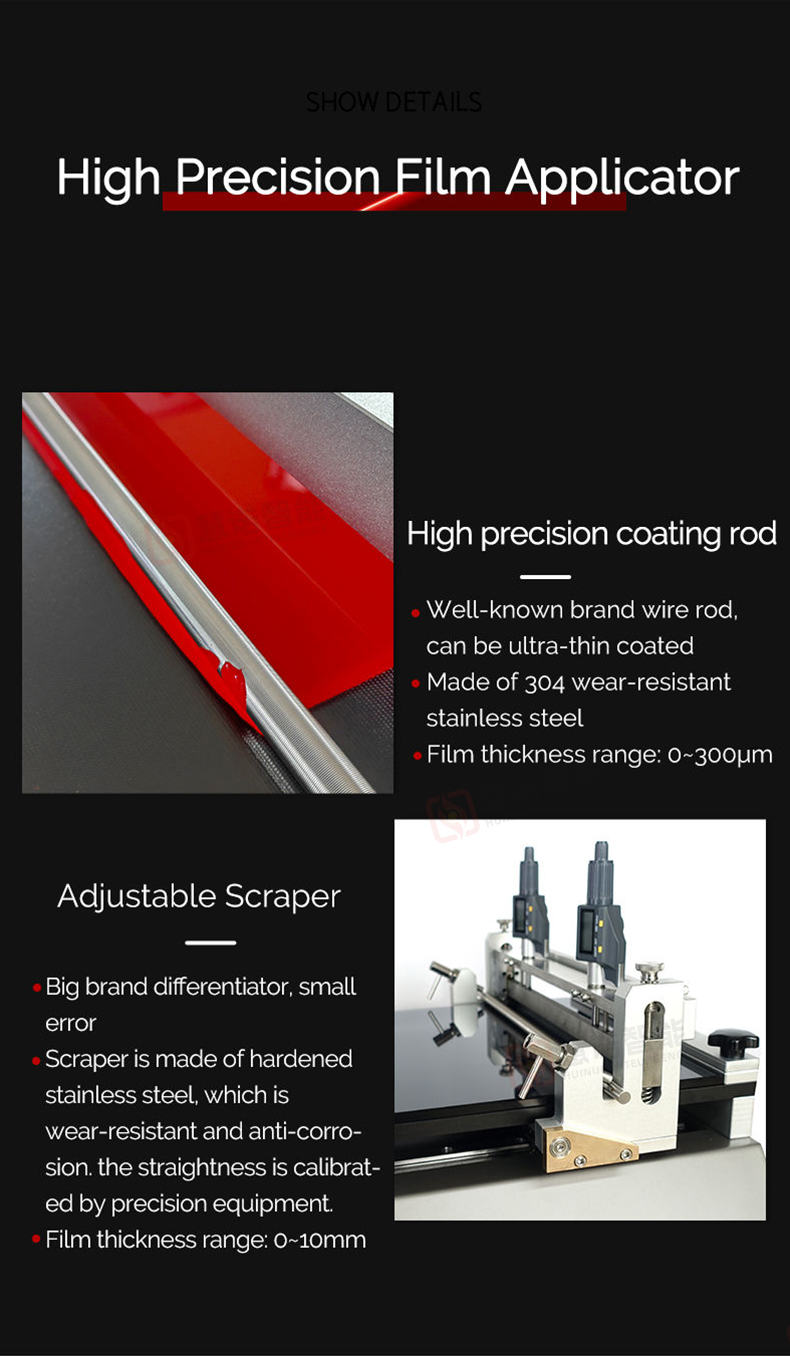

Huinuo TM3000Pro/30 Automatic Film Applicator Wire rod drawdown blade Coater Effective Spreader area 80 * 30cm Servo motor Figure 5

Huinuo TM3000Pro/30 Automatic Film Applicator Wire rod drawdown blade Coater Effective Spreader area 80 * 30cm Servo motor Figure 6

Huinuo TM3000Pro/30 Automatic Film Applicator Wire rod drawdown blade Coater Effective Spreader area 80 * 30cm Servo motor Figure 7

Huinuo TM3000Pro/30 Automatic Film Applicator Wire rod drawdown blade Coater Effective Spreader area 80 * 30cm Servo motor Figure 8

Huinuo TM3000Pro/30 Automatic Film Applicator Wire rod drawdown blade Coater Effective Spreader area 80 * 30cm Servo motor Figure 9

Huinuo TM3000Pro/30 Automatic Film Applicator Wire rod drawdown blade Coater Effective Spreader area 80 * 30cm Servo motor Figure 10

Huinuo TM3000Pro/30 Automatic Film Applicator Wire rod drawdown blade Coater Effective Spreader area 80 * 30cm Servo motor Figure 11

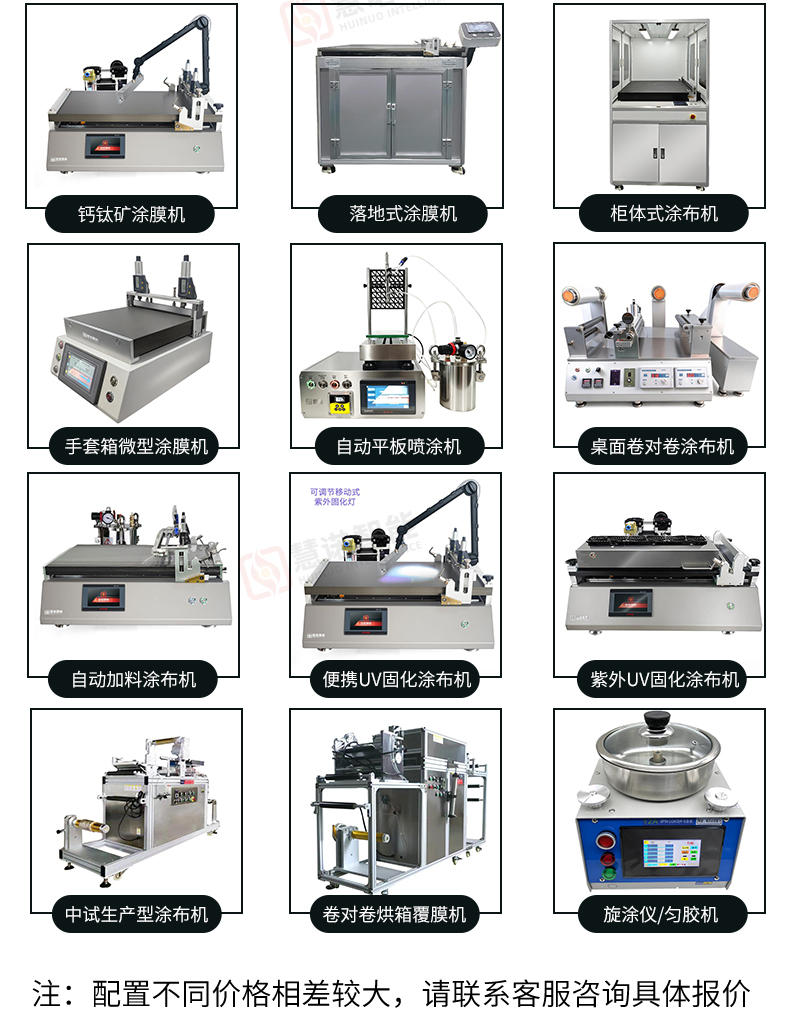

Huinuo TM3000Pro/30 Automatic Film Applicator Wire rod drawdown blade Coater Effective Spreader area 80 * 30cm Servo motor Figure 12

Huinuo TM3000Pro/30 Automatic Film Applicator Wire rod drawdown blade Coater Effective Spreader area 80 * 30cm Servo motor Figure 13

HuiNuo TM3000pro/30 Automatic Film ApplicatorSpecifications

LIST	VALUE
Spreader mode	Wire rod + scraper

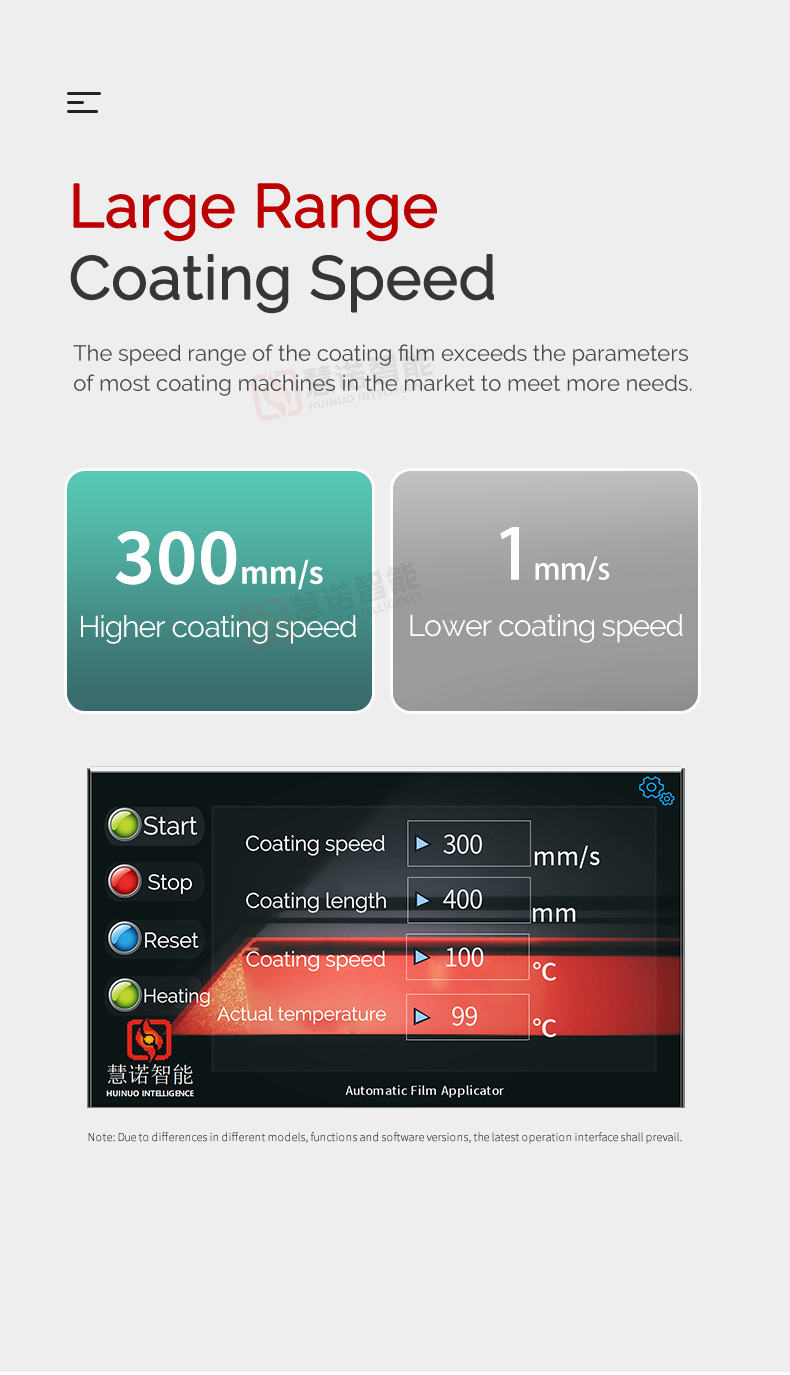

Spreader rate	1~ 300Mm/s stepless speed regulation (can be customized)
Substrate fixing method	fixture
Spreader material	Glass countertop (optional hard aluminum baseplate)
Spreader size	1040*330mm
Effective Spreader Area	800 * 300Mm (can be customized)
Spreader Film thickness range	Different rod numbers Film thickness is different, with High Accuracy imported wire rod
Wire rod accuracy	±0.001mm
Spreader Film thickness range	0.1~ 10Mm (clamshell design is easy to clean)
Scraper material	Die steel
Spreader Width	300mm
Spreader accuracy	±0.003mm
Drive motor	Servo motor
power	400w
operating language	Chinese (can be customized in English)
display screen	Color LCD touch screen
Host power supply	100V~220V/50~60HZ
Dimension	1060 * 440 * 430Mm (subject to the actual product)

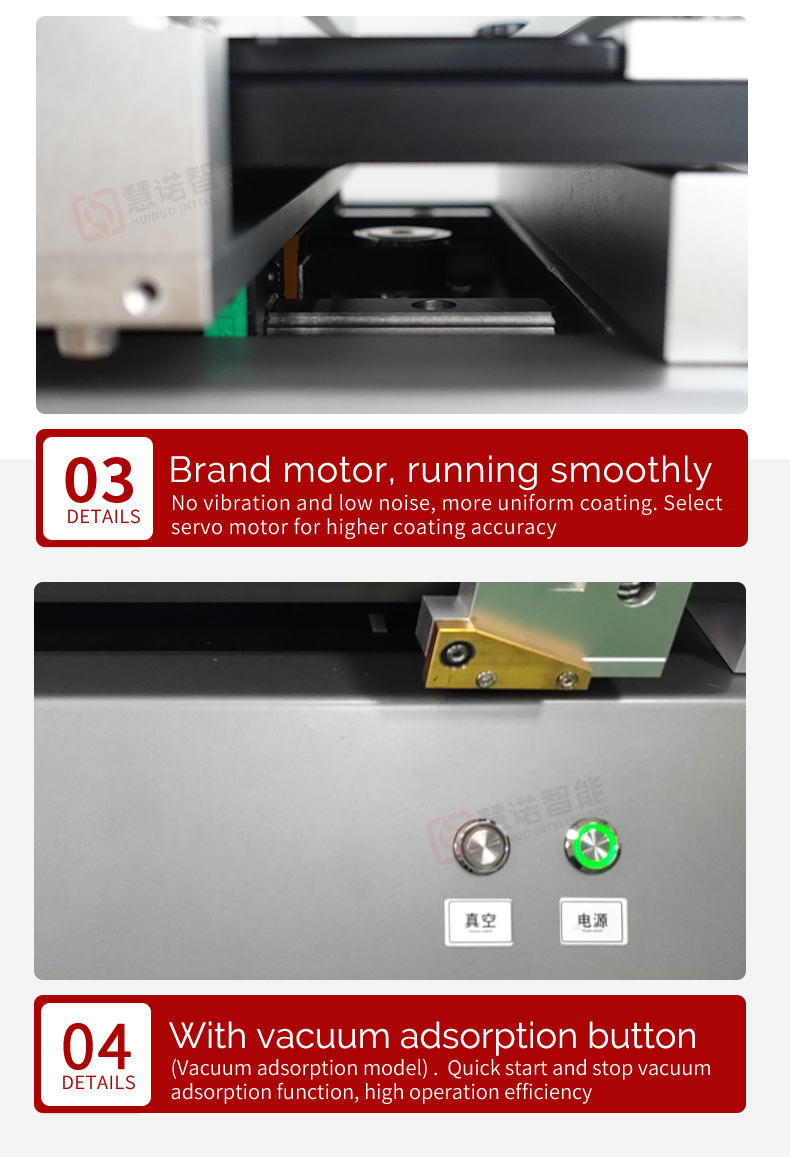

optional feature	Heating, vacuum adsorption

HuiNuo TM3000pro/30 Automatic Film Applicator Packing list

Film Applicator x1, Wire Bar x1, Scraper x1, Manual x1, Certificate x1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

Our laboratory needs to make film samples of lithium battery slurry, which requires uniform film thickness and high accuracy. Do you have a suitable automatic Film Applicator recommendation?

[A]

We recommend Huinuo TM3000Pro/30 Automatic Film Applicator. It has both wire rod and scraper Spreader methods, and the wire rod accuracy can reach +/- 0.001mm. It is suitable for experiments that require High Accuracy and uniform film such as lithium battery slurry. Its servo motor drive and touch screen control also ensure the Stability and Repeatability of the Spreader process.

[Q]

We mainly study glue and Resin materials, and we need to quickly prepare samples on different substrates. At the same time, the equipment should be easy to clean. Is there any recommendation?

[A]

For film research on glue and Resin materials, this Film Applicator is recommended. It adopts a clamshell scraper Spreader head design, which is very convenient to clean and can effectively avoid cross-contamination of samples. At the same time, it supports scraping on Glass, cardboard, fabric and other substrates, and the Spreader speed and length can be adjusted freely, which can meet your fast and diverse sample preparation needs.
