Huino SZQ-190 5/10/15/20 4-sided Applicator film applicator +/- 2 micron accuracy Spreader width 190mm
Accuracy up to +/- 2 microns, made of 9Cr18Mo high Hardness stainless steel, Hardness value 50~ 55HRC, smooth surface wear resistance and corrosion resistance, support non-standard customization and supporting automatic Film Applicator.
HuiNuo
SZQ-190 5/10/15/20
-
MODERNER SZQ-160 Film Applicator Micron Scraper 30/60/90/120μm
Login -
QTG-A 125-200 4-sided Film Applicator YONGLIDA film thickness is 125/150/175/200μm
$ 165.00 -
HuiNuo KTQ-100 Adjustable Film Applicator scale differential head application width 100mm
$ 294.00 -
CHINA Double Sided Film Applicator QTG 300/400μm application width 80mm
$ 157.00 -
QTG 75-100 Double Sided Applicator YONGLIDA film thickness range 75/100μm
$ 134.00
Product Introduction

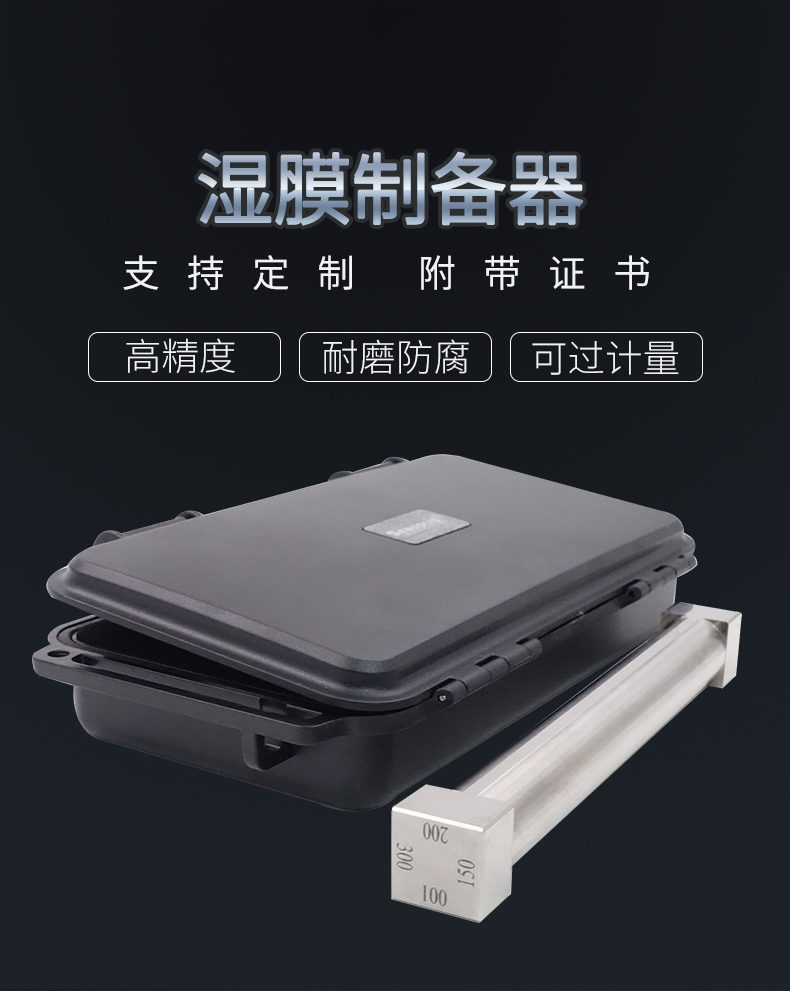

The four-sided applicator is an experimental coating device with an accuracy of ±2 microns, with two coating widths of 80 and 160mm, and is made of high-carbon-chromium wear-resistant stainless steel, which has good corrosion resistance. The wet film preparation machine will be tested for accuracy before leaving the factory, using imported three-coordinate testing, and with a factory testing data report, which can withstand measurement. SZQ four-sided film applicator is suitable for sample film proofing in resins, coatings, glues, new materials, polymer materials, and other fields. Support non-standard customization. It can also be equipped with laboratory automatic coating machine for automatic coating.
SZQ-100 450/500/550/700μm has a coating thickness of 450μm, 500μm, 550μm, and 700μm, and a coating width of 100mm, making it an extended four-sided prepper.
Product features:

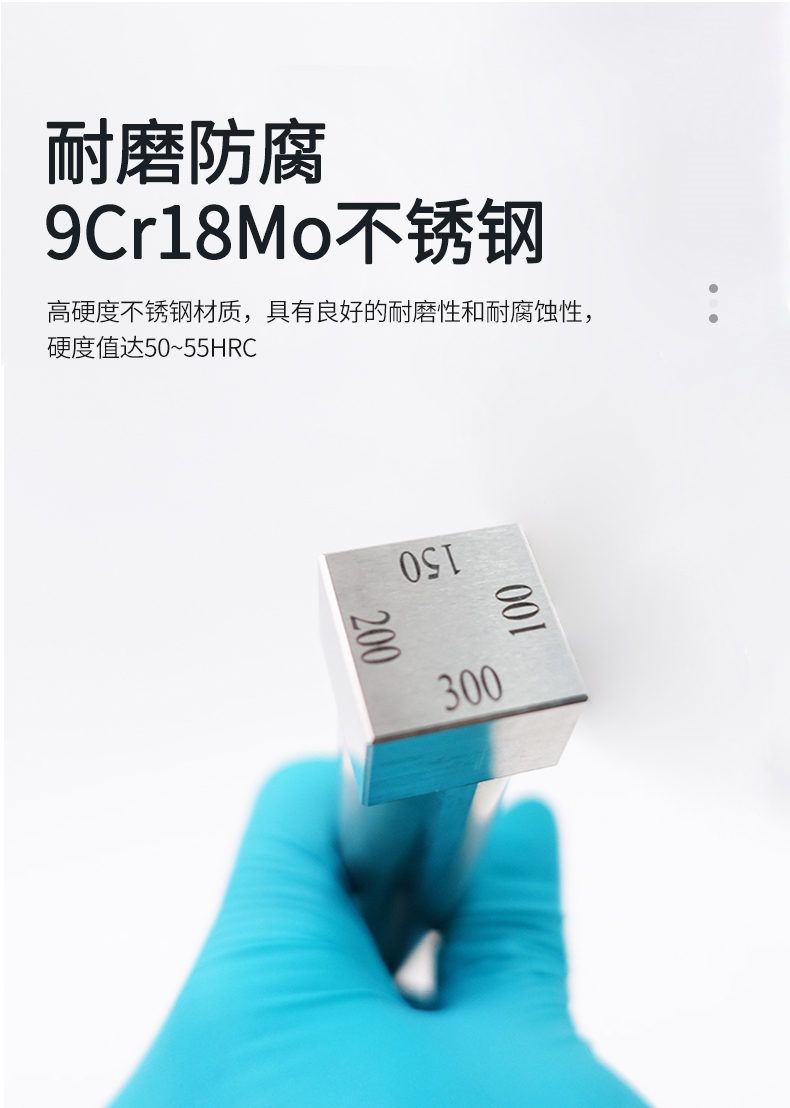

1. 9Cr18Mo high-hardness stainless steel, with good wear resistance and corrosion resistance, hardness value up to 50~55HRC.
2. The accuracy is up to ±2μm to ensure the accuracy of the experiment

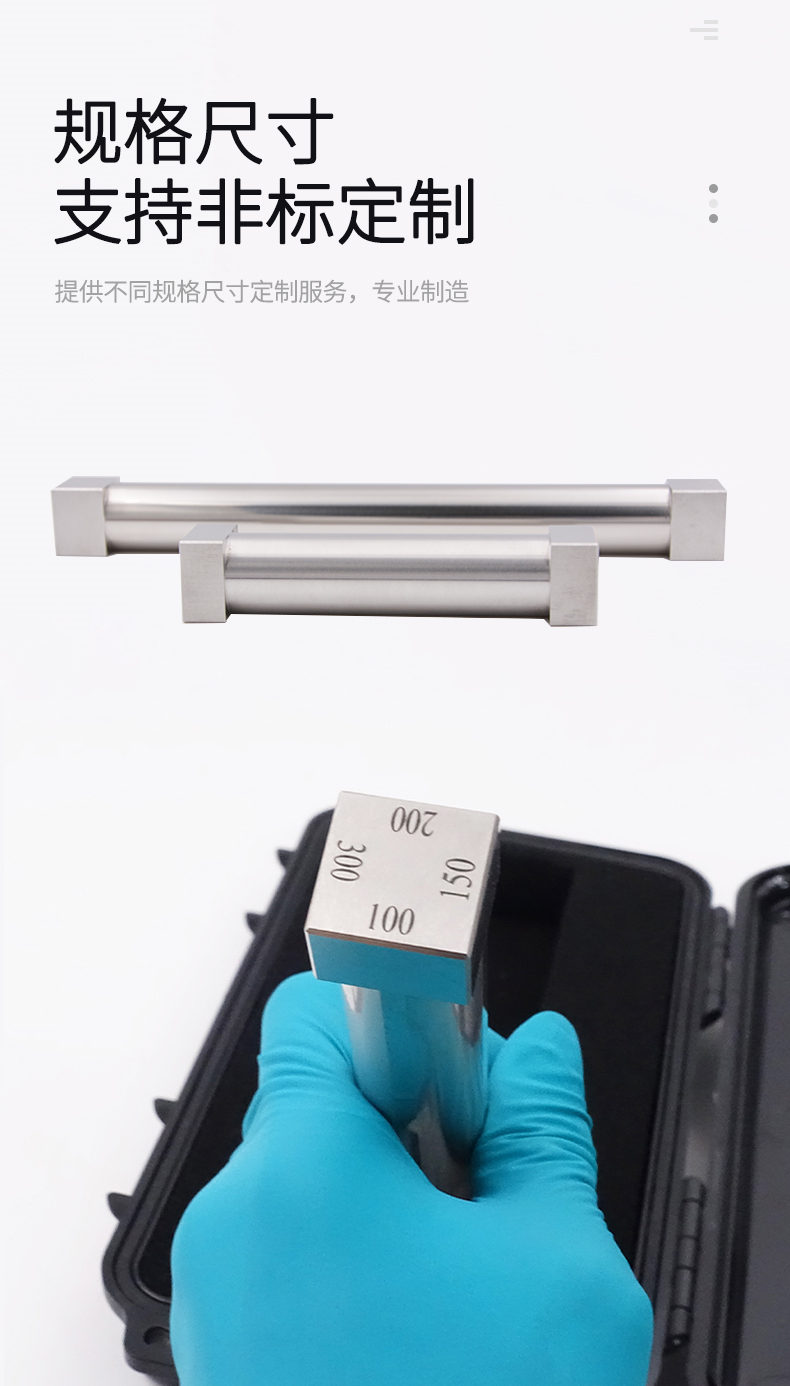

3. The surface is smooth, the style is diverse, the application range is wide, and customized specifications are supported

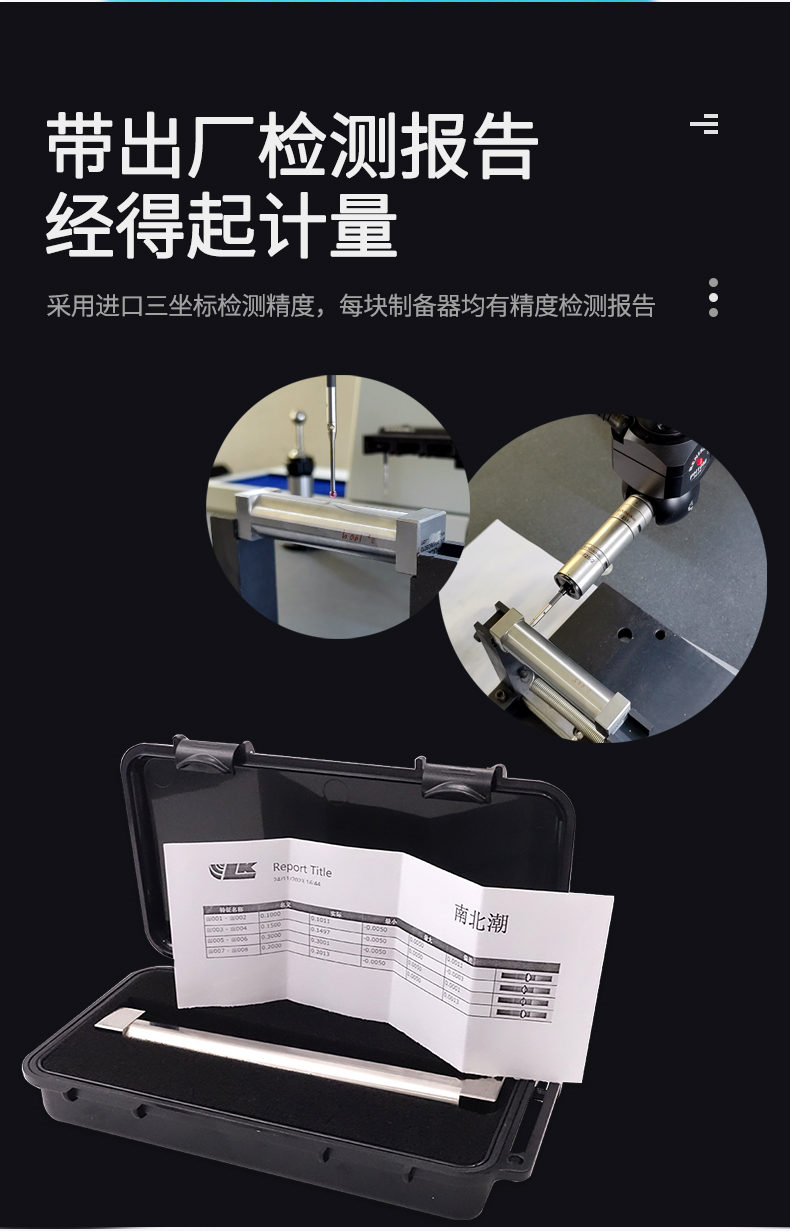

4. Adopt imported three-coordinate testing accuracy, bring factory test report, and stand up to measurement
Preparer series parameter table
| Name | Specification mm | Wet film thickness μm |
| Single-sided prep | The total length is 80, and the coating width is 50 and 75 | 50、75、100、125、150、175、200 |
| Duplex prep | Total length 100, coating width 80 | 25、50、75、100、150、175、200、300、400 |
| Frame preparer | Total length 90, coating width 80 | 30、50、60、90、120、150、200 |
| Eight-sided preparer | Total length 90, coating width 68 | 50、75、100、125、150、175、200 |
| Eight-sided preparer | Total length 100, coating width 80 | |
| Square preparer | 25x25, coating width 16 | 37、50、75、100 |
| Square preparer | 50x50, coating width 41 | 50、100 |
| Standard four-sided preparer | Total length 100, coating width 80 | All specifications and sizes support non-standard customization |
| Extended four-sided preparer | Total length 190, coating width 160 |
HuiNuo SZQ-190 5/10/15/20 4-sided ApplicatorSpecifications
| LIST | VALUE |
|---|---|
| type | 4-sided |
| wet film thickness | 5/10/15/20μm |
| Spreader Width | 190mm |
| accuracy | ±2μm |
| material | 9Cr18Mo stainless steel |
| total length | 200mm |
HuiNuo SZQ-190 5/10/15/20 4-sided Applicator Packing list
Applicator x1, test report X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
