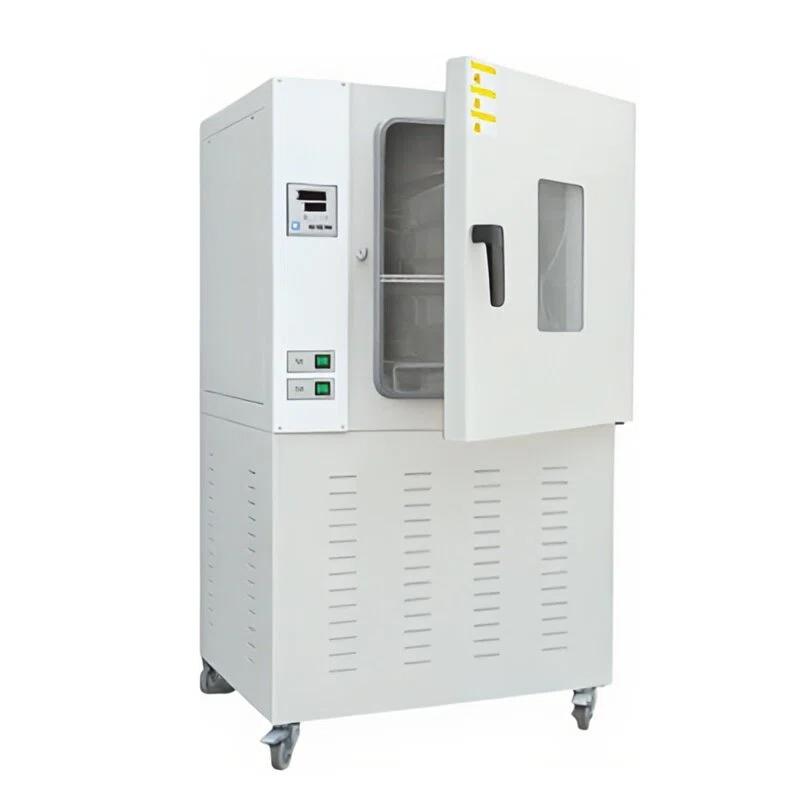

Shanghai Pein DHG-401AG Heat aging test chamber 200L volume, rubber (with turntable, 300 ℃)
Using High Accuracy Platinum Resistance Sensor and Fuzzy PID Control Technology, Temperature Fluctuation is only +/- 0.5 ℃, resolution is up to 0.1 ℃, and equipped with double-decked tempered Glass observation window to ensure safe and clear observation.
ShangHaiPeiYin
DHG-401AG
-
FARI FR-1220 Ventilation Conditioning Tester
$ 4723.00 -
HZAOC RLH-250 Hot Air Aging Oven, stainless steel liner swirl/spin sample holder
$ 4551.00 -
YIHENG BHO-401A aging Test Chamber
$ 1609.00 -
HZAOC RLH-150 Hot Air Aging Oven, Ventilated Air Oven stainless steel turret
$ 4034.00 -
CHINA DHG-401A aging Test Chamber 1500W/200 ℃
$ 536.00
Product features:
The temperature control system of high-performance CPU processing chip and high-sensitivity, high-precision platinum resistance sensor makes the temperature control more accurate and more convenient to operate.
It has sensor fault alarm, over-temperature alarm, self-diagnostic dynamic control, temperature display correction, parameter memory and timing functions up to 9999 minutes.
The shell made of high-quality cold-rolled steel plate adopts phosphating electrostatic spraying technology, which is more durable to use and more convenient to clean.
CCC-certified double-layer tempered glass viewing window, safer, and clearer samples in the viewing box.
Product Use:
It is used for industrial and mining enterprises, laboratories and scientific research units for aging, drying, baking, waxing, and sterilization.
ShangHaiPeiYin DHG-401AG Heat aging test chamberSpecifications
| LIST | VALUE |
|---|---|
| volume | 200L |
| Working environment temperature | Environment temperature 5~ 30 ℃ relative humidity ≤ 80% altitude ≤ 2000m power supply AC220V + 10% 50Hz +/- 1Hz |
| way of working | Liquid Crystal Display, Push-button, Fuzzy PID Control Technology Microprocessor Diffusion Control High Accuracy Platinum Resistance Sensor Forced Circulation Convection Channel, Up to 0~ 9999 minutes |
| temperature | / |
| control range | RT+10-300℃ |
| resolution | 0.1℃ |
| volatility | ±0.5℃ |
| alarm | sV +/- 5 ℃ (factory value) |
| Miscellaneous | / |
| power consumption | 2000W |
| rotational speed | 15r/min |
| Internal material | 304 stainless steel |
| external material | 08F Cold rolled steel plate |
| Internal dimensions | 500x580×700mm |
| External dimensions | 730x640x1250mm |
ShangHaiPeiYin DHG-401AG Heat aging test chamber Packing list
host X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
